Chapter 9 Installation and Wiring
9-
ేే
9.2.4 Cable Specifications for wiring

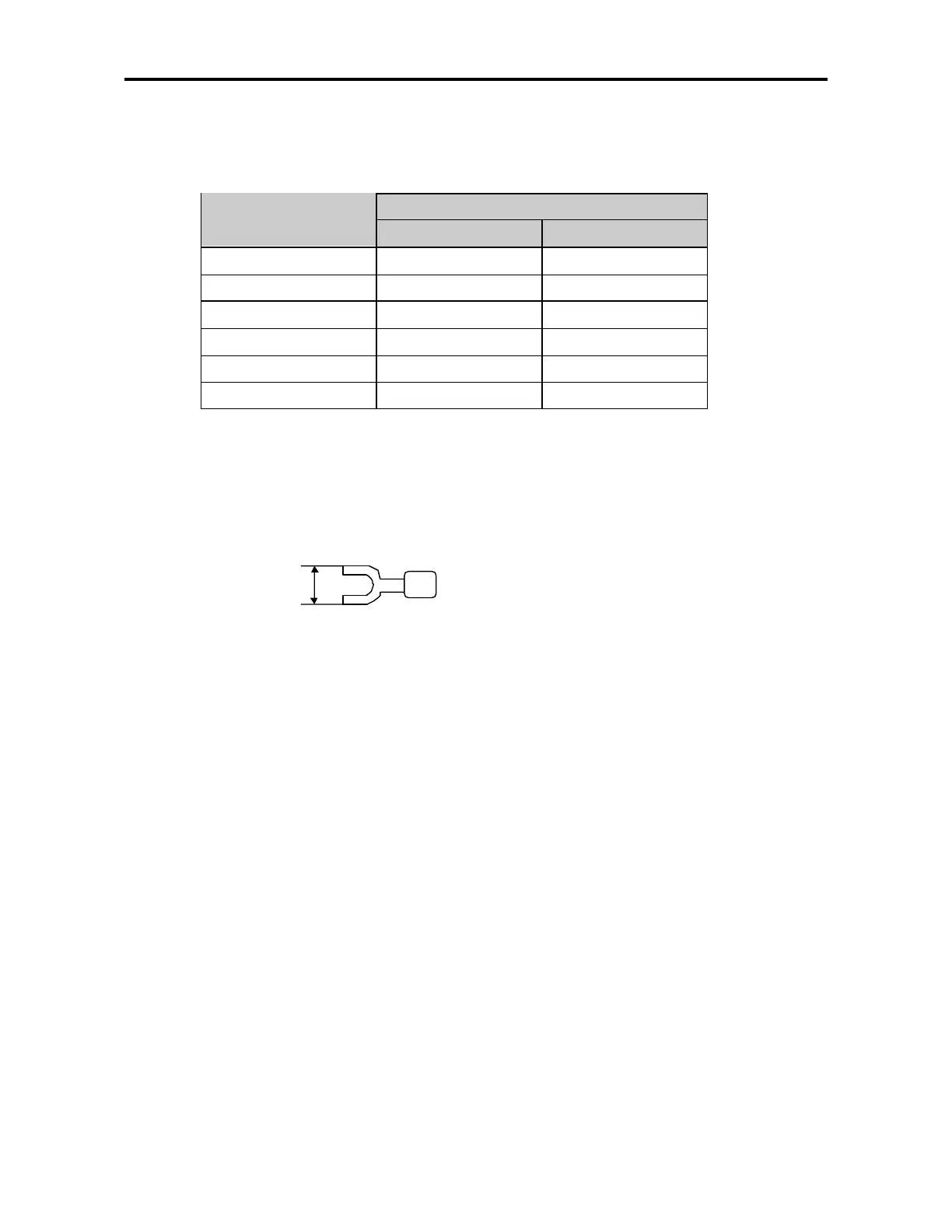

The specifications for wiring is as follows:
Cable Specifications (
㎟
)
Kinds of external connection
Minimum Maximum
Digital Input 0.18 (AWG24) 1.5 (AWG16)
Digital Output 0.18 (AWG24) 2.0 (AWG14)
Analog Input / Output 0.18 (AWG24) 1.5 (AWG16)
Communication 0.18 (AWG24) 1.5 (AWG16)
Main power 1.5 (AWG16) 2.5 (AWG12)
Grounding 1.5 (AWG16) 2.5 (AWG12)
•
Be sure to use solderless terminal for power supply and I/O wiring.
•Be sure to use M3 type as terminal screw.
•Make sure that terminal screw is connected by 6
9
Ꭰᇾ᎗
torque..
•Be sure to use fork shaped terminal screw as shown below.
6.2mm less than
cable solderness terminal (fork shaped)
