IMO Precision Controls K7 Series User Manual

Chapter 7 Usage of Functions
7-
６０

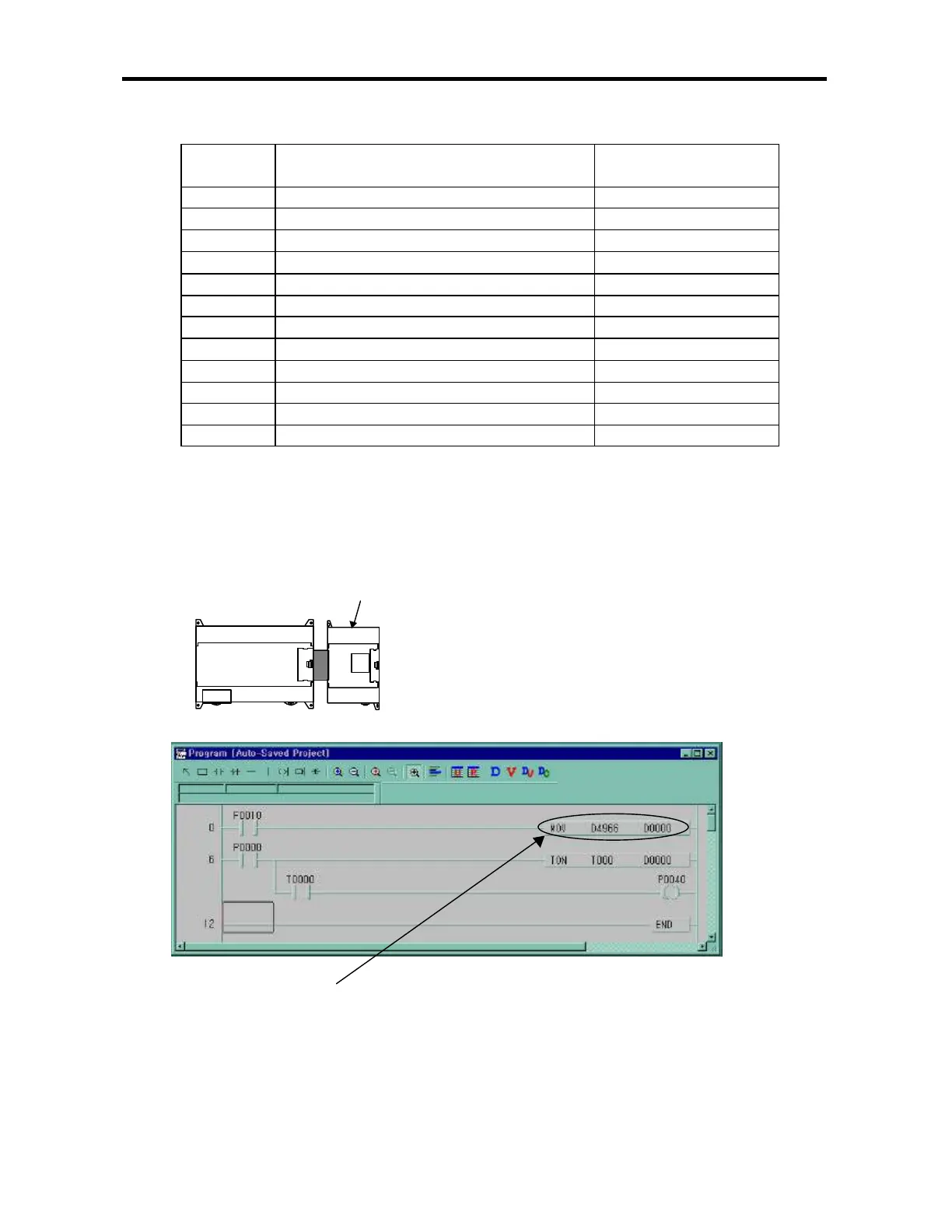

3) Reading A/T conversion value
A/T conversion value stores special data register as following.
Special data
register
Explanation remark
D4966 A/T conversion value of channel 1 stores Expansion A/T module #1
D4967 A/T conversion value of channel 2 stores Expansion A/T module #1
D4968 A/T conversion value of channel 3 stores Expansion A/T module #1
D4969 A/T conversion value of channel 4 stores Expansion A/T module #1
D4970 A/T conversion value of channel 1 stores Expansion A/T module #2
D4971 A/T conversion value of channel 2 stores Expansion A/T module #2
D4972 A/T conversion value of channel 3 stores Expansion A/T module #2
D4973 A/T conversion value of channel 4 stores Expansion A/T module #2
D4974 A/T conversion value of channel 1 stores Expansion A/T module #3
D4975 A/T conversion value of channel 2 stores Expansion A/T module #3
D4976 A/T conversion value of channel 3 stores Expansion A/T module #3
D4977 A/T conversion value of channel 4 stores Expansion A/T module #3
4) Program example
(1) Program explanation
Program which controls on-delay time of output contact point within 0 to 20 sec. By analog timer module.
(2) System configuration
Base Unit Analog timer module
(3) Program
A/T conversion data is moved D000 always
