IMO Precision Controls K7 Series User Manual

Chapter8 Communication Function
8-34

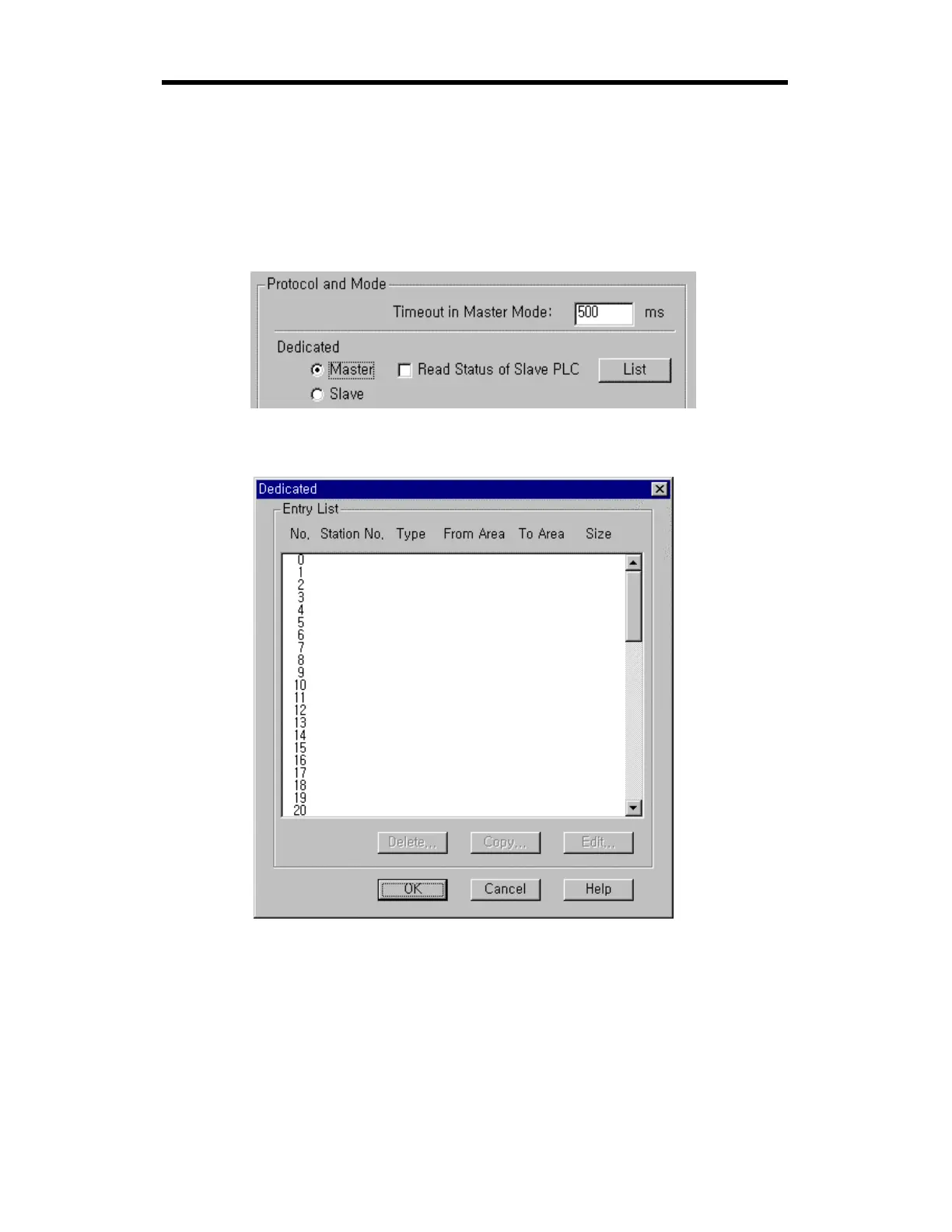

(2) Setting registration list
N If you click 'master' from 'exclusive use' in 'protocol and sending mode,' 'List' button will be
activated.
N Click the button to open the registration list window.
(3) Total 64 data blocks can be assigned. But it's not possible to set a register number.
(4) Sending and receiving data size can be set up to 60 WORDs. There's no cycle for sending
and receiving.
N Setting device area
-Sending : reading device area P,M,L,K,T,C,D,S,F saving device area : P,M,L,K,T,C,D,S
-Receiving: reading device area P,M,L,K,T,C,D,S,F saving device area : P,M,L,K,T,C,D,S
