Chapter 8 Communication Function
8-49

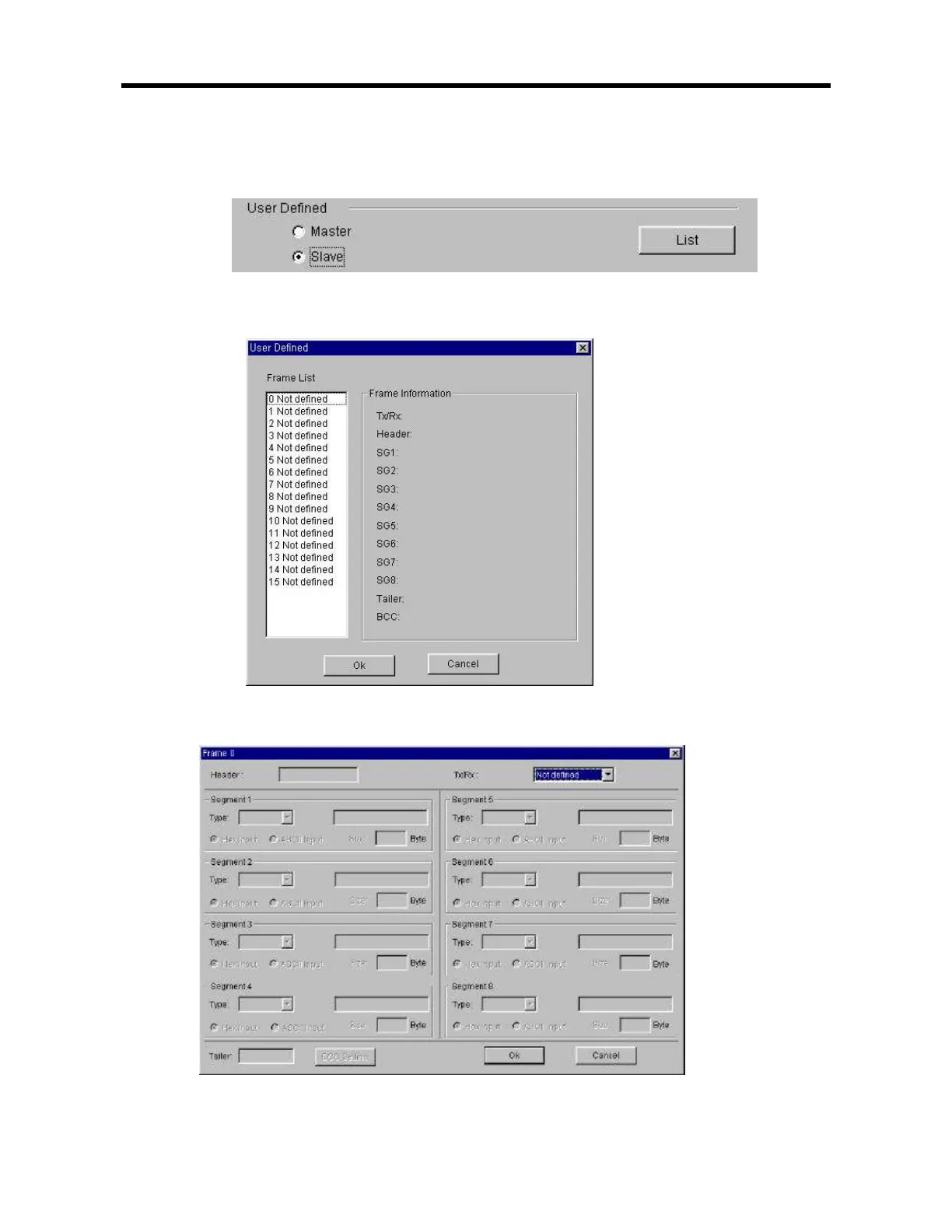

2) Setting frame
(1) Select one out of user defined terms of protocol and mode in communication parameter, registration “ List” button is
activated.
(2) Click“ List” button to activate the following window.
(3) Select one of 1
௥
15 in frame list to open the following window.
