Chapter 9 Installation and Wiring
9-
ో
2) Mounting instructions
The following explains instructions for mounting the PLC onto the control panel.
(1) Allow sufficient distance from upper part of the Unit for easy module replacement and ventilation.
Especially the distance between the left side of the basic unit and the control panel should be 100
㎜
or more for periodic battery replacement.

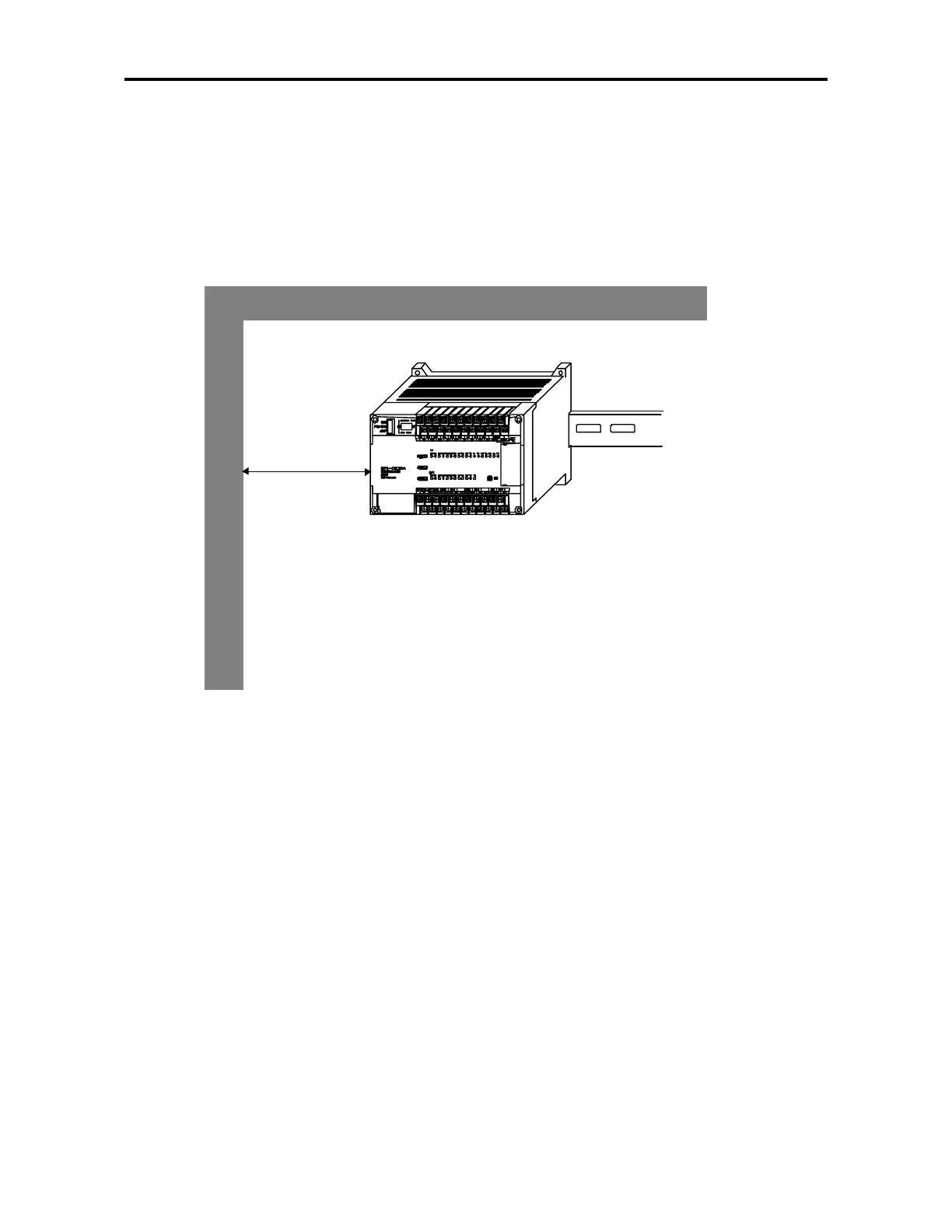

(2) Make sure that K7 is installed in fig 9.1 for most effective heat radi ation.
[ fig 9.1 ]
(3) Do not mount the base board together with a large-sized electromagnetic contact or
no-fuse breaker, which produces vibration, on the same panel. Mount them on
different panels, or keep the unit or module away from such a vibration source
100mm
