Chapter 6 Input and Output Modules
6-
６

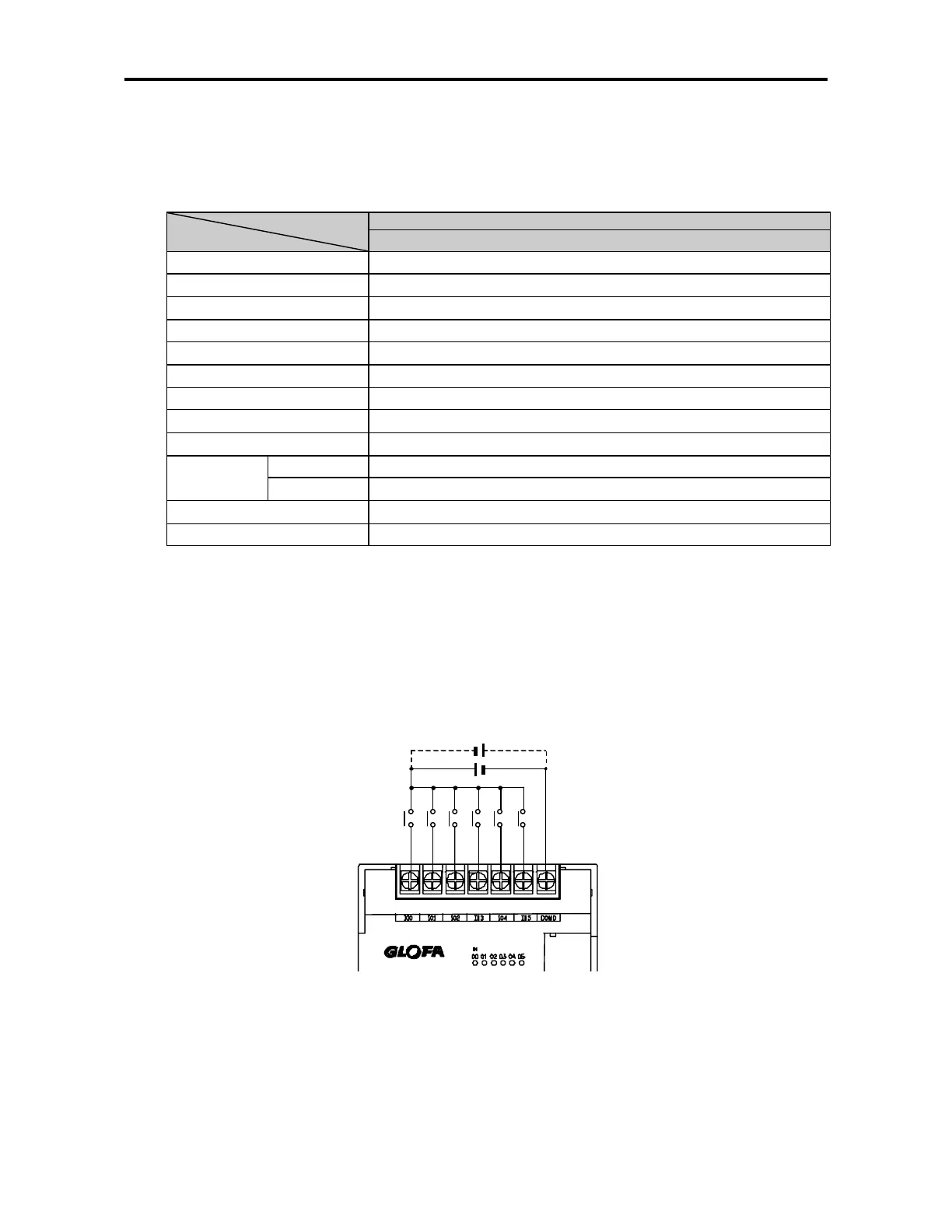

6.2.2 Expansion Module
1) Specifications
Expansion ModuleModel
Specification
G7E-DR10A
Number of input points 6 points
Insulation method Photo coupler
Rated input voltage DC24V
Rated input current 7 mA
Operating voltage range DC20.4 ~ 28.8V (ripple: less than 5%)
Max. Simultaneous input points 100% simultaneously On
On voltage / On current DC15V or higher/ 4.3 mA or higher
Off voltage / Off current DC5V or lower / 1.5 mA or lower
Input impedance Approx. 3.3 kΩ
Off → On 15ms or less *
ሀ
Response time
On → Off 15ms or less *
ሀ
Common terminal 6 points / com
Operating indicator LED turns on at ON state of input
*
ሀ
: It’ s possible to select from 1ms to 15ms by 1ms at KGLWIN.
2) Circuit diagram
It’ s the same with the one for the base unit.
3) Input wiring
DC24V
To Next Page
