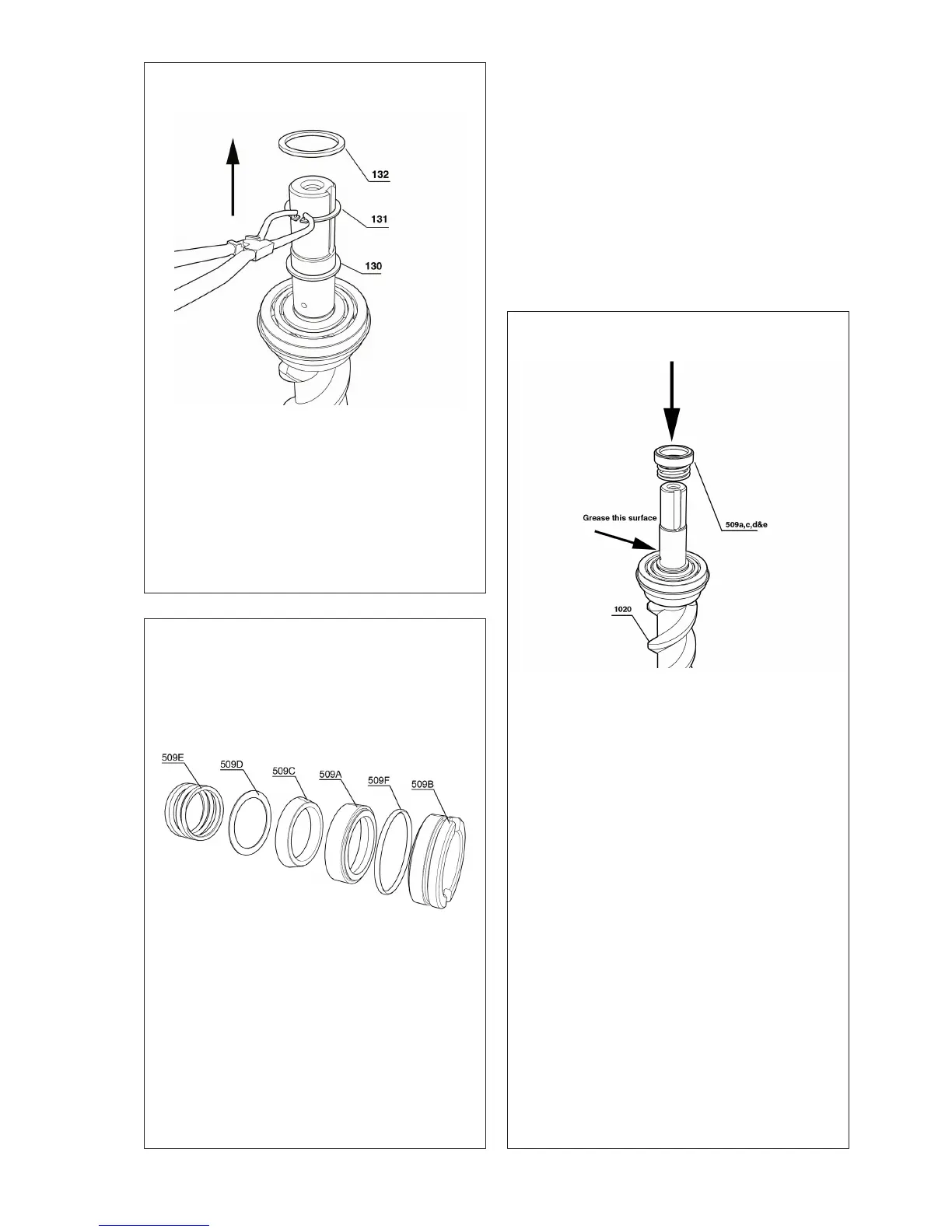

• Slide on the rotating parts of the mechanical
sha seal on the power rotor as shown above,
grease the surface thoroughly on the power ro-
tor as this prevents damage to the seals rubber
details when mounting it.
• Lubricate the seal face on the seat 509a with
grease. We recommend grease of ”Graphite”
or”Molybdendisulphite”type.
NOTE: It is verimportant that the mechanical seal
are handled with care and cleanliness is to be
considered as crucial.
D.
• Mount the washers 130 and 132 together with
the circlip 131.
E.
• Complete mechanical sha seal
