Dismantling
A.

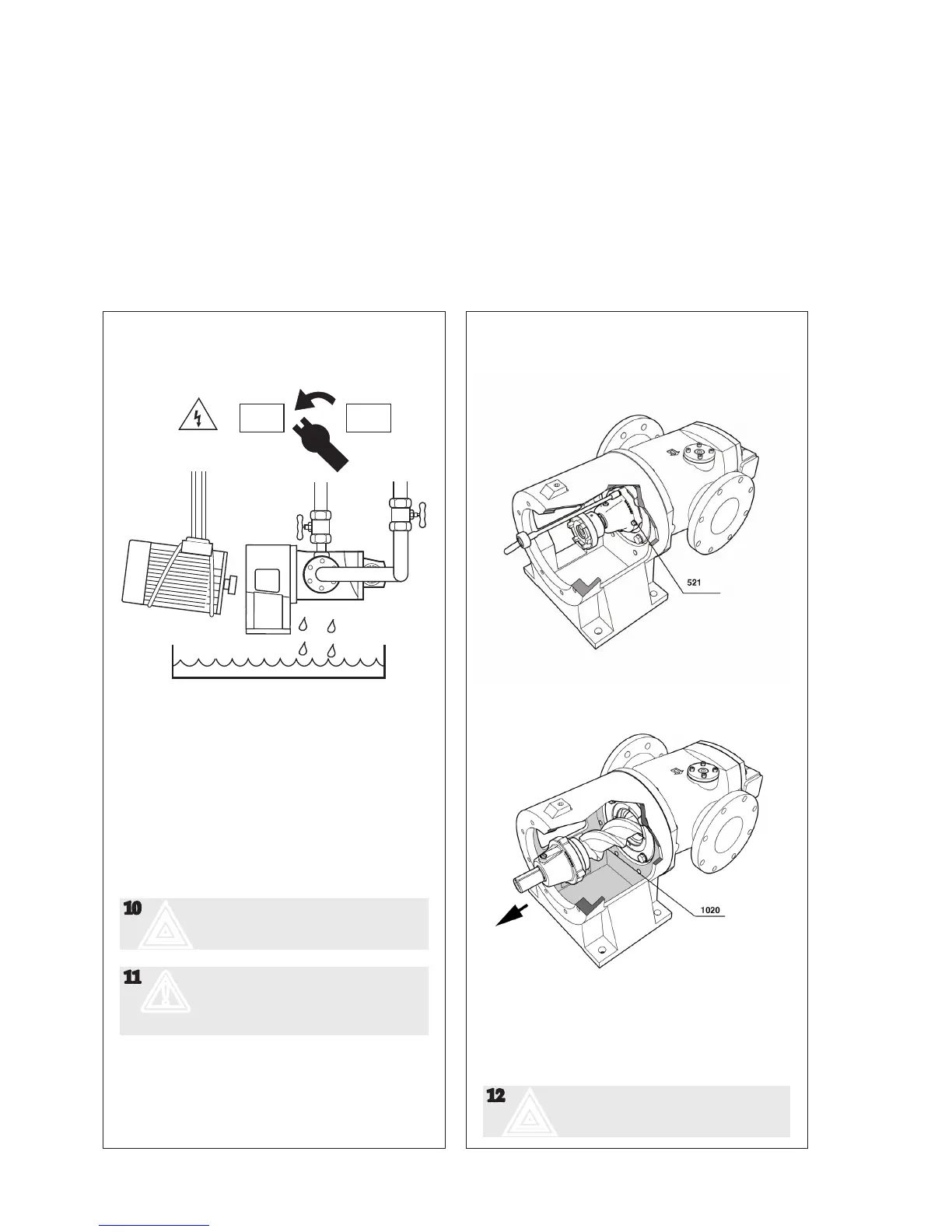

For most installations repair can be done with the
pump in place by removing the motor.
• Turn the electricity OFF.
• Close the valves.
• Disconnect the electric motor.
• For horizontal installation drain the pump by
loosen screws 453 3-4 turns and loosen 480
valve housing.
10
;
Use appropriate vessels to collect oil
spillage when operating the pump
11
m
Pump and/or motor should be lied
with straps securely so that the
centre of gravity is located in order
to avoid tipping
B.
• Loosen and remove screws 521
• Pull out the power rotor 1020 with the help of
coupling half or an eye bolt ed in the power
rotor
12
;
Be careful when the threaded part of
the rotor passes the bore in the cover
