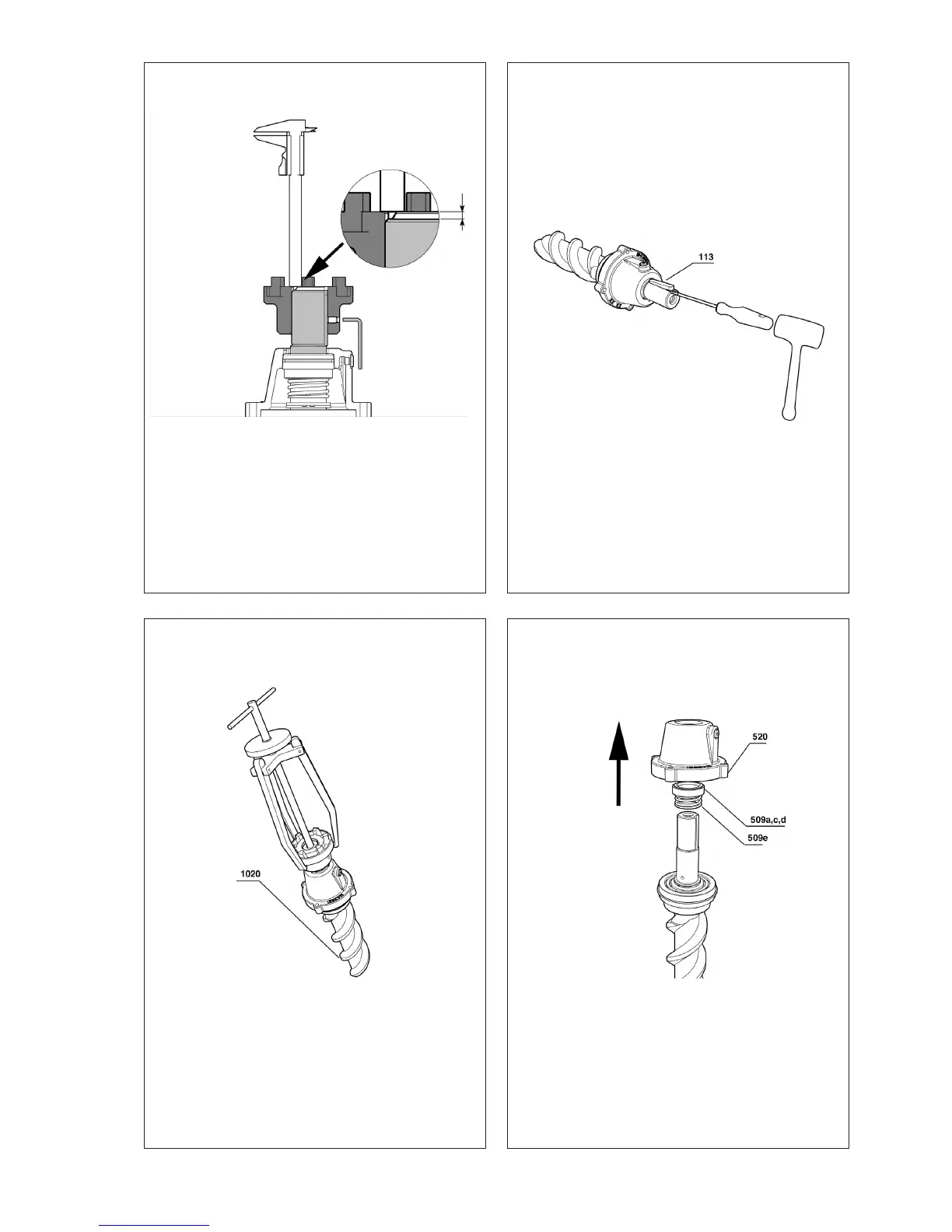

• Remove the key 113
C.
• Note the axial posistion of the coupling half
• Release the stop screw
F.
• Pull the cover 520 upwards
• Carefully slide the rotary sha seal parts 509 a,
c, d, e upwards.
D.
• Remove the coupling half with a puller
