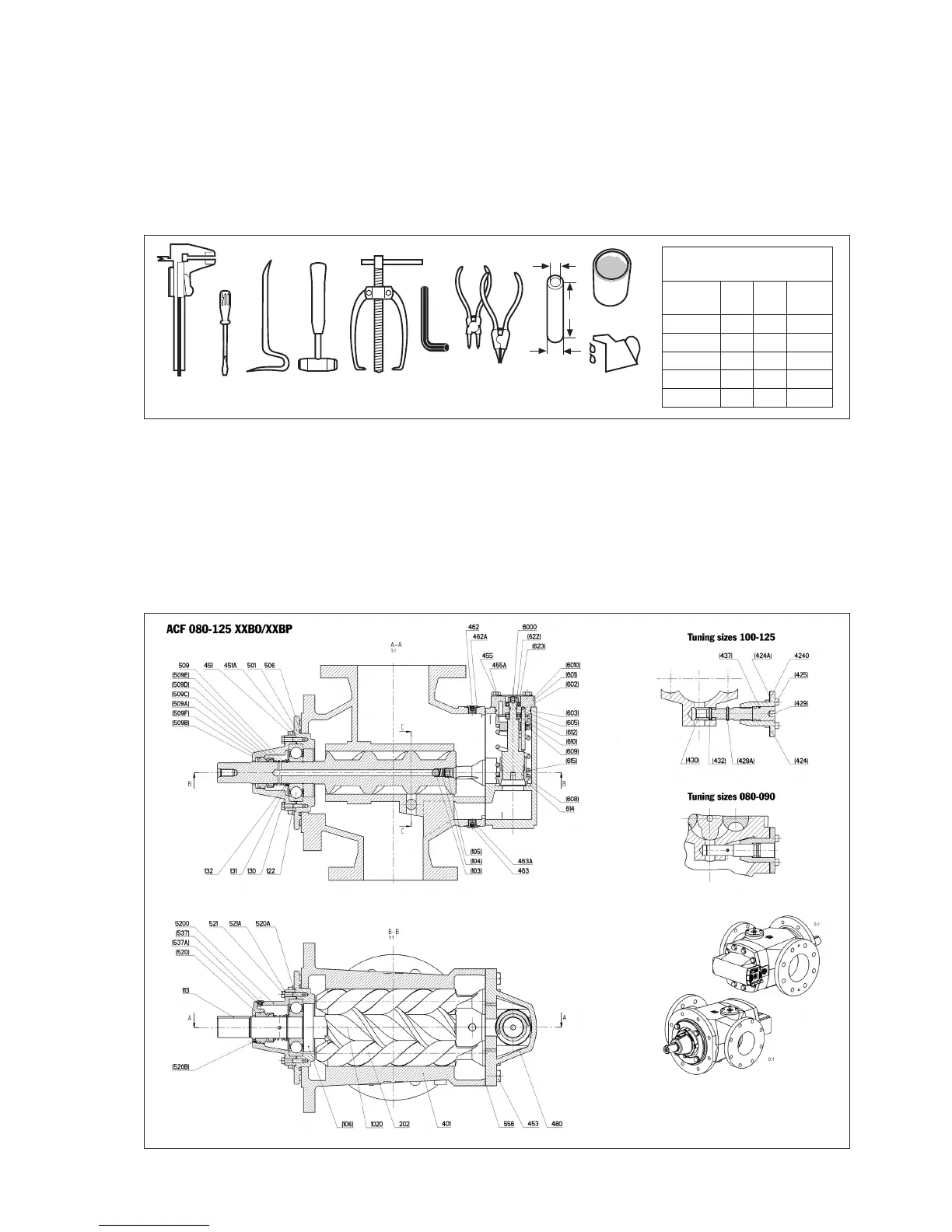

IMO ACF5 - Dismantling and Reassembling the Pump; List of Tools Necessary for Dismantling and Reassembly; Sectional View

ACF5 0601.01 GB
www.imo.se
7
ACF 5 © IMO AB
d
D
GREASE
L
A B C D E F G H I
List of tools necessary for dismantling and reassembly
A = Slide calliper
B = Screw driver
D = Crow bar
E = Plastic mallet
F = Puller
G = Allen key
H = Pairs of pliers
I = Mounting sleeve
J = Oil can
Sectional View
Dismantling and reassembling the pump
Mounting sleeve
dimensions (mm)
Pump
size d L D
080 46 155 62 ±3
090 46 155 62 ±3
100 66 180 85 ±4
110 66 180 85 ±4
125 66 180 85 ±4
