Electrical & Lighting 100 Section - 5
4004i - Manual # 99904386
Protective Sleeve Installation (70034573)
AMG FUSE HOLDERS REQUIRING PROTECTIVE SLEEVE
PART NO. DESCRIPTION
77041593 FUSE HOLDER-AMG 1 POS W-COVER HMG-221
77441116 FUSE HOLDER-AMG 1 POS W-COVER FMG-211
77040714 FUSE HOLDER-AMG AND MEGA 500 AMP W/COVER

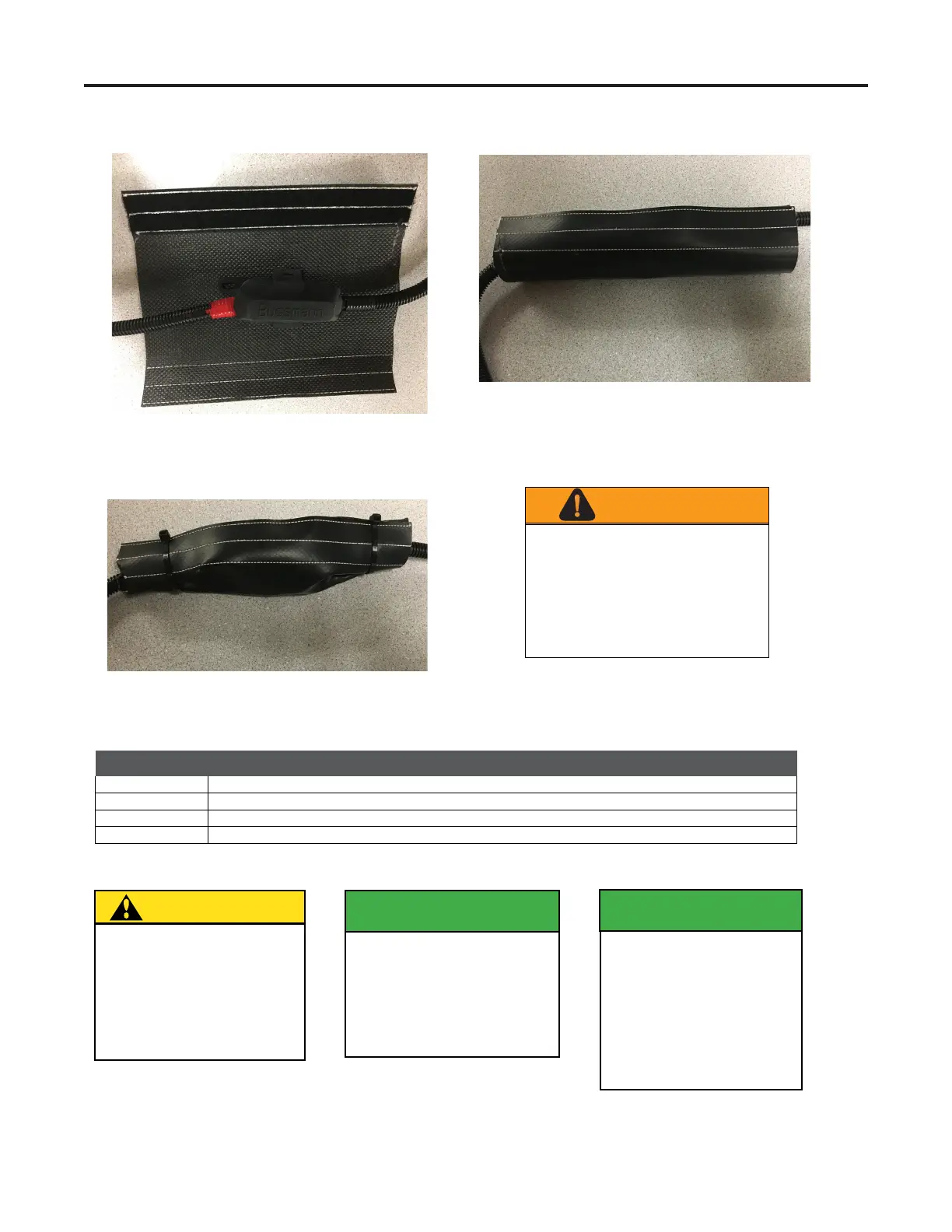

Step 1: Place the protective sleeve
under the fuse holder, centering the
holder with the protective sleeve.
Step 2: Securely wrap the two ends of
the protective sleeve together making
sure velcro is sealed on the top side
of the front jump start plug holder.
Step 3: Securely zip tie both ends of
the protective sleeve.
Follow your company’s Lock-
Out/Tag-Out procedures to
prevent the truck from being
started or moved while per-
forming work on this crane. If
your company does not have a
Lock-Out/Tag-Out procedure,
follow OSHA 1910.147, Lock-
Out/Tag-Out.
SAFETY NOTICE
Use appropriate Personal
Protective Equipment (PPE) as
required by your company. Read
and understand the following
instructions found within this
document prior to starting work
on the chassis.
SAFETY NOTICE
CAUTION
AVOID POSSIBLE FIRE!
Visually inspect and verify no other
fuse holder posts are coming in con-
tact with the chassis. The contact of
a fuse to a grounded structure can
cause a potentially dangerous short
circuit. Failure to inspect and verify
the fuse holder posts could result
in a fire.
WARNING
For trucks without a battery disconnect switch,
to prevent accidental vehicle start-up, which
could cause death or serious injury
battery cables (negative cable first) before
proceeding. Disconnect negative (-) battery
cable first, if positive (+) cable should contact
ground with negative (-) cable connected, the
resulting sparks can cause a battery explosion,
which could result in death or serious injury.
