Specications 10 Crane Reference
4004i - Manual # 99904386

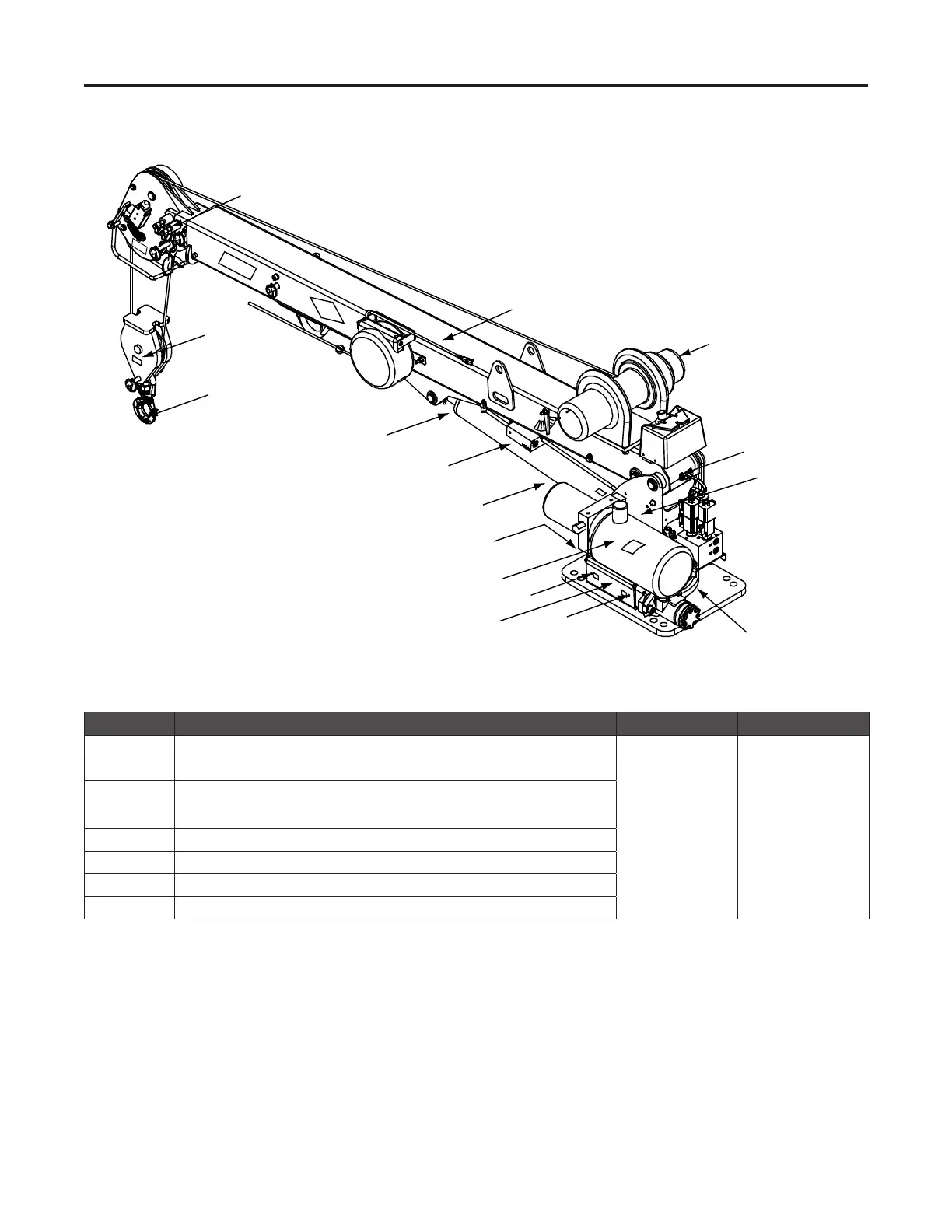

Assemblies & Grease Zerk Locations
ITEM NO. LOCATION DESCRIPTION LUBRICANT FREQUENCY
1 LOWER CYLINDER ROD
SHELL
ALVANIA 2 EP
OR
SHELL
RETINAX “A:
WEEKLY
2 LOWER CYLINDER BASE
3
GEAR ROTATOR GREASE EXTENSION
*ROTATE CRANE WHILE GREASING.
4 POWER UNIT
5 POWER UNIT
6 LOWER BOOM PIN
7. SNATCH BLOCK
NOTE:
All application points must be greased weekly under normal workloads and moderate weather condi-
tions. Under severe operating conditions, lubricate more frequently. See the IMT Electric Crane Opera-
tion & Safety manual P/N: 99905190, for additional lubrication requirements.
NOTE:
Image may be di󰀨erent depending on production date. Grease points should be identical.
4
5
LOWER
CYLINDER
3
6
CRANE
BASE
WINCH
SNATCH
BLOCK
MAST
POWER
UNIT
LOWER
BOOM
EXTENSION
BOOM
HOOK
2
1
HYDRAULIC
RESERVOIR
