99903514:TELESCOPIC CRANE: 5-11
SECTION 5: DECALS

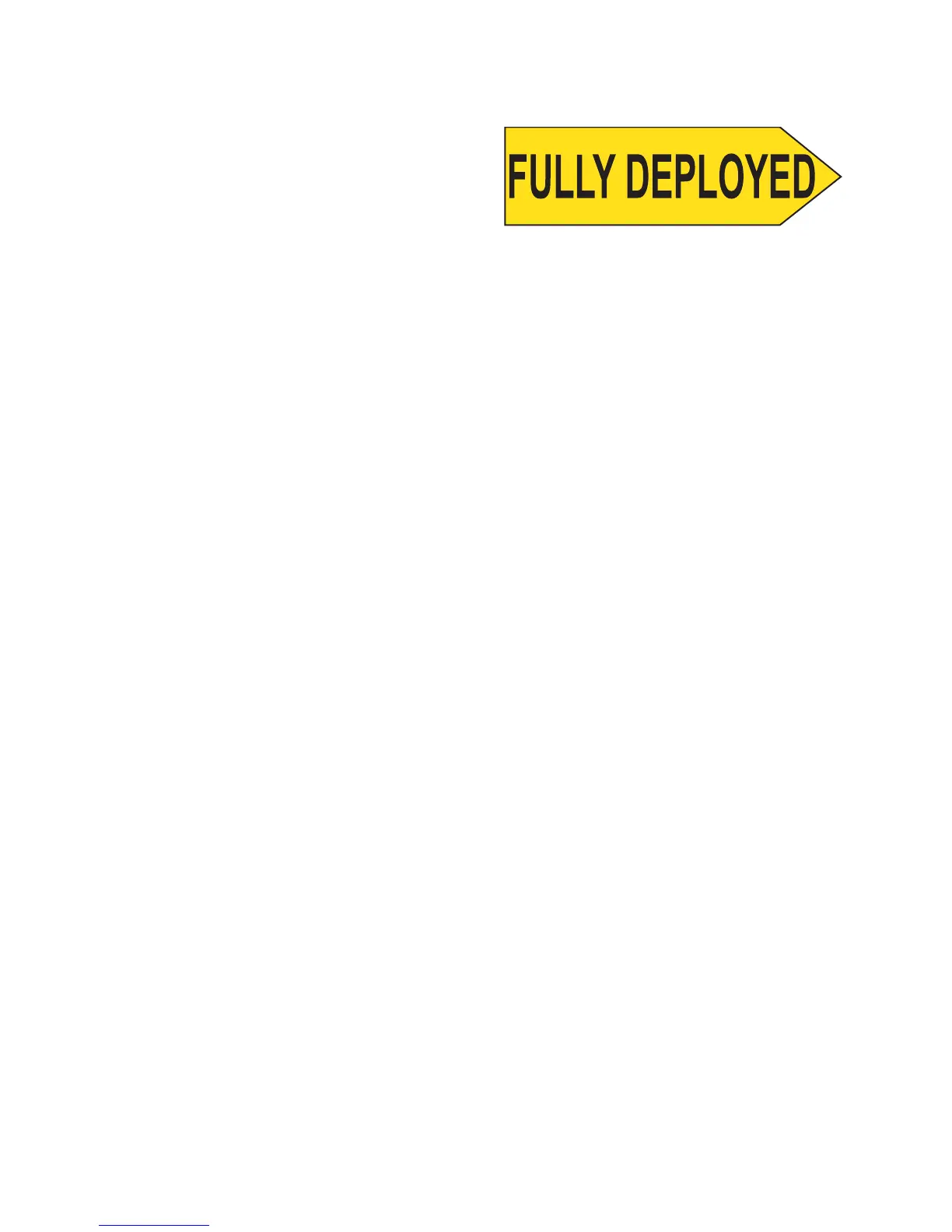

Figure E-36
DECAL: Stabilizer - Fully Deployed
PART NUMBER: 70399271
FUNCTION: To inform operator when the stabilizer
arm is fully deployed (extended). When the stabilizer
arm is fully extended, this decal will be completely
visible.
USED ON: All cranes with stabilizers which extend
out.
PLACEMENT: On the top of the stabilizer arm when
fully deployed.
QUANTITY: 1 per stabilizer which extends out.
70399271
20120105
