99903514: TELESCOPIC CRANE: 1-10 SECTION 1: OPERATION
1-7-1: REDUCED CAPACITY (RCLC)
In some cases, the capacity of a crane is
reduced when lifts are performed on the sides
of the truck. If your vehicle cannot lift full capaci-
ties when the crane is positioned on the side of
the truck, you will see a Reduced Capacity Lift
Chart on your vehicle. This chart uses a green,
yellow,and red color-coding system to show you
the level of capacity the crane can lift when the
crane is positioned in various sectors. The
color-coded Reduced Capacity Lift Chart
(RCLC) corresponds to a visual indicator on the
base of the crane, and displays the percentage
of the full hydraulic crane capacity to be lifted in
each sector.
If applicable, an RCLC chart will be mounted on
the inside of the panel door in place of the
standard capacity chart.
Maximum 1 part line is 5500 lb (2494 kg).
Values in the box denote
the use of 2 part line.
XXXX lb
XXXX kg
IOWA MOLD TOOLING CO., INC.
BOX 189, GARNER, IA 50438-0189
TEL: 641-923-3711 FAX: 641-923-2424
REDUCED CAPACITY PLACARD
60
120
90
CAB
80% OF
CAPACITY CHART
PERMITTED
LIFTING NOT
PERMITTED IN
THIS AREA
80% OF
CAPACITY CHART
PERMITTED
100% OF CAPACITY
CHART PERMITTED
(INCLUDES TRUCK BED AREA)
TRUCK
BED
BASED UPON THE FINAL INSTALLED PACKAGE, THIS CRANE CANNOT LIFT FULL HYDRAULIC
CAPACITY THROUGHOUT THE ENTIRE CRANE ROTATION. REFER TO THE DIAGRAM BELOW
ALONG WITH THE HYDRAULIC CAPACITY CHART TO DETERMINE THE MAXIMUM LIFT ALLOWED
FOR VARIOUS ROTATIONS. TO DETERMINE THE EXACT ROTATION, REFER TO THE INDICATOR ON
THE BASE OF THE CRANE AND THE COLOR CHART BELOW. FAILURE TO FOLLOW CAPACITY
RESTRICTIONS MAY CAUSE SERIOUS INJURY OR DEATH.
CENTERLINE
25’
20’
15’
10’
26’-7"
2’-2"
0
6’-6"
(1.98m)
3’-7"
(1.09m)
9’-0"
(2.74m)
15
45
60
75
18’-10"
(5.74m)
12’-4"
(3.75m)
16’-2"
(4.92m)
22’-8"
(6.90m)
25’-4"
(7.72m)
5’
(4.57m)
(0.66m)
(1.52m)
(3.04m)
(6.09m)
(7.62m)
(8.10m)
3185
(1445)
5515
(2502)
5630
(2554)
7400
(3357)
8990
(4078)
5810
(2635)
10,500
(4763)
6290
(2853)
4625
(2098)
3155
(1431)
2600
(1179)
2105
(955)
1840
(835)
6300
(2858)
7760
(3520)
3635
(1649)
4075
(1848)
4930
(2236)
2815
(1277)
3870
(1755)
3330
(1510)
2715
(1232)
2400
(1089)
4990
(2263)
3580
(1624)
2960
(1343)
2400
(1089)
2100
(953)
3990
(1810)
4460
(2023)
30

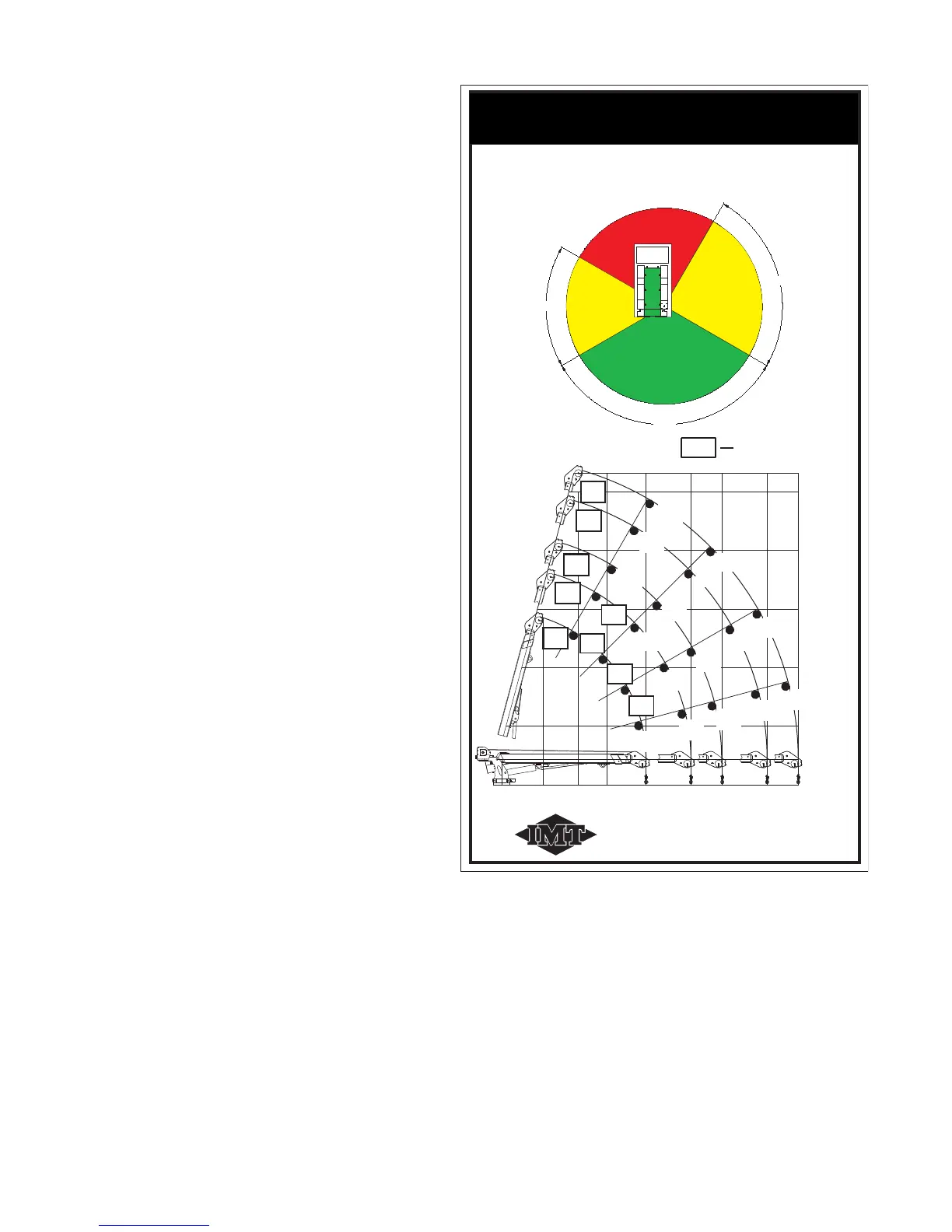

Figure A-11: Sample Reduced Capacity Placard
20030115
