IMT 3820

99903514:TELESCOPIC CRANE: 4-14
SECTION 4: INSTALLATION
WASHER 1"
(16 PLACES)
CAP SCREW 1.0-8x3.0
(8 PLACES)
3.31"
(8.4 cm)
MOUNTING HOLES AS VIEWED
FROM THE TOP OF THE CRANE
14.75"
(37.5 cm)
6.87" TYP
(17.4 cm)
7.38" TYP
(18.7 cm)
14.75"
(37.5 cm)
6.44"
(16.4 cm)

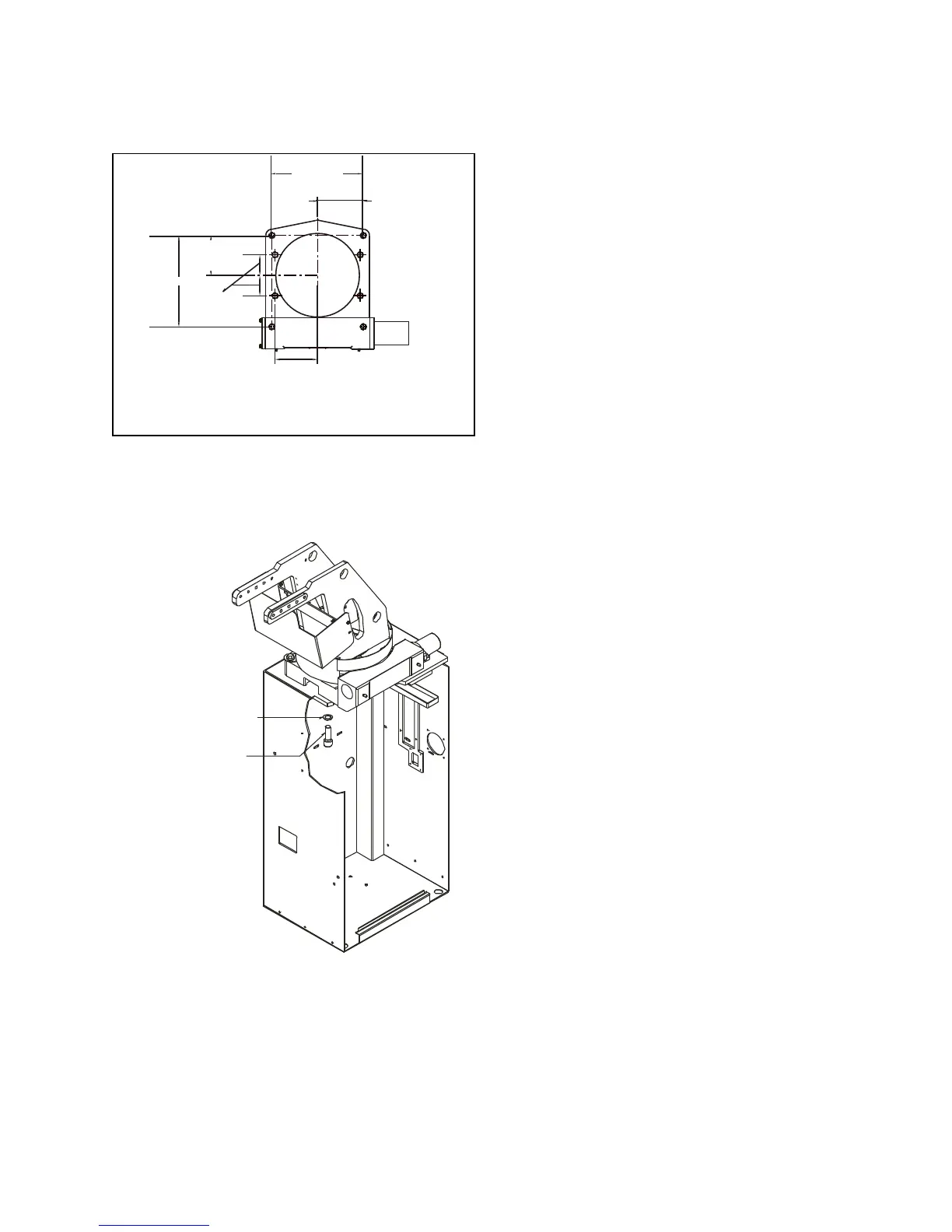

MOUNTING HOLE LAYOUT
CRANE INSTALLATION
MOUNTING HOLE LAYOUT AND CRANE INSTALLATION DRAWINGS - 5525, 6025,
AND 6625 MODEL CRANES
20030115
