IMT 4004i Parts & Specifications

Specications 14 Crane Reference
4004i - Manual # 99904386
16,17
15,17
(SEE
NOTE)

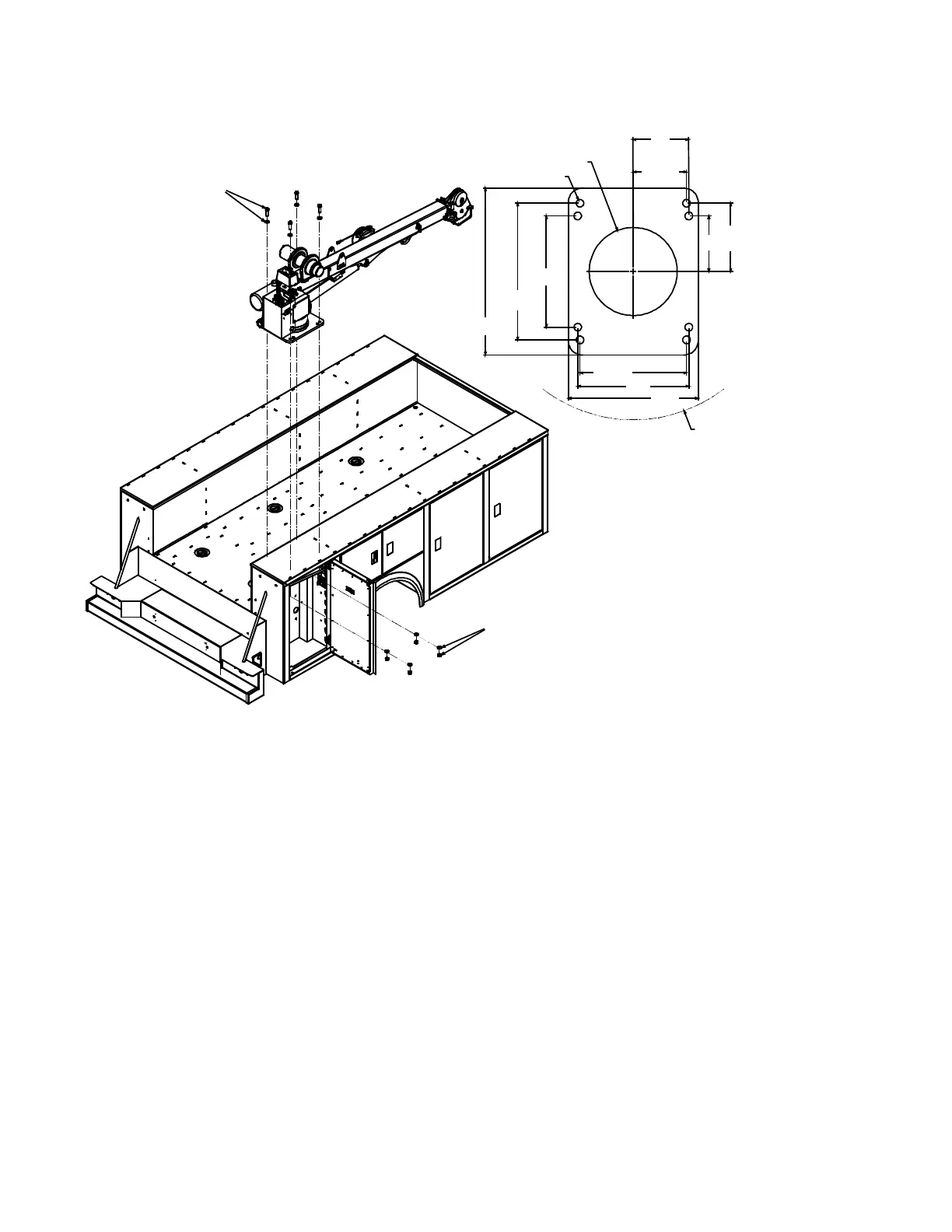

MOUNTING HOLE PATTERN
ALLOW 16"
RADIUS FOR
SWING CLEARANCE
18"
14.75"
12"
0.81" DIA.
9.5" DIA.
6"
5.75"
6"
7.38"
11.5"
12"
14"
CRANE INSTALLATION - CONTINUED
NOTE:
The 3/4-10 x 2.5” grade 8 zinc coated capscrews are designed for a crane box thickness of 1/2” only. A di󰀨erent
crane box may require di󰀨erent capscrews. All mounting capscrews must be grade 8 zinc coated with a minimum
thread engagement of 1.25” (3.175 cm).

IMT 4004i Specifications

General

Brand	IMT
Model	4004i
Category	Construction Equipment
Language	English
