4004i - Manual # 99904386

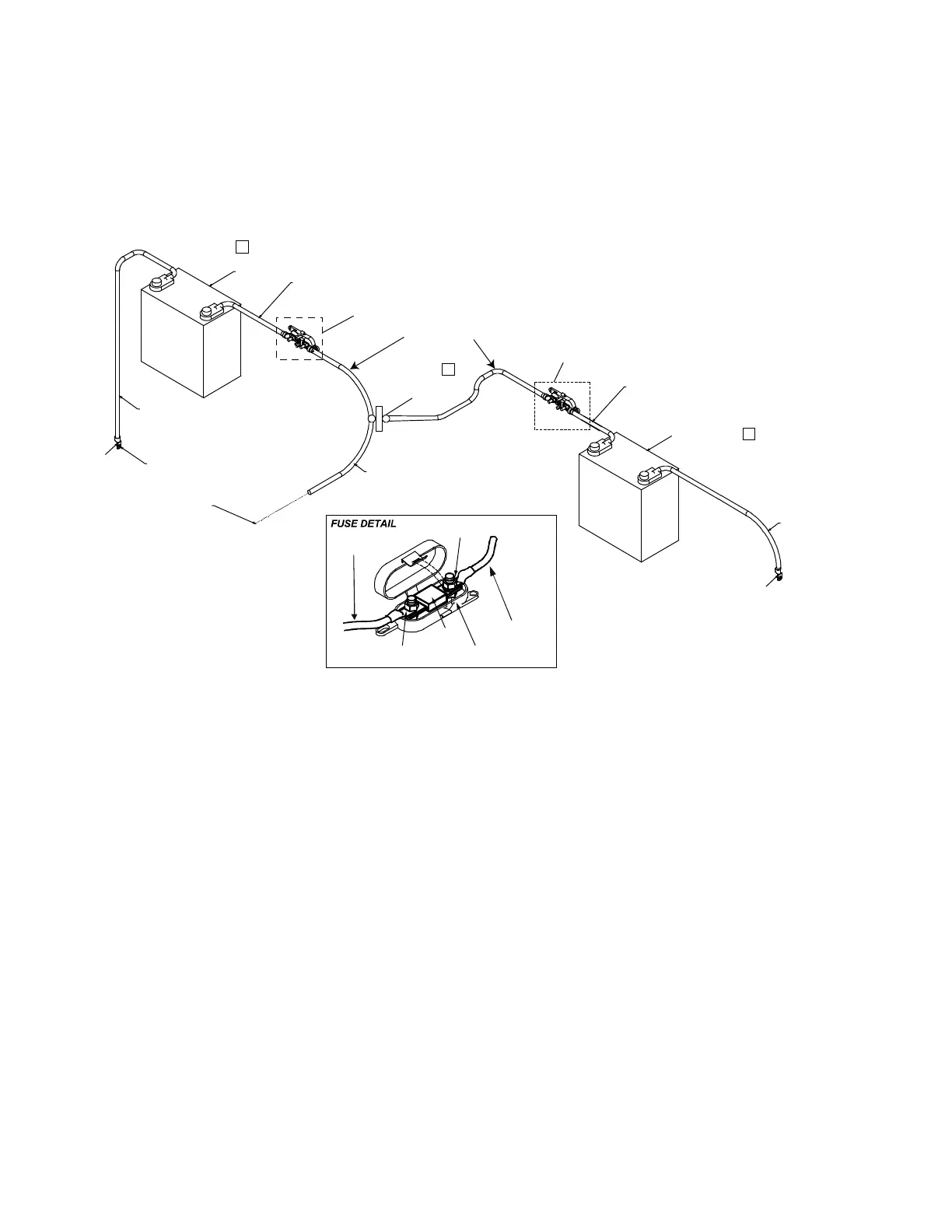

8. Mount the 225-amp fuse holder (item #11) close to the vehicle battery in a location which can be easily
accessed if the fuse needs to be replaced. Repeat with the auxiliary battery. Use approximately one foot
(30.5 cm) of cable (item #13) to connect the positive terminal on the vehicle batteries to the fuse holders.
Connect the other end of each fuse holder to the bulkhead pass-through connector from step #6, which is
then connected to the crane power switch. Cables connect to the fuse holders using 5/16” (0.79 cm) ring
terminals (item #10 - 77040529). Heat shrink connections.
NOTES:
1. Use bulkhead pass-through connectors when power or ground passes through a compartment wall
2. Reference drawing 99904884 for wiring diagram.
10
BATTERY
(CRANE ON-OFF
SWITCH TO FUSE)
13-CABLE #89044276
(CUT TO LENGTH)
(BATTERY (-) TO CHASSIS GROUND)
TO CHASSIS GROUND
FROM ON-OFF
SWITCH
IN CRANE BOX
TO CRANE
(FUSEHOLDER)
TO
BATTERY (+)
FUSE
DETAIL
10 (5/16" RING
TERMINAL)
(225-AMP
FUSE)
10 (5/16" RING
TERMINA)L
13-CABLE #89044276
(CUT TO APPROX. 1' (30.5 cm))
(FUSE TO BATTERY (+))
13-CABLE #89044276
(CUT TO LENGTH)
BATTERY
13-CABLE #89044276
(CUT TO LENGTH)
AUXILIARY
12
11
BULKHEAD
PASS-THROUGH
CONNECTOR
(-)
(+)
(-)
(+)
UNDERHOOD
FUSE
DETAIL
13-CABLE #89044276
(CUT TO APPROX. 1' (30.5 cm))
(FUSE TO BATTERY (+))
13-CABLE #89044276
(CUT TO LENGTH)
1
1
2
10
TO CHASSIS
GROUND
