30 IMT Electric Cranes Operation & Safety Manual # 99904381
8 Turn off power to the handset.
NOTE
Excessive or rapid “On/Off” cycling of the
trigger assembly should be avoided,
particularly if a function is engaged. This will
cause premature aging or extensive damage
to the power unit components.
Radio Remote Controls

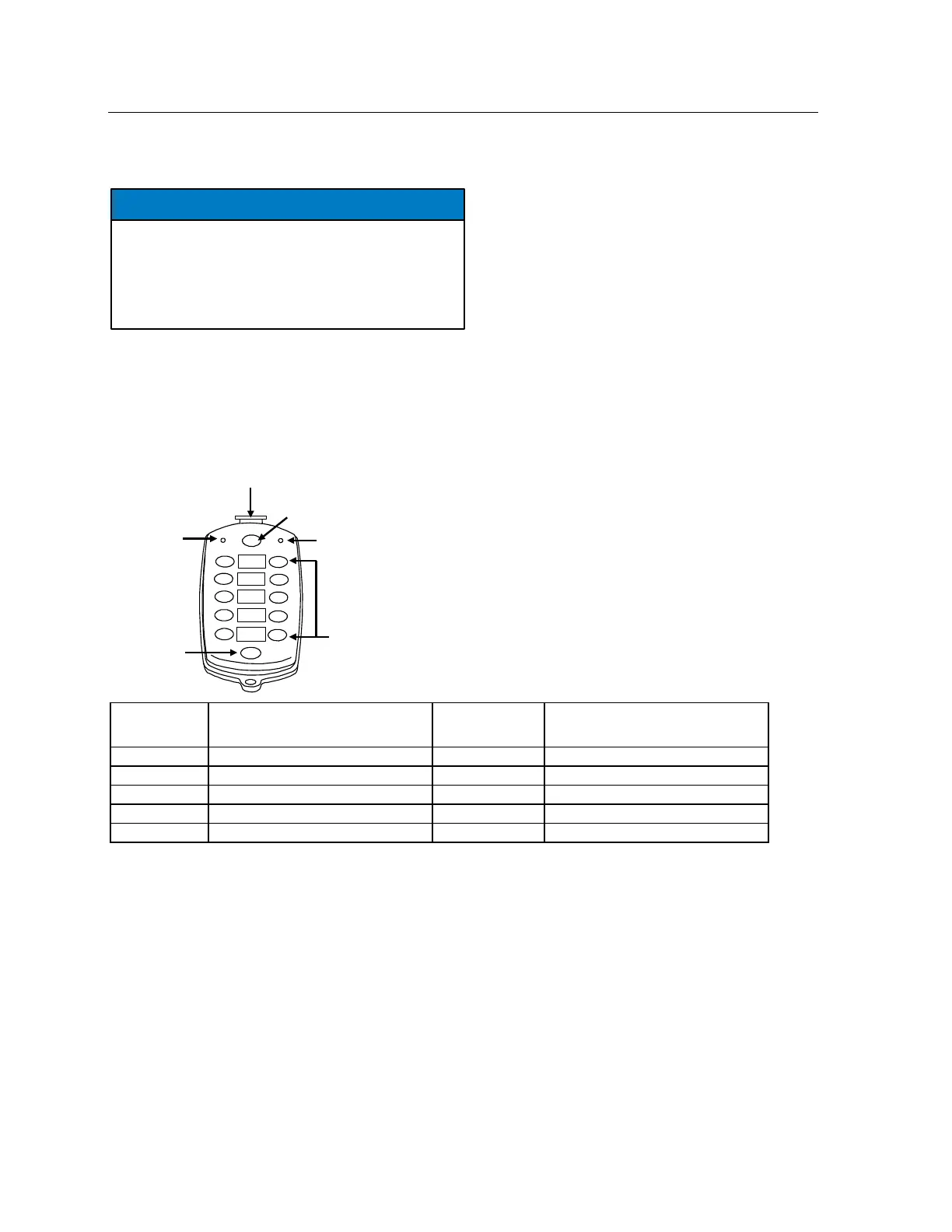

The electric crane radio remote is factory-programmed with the functions shown in the following
chart. Refer to the radio remote manual for additional programming options and more
information.
1 2
3
4
5
6
7
8
9
10
POWER OFF
BUTTON
BATTERY
LOW LED
ACTIVE LED
FUNCTION
BUTTONS
POWER ON BUTTON.
SHIFT BUTTON WHEN
UNIT IS ON.
E-STOP
FUNCTION
BUTTON #
FUNCTION
FUNCTION
BUTTON #
FUNCTION
1
Boom Up
2
Boom Down
3
Extend Out
4
Extend In
5
Winch Up
6
Winch Down
7
Rotate CW
8
Rotate CCW
9
Not Used
10
Not Used
To operate the crane using the radio remote:
1 Make sure the vehicle engine is on; the vehicle is in park or neutral; and the parking brake is
on.
2 Make sure the crane electric power switch, located in the crane cabinet, is turned to the "ON"
position.
3 Twist the E-stop button, located on the top of the remote, to power up the remote. The
active LED will blink. When the E-stop button is released, the active LED will go to a solid,
green color, indicating the crane is ready to operate.
4 Select the required function on the crane handle to move the crane as desired.
5 If no further work with the crane is needed, push the E-stop button again to shut down the
remote.
