6
WIRING

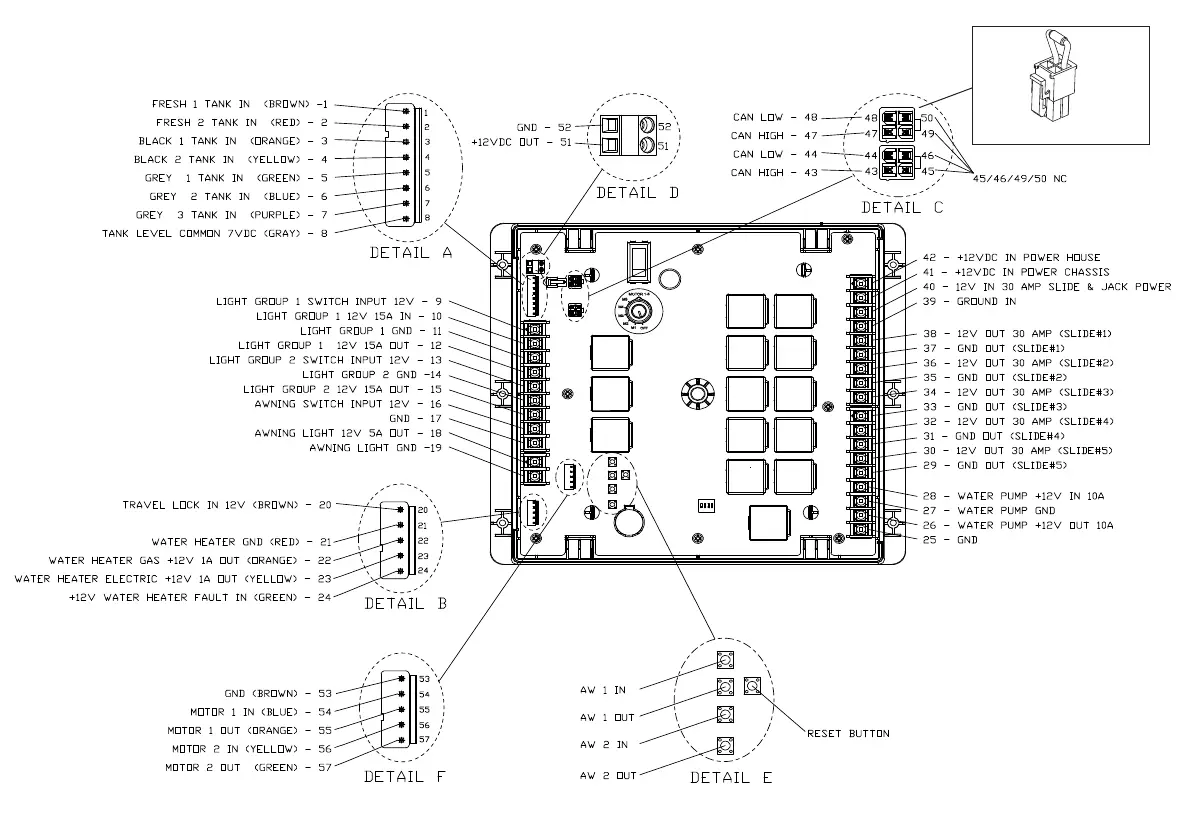

The Wiring Diagram Depicts All The Wiring Connections Required For Proper Operation Of The Unit.
Body Control Module (BCM) Connections
End of Lin e t e r minator r e s i ster.
End of Line terminator resister.
