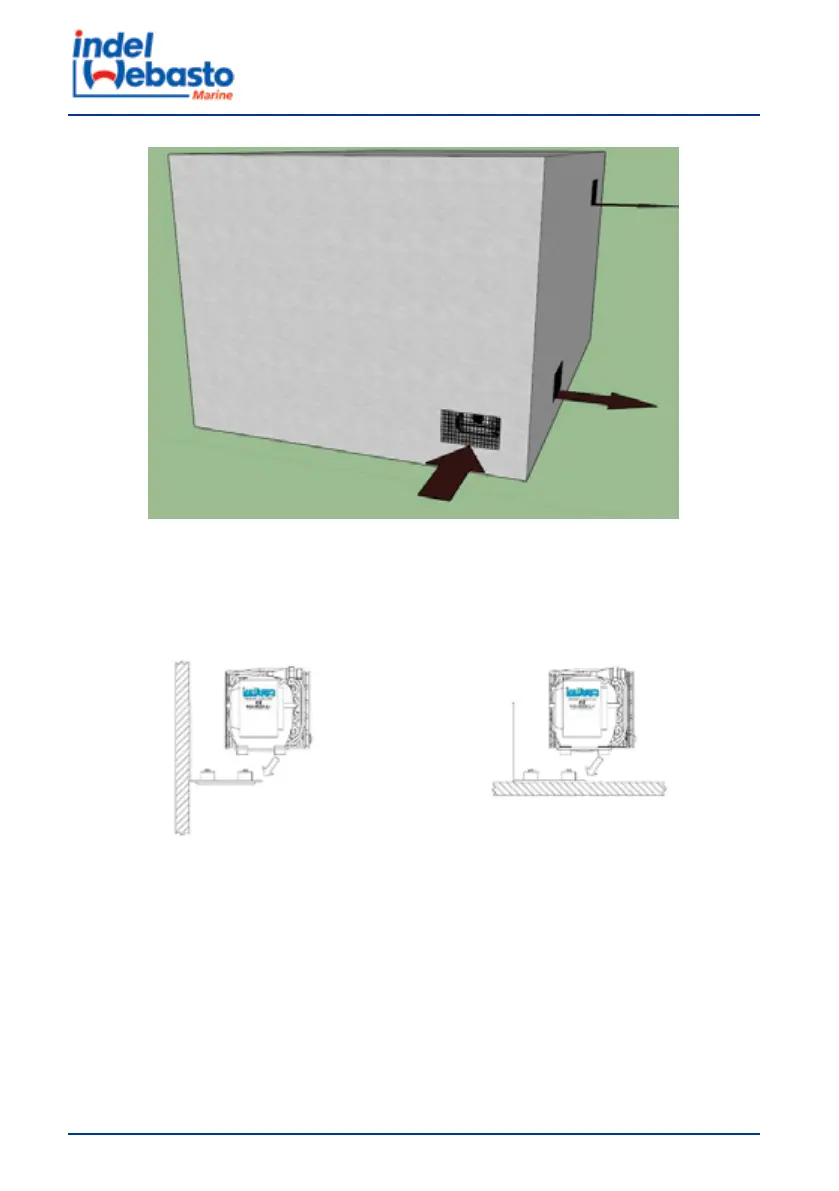

Figure 3: Air input and output in the unit housing room.
The compressor can be housed in a cabinet or in a similar compartment. We do not
advise installing the compressor near the boat sleeping area. Use the provided click-
on bracket (Ref. SGE 00012 AA) to secure the unit on a bulkhead.
Installaon on Vercal bulkhead Installaon on horizontal bulkhead
Figure 4: Detail of compressor housing on the vercal and horizontal bulkhead with bracket
Indel Webasto Marine recommends installing the condensaon unit using the click-
on bracket included in supply. As shown in the previous images (Figure 4), the click-
on bracket can be used for installaons both on vercal bulkheads and on horizontal
planes.
