7.3 Thermostat
The thermostat can be installed both inside and outside the refrigerated
compartment. In both cases, check that the thin hose provided with the sensor
is long enough (at least 70 mm) in order to connect the end of the evaporator
using a special clip or clamp with screws provided with supply. For large sized at
evaporators, the fastening of a clip support on the top edge instead of the boom
can result in a dierence of temperature of even 5°C: mounng of a clip support on
the top edge results in lower compartment temperature at the same thermostat
seng. Connect the thermostat cables to the electronic unit, to the C, P and T tabs
(as indicated in the wiring diagram in this manual in the Electrical Connecons
chapter). Models with large sized evaporators have a resistance on the cable
connecon in correspondence with the T tab to set compressor speed (see wiring
diagram).
7.4 Thermostat-controlled temperature regulaon
Unit temperature is regulated by the thermostat (Figure 8), which also includes
a power funcon if turned counter clockwise to the end posion. To stop unit
operaon, overcome the slight resistance of the knob up to its STOP posion.
Thermostat knob gradaon depends on the scale and on the unit of measure used.
To adjust temperature, proceed generally as follows: turning the knob clockwise, the
internal temperature goes down and vice versa. Keep refrigerator temperature at
5 - 6°C. The outside temperature could aect the inside of the compartment in which
the unit is installed, so it may be dicult to maintain proper internal temperature.

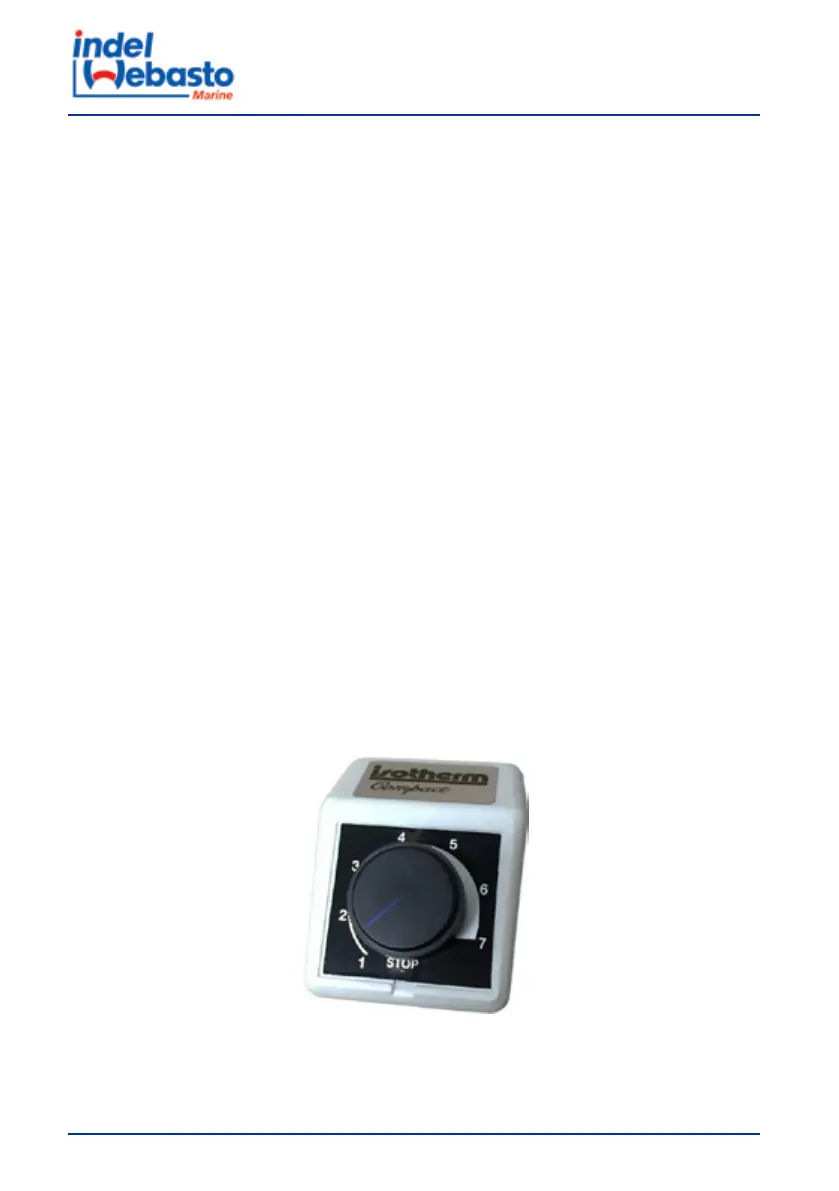

Figure 8: Example of a thermostat used in the Compact Classic with seng scale of 1 (hoest)
to 7 (coldest)
