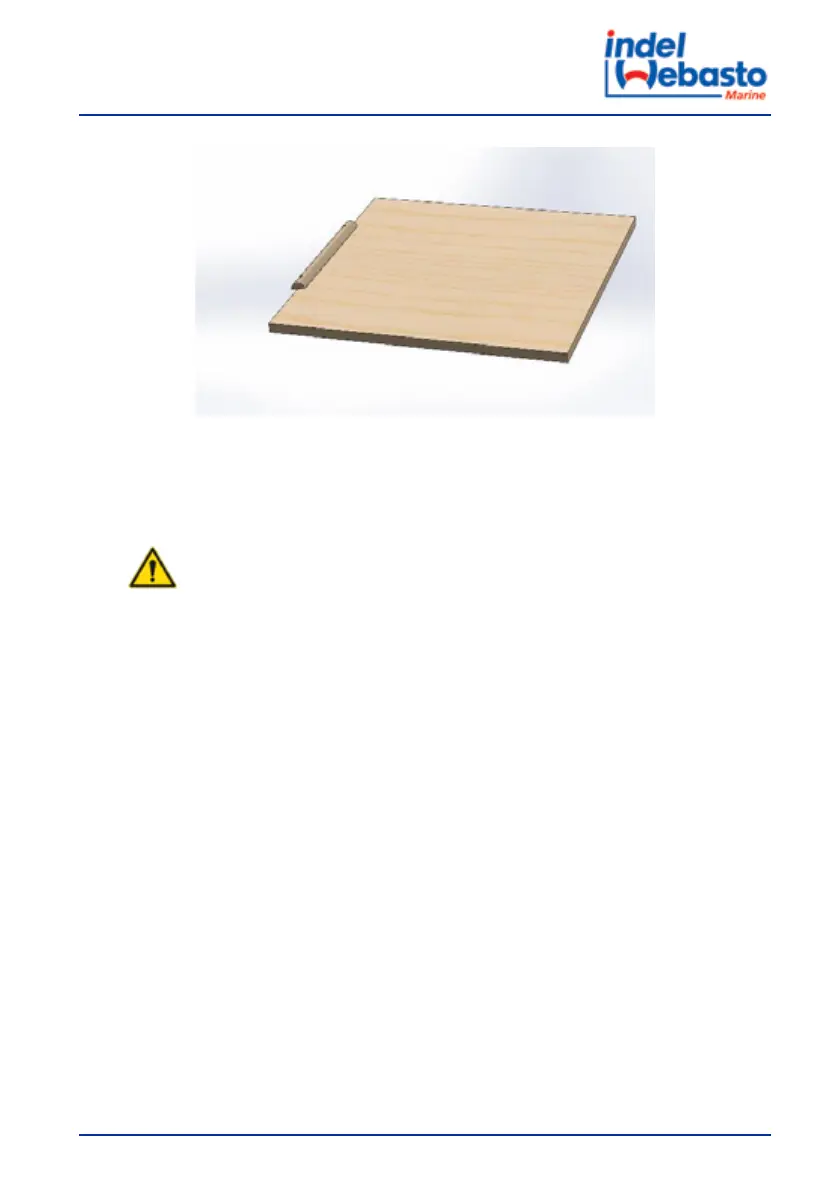

Figure 7: Wooden accessory provided for bending evaporators.
To bend, use the wooden accessory (Figure 7) provided in units with
evaporators that can be bent. If you do not possess the laer, only use a
wooden tool with a length of 44 mm.
WARNING: The use of dierent material other than wood as support for
bending evaporators can cause damage to the interior piping of the evaporator,
adversely aecng operaon. Indel Webasto declines any responsibility
for damage due to use of dierent material other than wood to bend the
evaporator circuit.
Draw a line along the enre length of the crimping tool to highlight the start
point of the bend. Then start to bend the evaporator from the side closest to
the hoses, gently pushing downward.
7. Mark the posion of the mounng holes using the screws and spacers
provided. Do not use screws that are longer than necessary as they could
completely pierce wall insulaon.
8. Install the evaporator aer it has been suitably bent and secured with the
screws and spacers provided.
