7.5 Quick couplings
Connect the evaporator hoses to the condenser unit hoses via quick coupling: rst
connect the pair of capillary hose joints by rotang only the nut present on the female
joint. Connect the second pair of joints remembering to rotate only the nut on the
female joint. Do not dispose of the protecve covers. If you need to re-posion the
system, connecons can be reopened without leakage of refrigerant. In this case,
immediately screw on protecve covers to prevent dust from deposing on joints. Units
can be provided with two types of "X" or "O" quick couplings, shown in the following
gures.

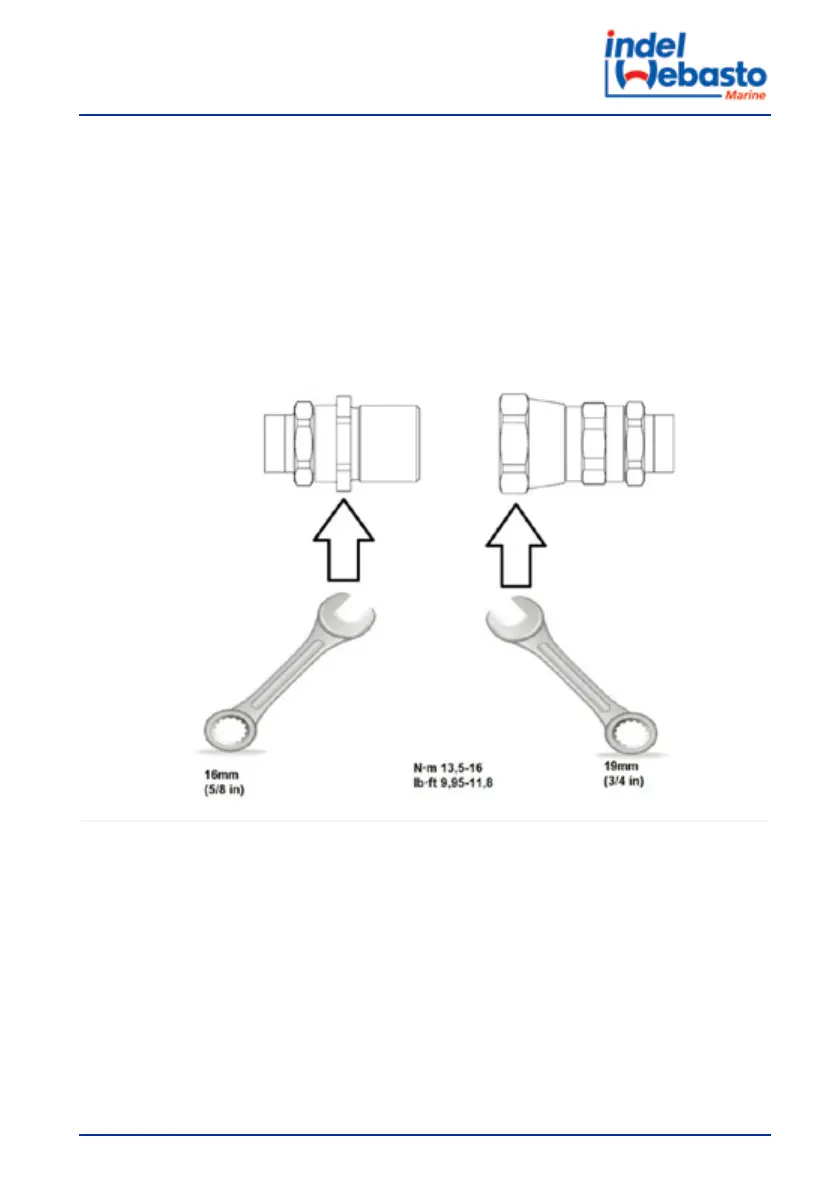

Figure 9: "X" quick coupling type
"X" joint connecon:
1. Remove covers.
2. Check that the gasket seal on the male joint is lubricated with system uid.
3. Move the female joint and ghten the rotang nut on the male joint.
4. Tighten the union of the two parts to the appropriate torque listed using
appropriately sized spanners (in the hexagonal body of the joint and the unit
nut) unl the two sides are connected to the boom or unl you feel denite
resistance.
