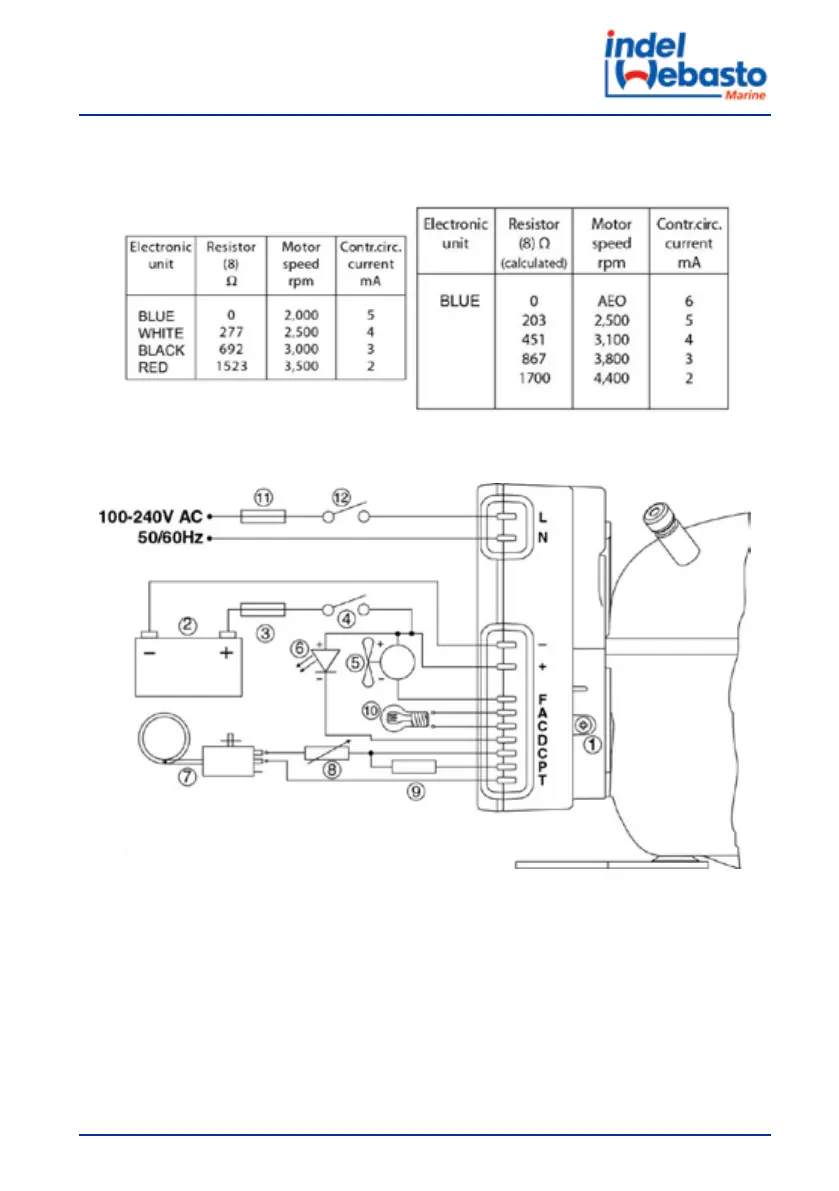

Indel Webasto Compact Classic - Wiring Diagram (AC;DC)

Table 2: Compressor speed seng based on fuse in use
BD35F/BD50F BD80F
Wiring Diagram 12Vdc-24Vdc - 115Vac/230Vac
1. Electronic Control Unit Secop 12Vdc-24Vdc 115/230Vac 50/60Hz
2. Baery
3. Fuse BD35F/BD50F 15A (12V) – 7,5A (24V) BD80F 30A (12V) – 15A (24)
4. Switch
5. Electric fan
6. LED diode
7. Mechanical thermostat
8. Motor speed seng resistance (table reference)
User Manual
79
