A103 - Clean cooling lubricant outlet on clamping cylinder
Orientation
During machining, the cooling flow flushes small chips through the spindle in the
direction of the clamping cylinder. Therefore, the cooling lubricant outlet on the
clamping cylinder must be cleaned at regular intervals.
Procedure
1. Disassemble the machine enclosure in the area ofthe spindles.
2.

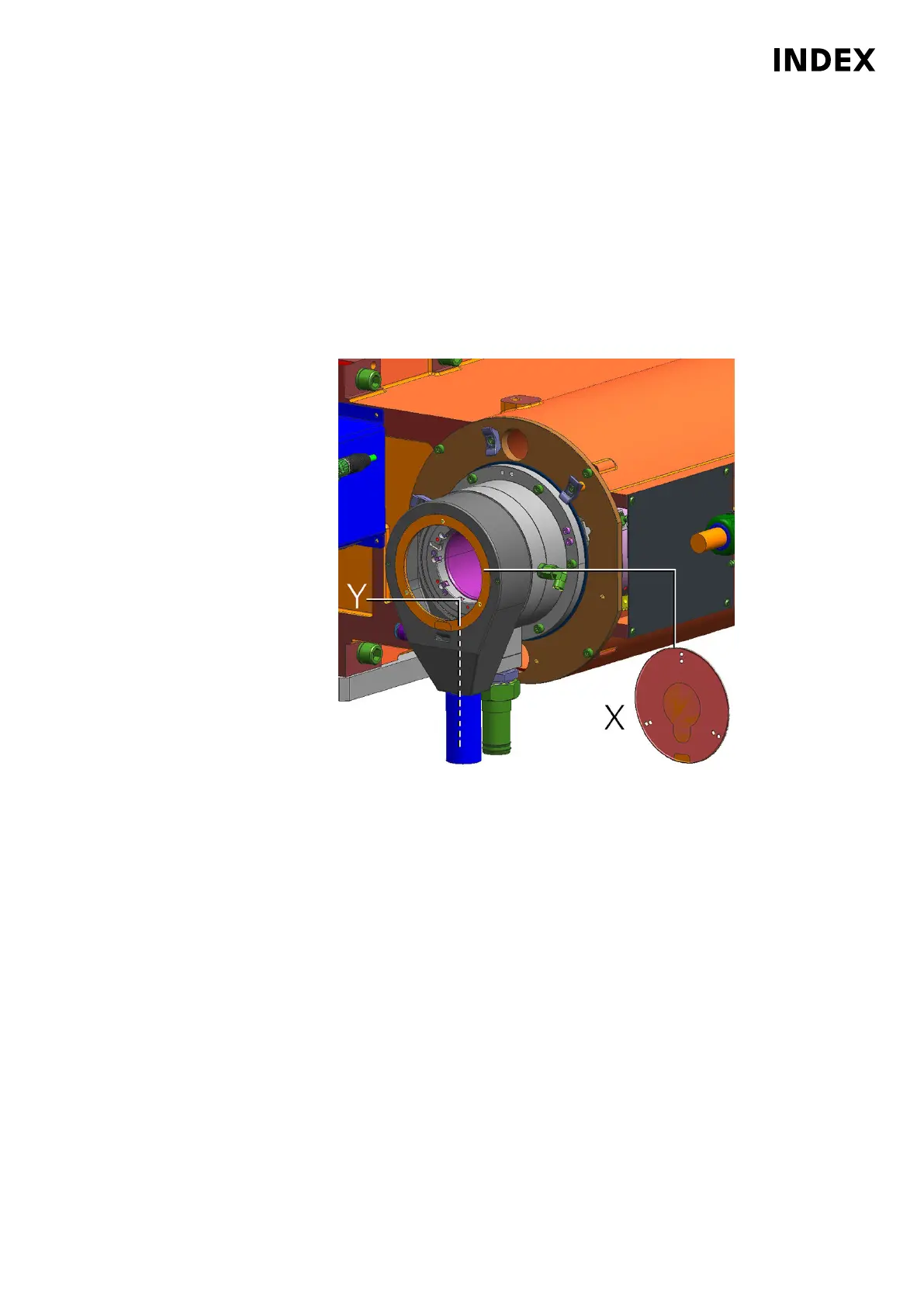

Example: Cooling lubricant outlet, G420
Remove cover (X) on cooling lubricant tank.
3. Clean cooling lubricant tank and drain hose (Y).
4. For assembly, follow the steps in reverse order. Ensure proper cleanliness
during the installation.
Maintenance Summary - Care activities
27
Maintenance Instructions
G200.3 G220.3
DIE248EN - 15.08.2022
