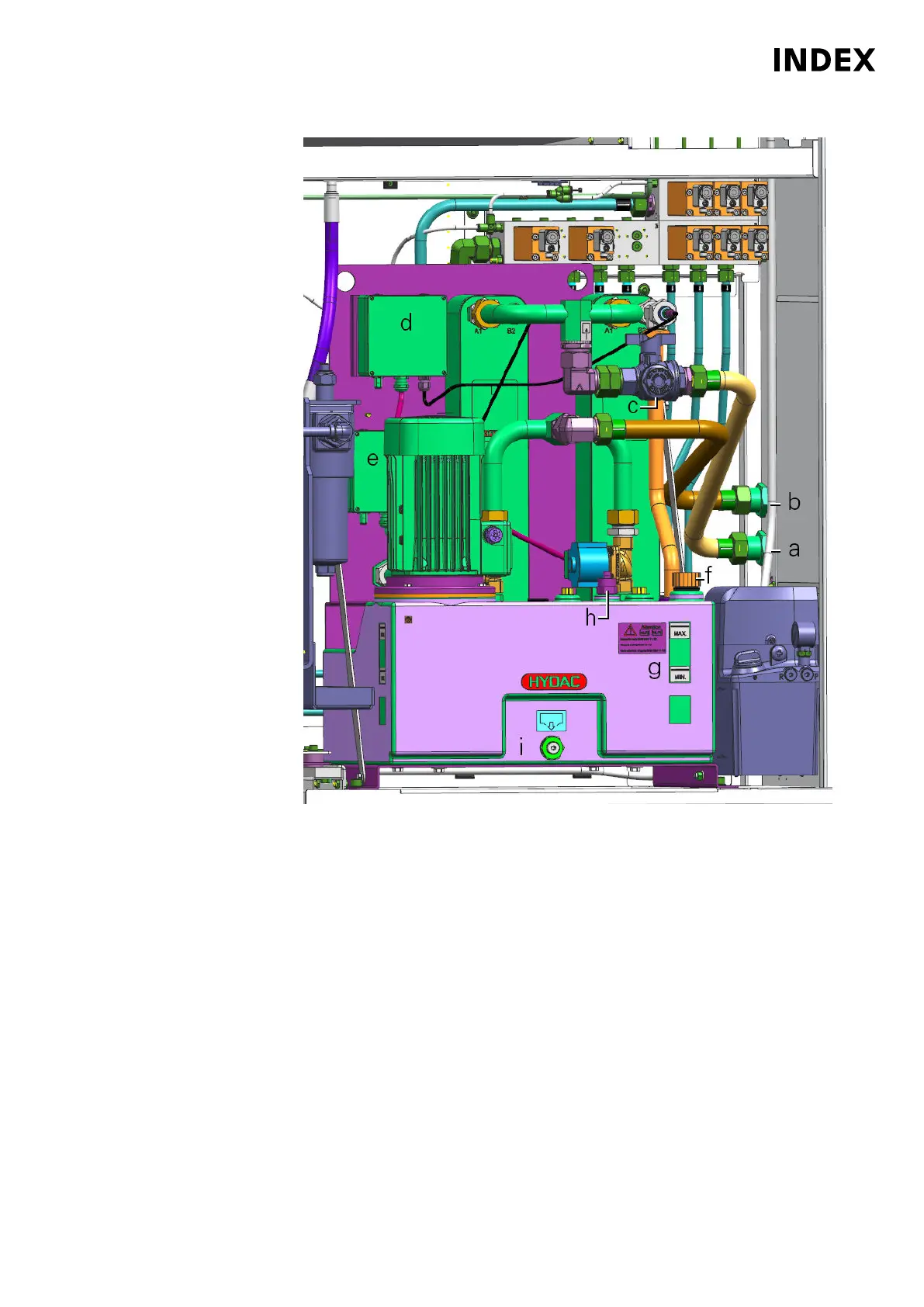

Example: Internal machine cooling FWKS G420
a
Inlet flow – cooling compressor
b Return flow - cooling compressor
c Stopcock
d PID controller for 35% water-glycol mixture
e PID controller for hydraulic fluid HLPD 32
f Filler neck
g Sight glass (fill level indicator)
h Level switch
i Drain plug for tank drainage
Maintenance Summary - Care activities
31
