Procedure
1.

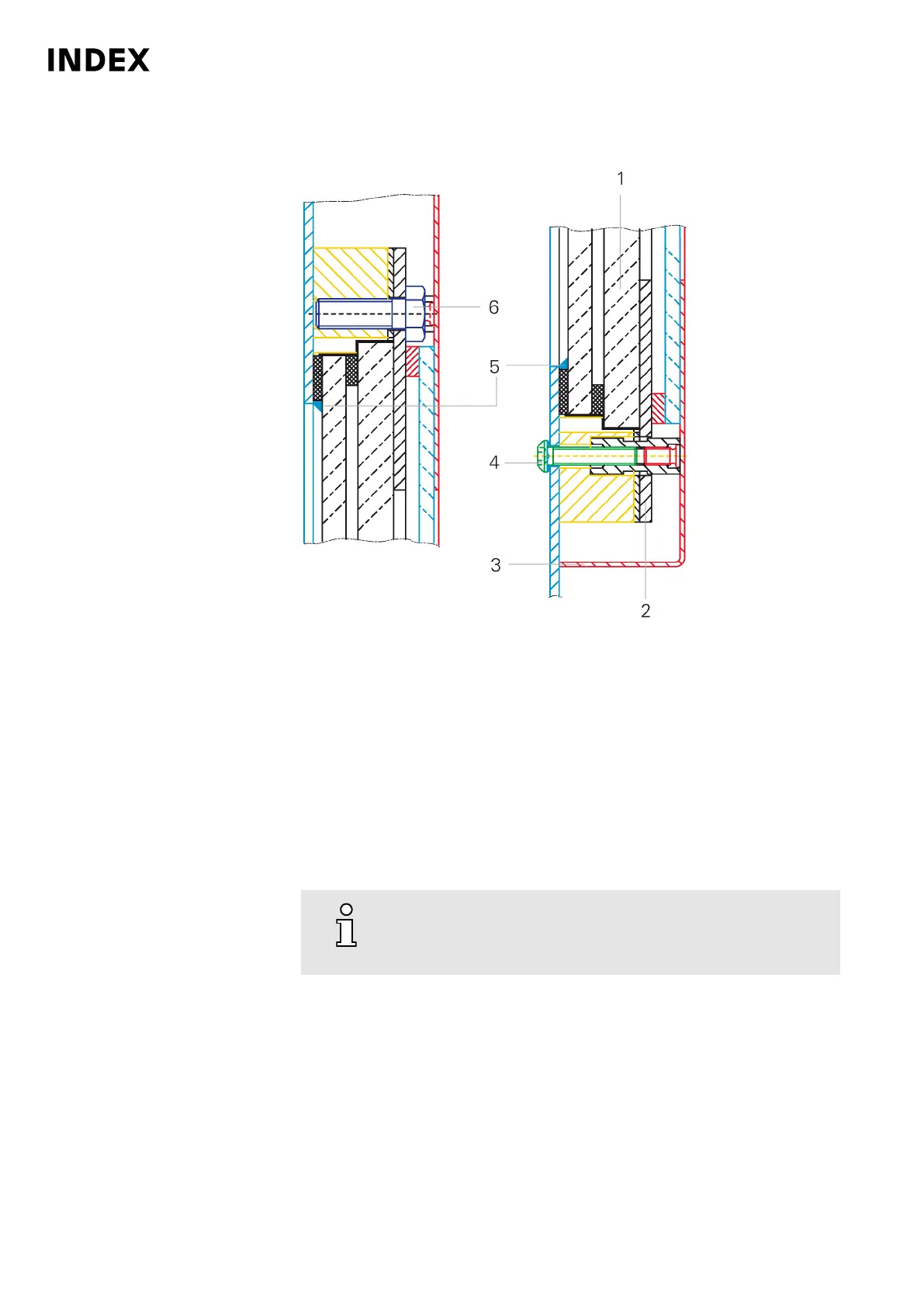

Example: Window pane MS22-6/MS22-8/MS32-6.2/MS40-6/MS40-8
1
Disk
2 Frame
3 Upper cover of work area door
4 Oval head screw
5 Sealant
6 Hexagon head screw
Remove the window pane.
2. Cut open the sealant (5) on the inner pane (single-pane compound glass).
3. Unscrew the oval head screws (4) from the inside and remove the upper cover
of the work area door (3).
4. Remove the hexagon head screws (6) and remove the panes.
5.
Warning of damaging the panes
- Secure the outer window pane against falling down
- Install new panes avoiding any tension
Install the window pane. Insert new window pane and pay attention to the
correct installation position.
6. Attach frame (2) and tighten hexagon head screws (6).
7. Install oval head screws (4) on the inside.
8. Seal the inner joint between the frame and window pane with sealant (5).
