Index MS40-8 - AM335 - Remove, Inspect, Lean and Reinstall the Spindle Liner Tubes

Procedure
1.

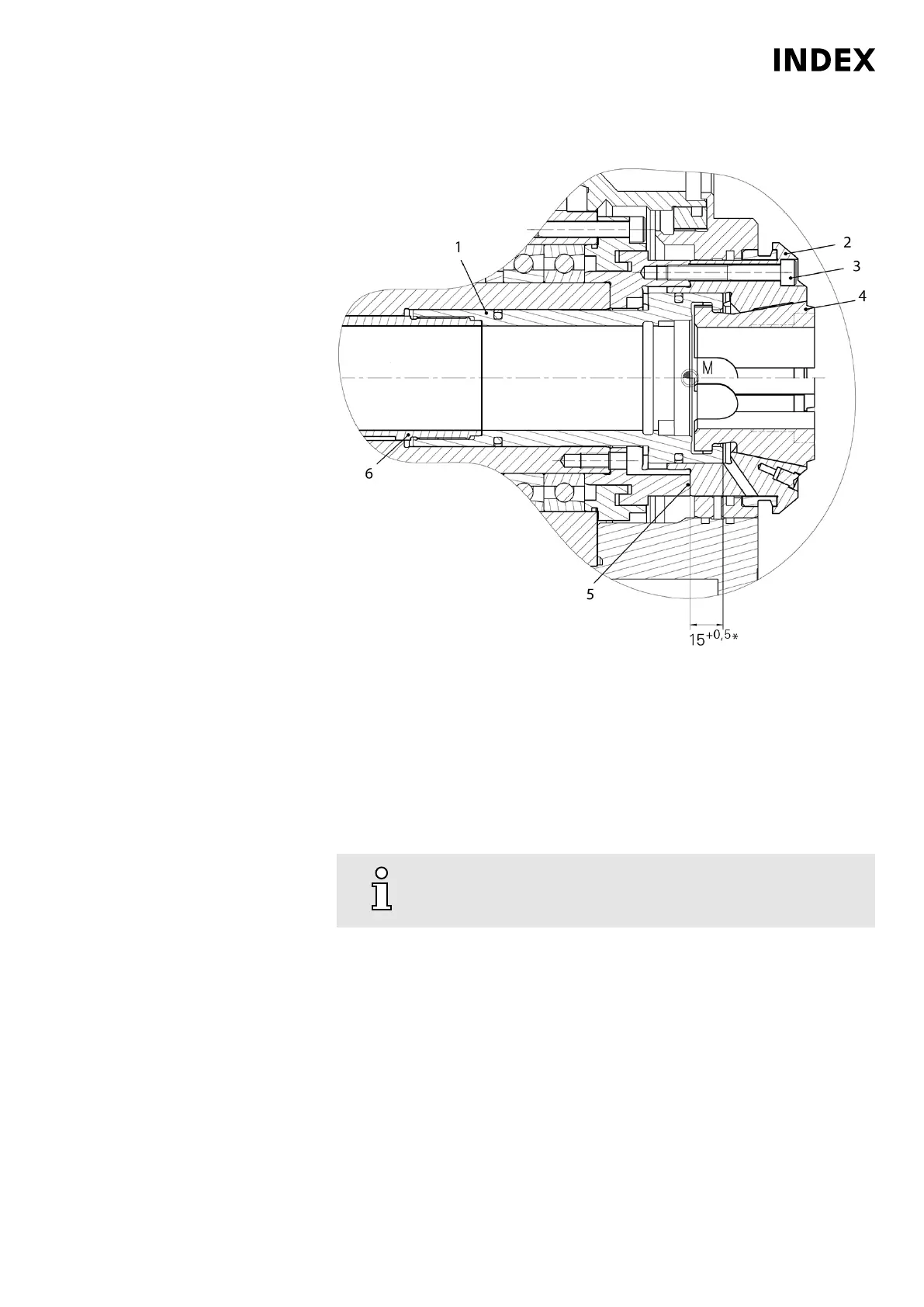

Example: Clamping system ToPlus (Hainbuch) MS40-6/8
1
Base body – bonded to the clamping tube
2 Clamping element holder
3 Screws
4 Collet
5 Spindle nose end face
6 Clamping tube
* (Installation dimension in “Clamp open” position)
Remove collet (4) using the changing device. Remove 6 screws (3) and
remove clamping element holder (2). See also AM... Removing clamping
element holder.
2.
Base body (1) and clamping tube (6) are bonded together.
(LOCTITE
®
)
