1 Index V4 Embosser manual
© 2015 Index Braille
www.indexbraille.com
1 Safety information
Securely place the printer on a stable surface.
Keep the ventilation inlets och outlets of the embosser free.
Connect the embosser to a grounded power outlet only.
Acoustic Hood are recommended, for reducing noise level.
Braille Box is a class A product. In the unlikely event it causes radio interference, increase the
distance between Braille Box and the device.
2 Index V4 embosser overview

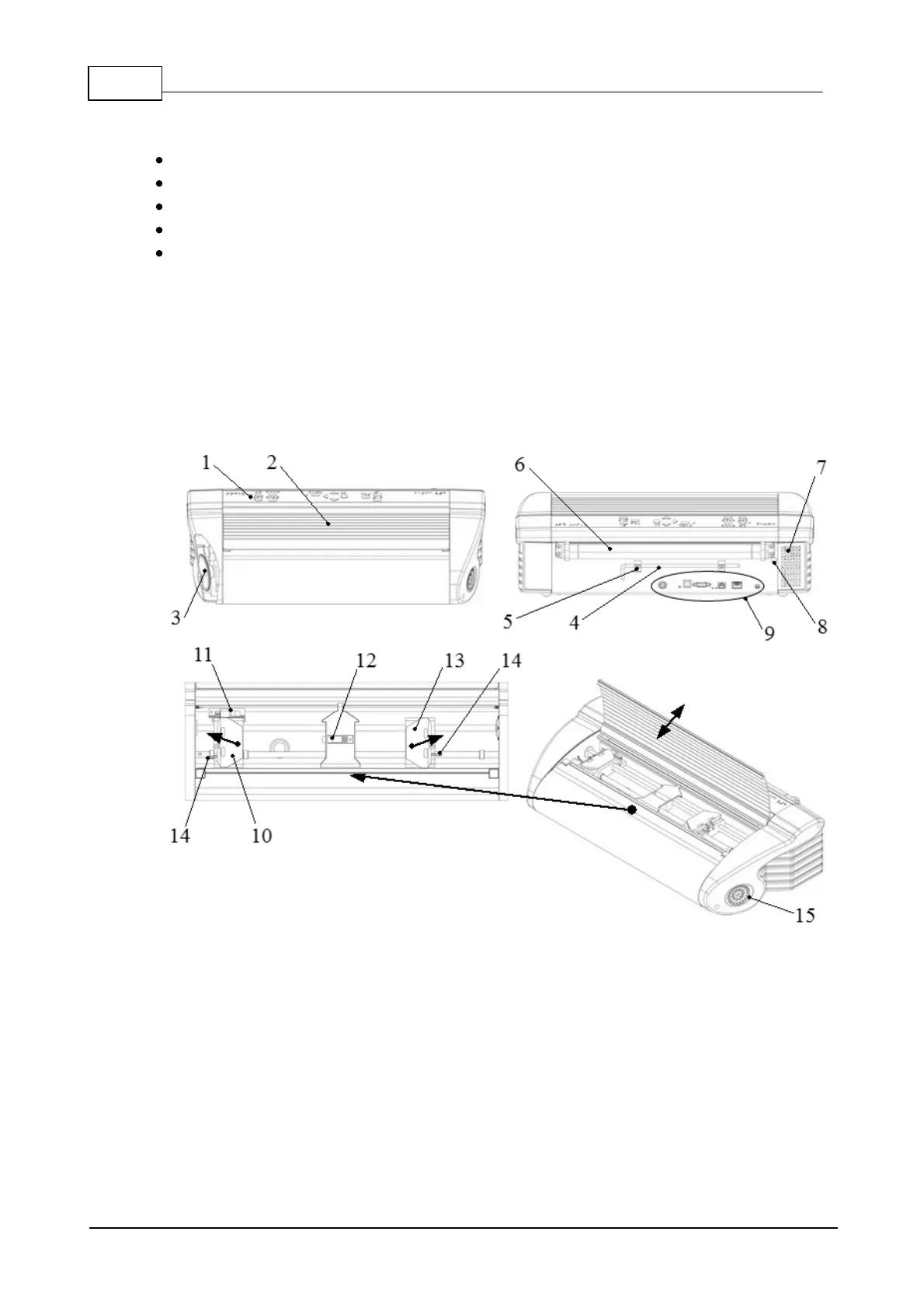

2.1 Basic-D
1. Control panel
2. Lid
3. Speaker
4. Transport lock
5. Transport lock holder
6. Paper rollers
7. Ventilation inlet
8. Hole for transport lock
9. Electrical connectors
10. Left tractor
11. Optical paper movement sensor detecting paper jam
12. Optical paper sensor detecting paper edge
13. Right tractor
14. Tractor lock
15. Ventilation outlet
