2Index V4 embosser overview
© 2015 Index Braille www.indexbraille.com
2.2 Everest-D

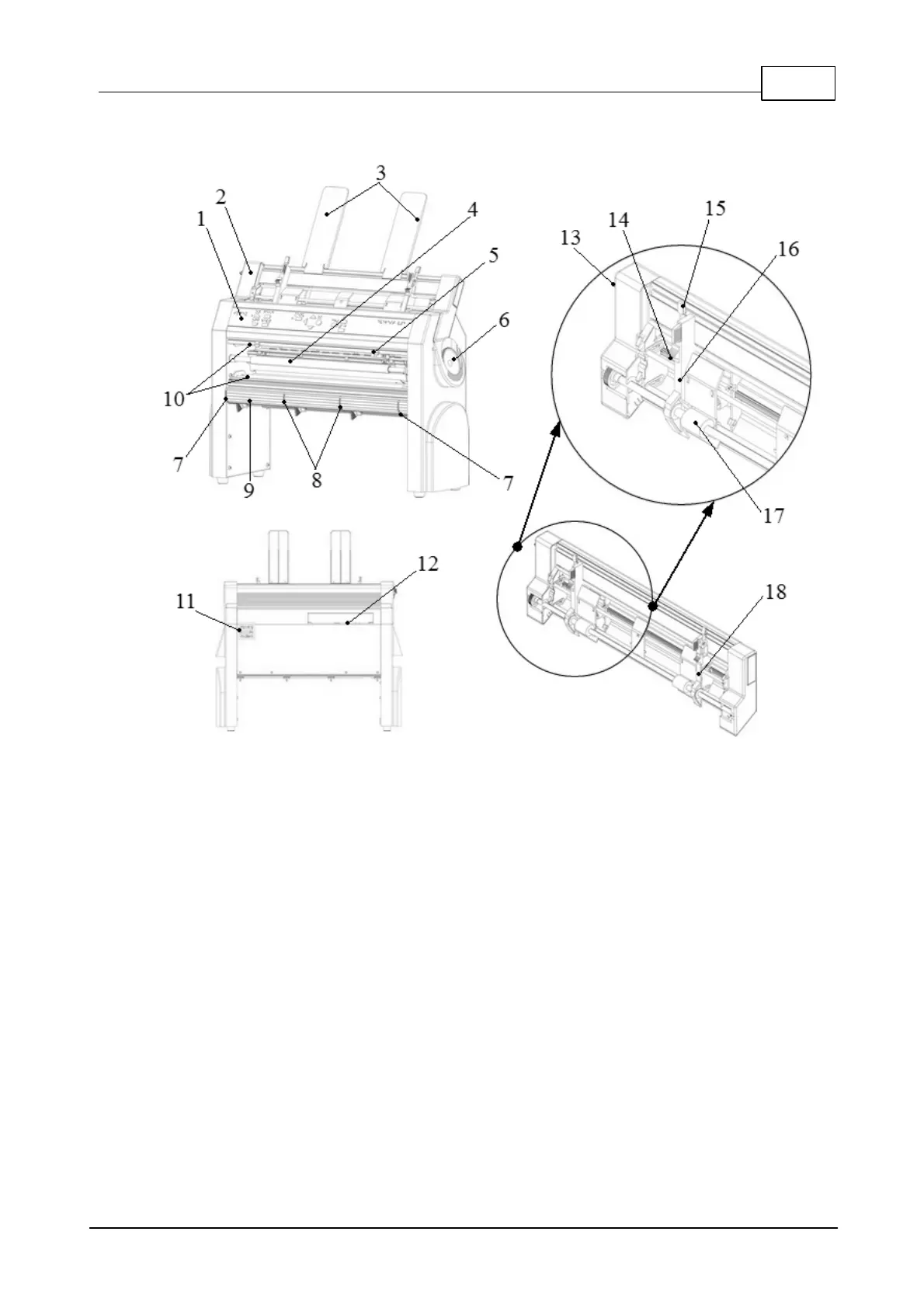

1. Control panel
2. Sheet feeder
3. Paper guides
4. Embosser head
5. Optical paper sensor
6. Speaker
7. Two white outer guides for adjusting
profile angle
8. Two white inner guides to bend paper
in eject position
9. Front bottom profile
10. Paper rollers (2 units)
11. Ventilation outlet
12. Electrical connectors
13. Sheet feeder lock
14. Card/sheet selectors (right/left)
15. Locking levers (right/left)
16. Left margin guide
17. Pick up rollers
18. Right margin guide
