IDS 410/422 User's Manual
61
SCALE SPECIFICATIONS
Display Bright red LED; 1-inch x 6-digit numeric
Status Indicators Gross, Net, Motion, Zero, LB, kg (LED)
Keyboard 5-key sealed tactile feel membrane
Internal Resolution 24-bit A/D Sigma-Delta; 16,000,000 d
Display Resolution 200,000 dd industrial; 10,000 dd HB44
Display Increments Selectable 1, 2, 5, 10, 20, 50 100
Decimal Point Selectable 0, 1, 2, 3, 4 decimal places
Conversation Rate 60 samples/second typical
Signal Sensitivity 0.1 uV/graduation (min)
Signal Range 0.5 mV/V to 6mV/V
Load Cell Excitation 10 ± 0.5VDC (-5 to +5)
Load Cell Power 12 x 350 Ω or 24 x 700 Ω load cells
Auto Zero Tracking 0-60 dd in 1/4 dd increments
Auto Zero Delay 0-25 seconds In 0.1 second increments
Motion Detect 0-60 dd in 1/4 dd increments
Motion Delay 0-25 seconds In 0.1 second increments
Digital Filter 0-18 selectable filter (DSP) levels
Calibration Selectable multi-point (up to 5) digital
calibration to linearize input signal
Watchdog Timer Enable/disable fault tolerant operation
RFI Protection Signal, excitation and sense lines
RAM 32K provides 328 ID storage (parts, etc)
COMMUNICATIONS
Serial Port 1 Simplex RS232 or 20mA current loop
Serial Port 2 Full duplex RS232, 20ma or RS485
Digital Port 3 inputs and 3 outputs; Low active (TTL)
Print Formats 4 user configurable print formats
GENERAL SPECIFICATIONS
Power 110/220VAC ±10% @ 50/60Hz or 12-28
VDC
Power Consumption 10W @ 115VAC; 6W @ 12VDC
Operating Temperature -10 to +40
o
C.
Weight 6 lbs (2.72 kg)
Warranty One-year limited
OPTIONS
Analog Output Module Fully isolated 0-10VDC or 4-20mA; 16-
resolution; 650Ω load resistance
Relay Box 4-channel external relay box
Relay Modules Input/output solid-state (AC/DC) relays
Clock Module
Time and Date Clock Y2K and Leap Year
High speed (HS) 100 samples/second conversion rate;
high-speed process control applications
EZ-LINK PC software; facilitates configuration
and Scale Basic programming
IS Barriers Hazard location intrinsic safety barriers
Panel Mount Kit Mounts enclosure to user panel
(for future release)
DeviceNet PLC/COM interface (for future release)
Profibus PLC/COM interface (for future release)
NTEP COC# 96-133-A1 Canada Am-5216Rev1
UL & CUL pending
The IDS 410/422 is the only digital weight me
fully programmable in an easy and flexible macro language called
Scale Basic. In addition to the built-in modes of operation,
Scale Basic allows you to customize the operation of the IDS
410/422 to meet your application requirements. The Scale Basic
language provides various commands and functions that include:
math operations, I/O control, setpoints, timers, data entry, ID
storage, message display, and program sequence control among
others. Programming the IDS 410/422 can be performed through
the keyboard or a PC using the optional EZ-LINK software that
greatly facilitates setup and programming.
MODE 0 - Normal
Basic gross, tare and net weighing
MODE 1 - Print Weight and Total
Print multiple gross or net weights and keep a running total for
job, lot, etc. Print accumulated gross, tare and net totals at the
end
MODE 2 – Auto Print & Total/Multi-Container
Automatically prints a sequential number and prints a series of
weighments. Push the TOTAL button to print and clear the total
MODE 3 - Auto Axle Weigh (Short Scale)
Same as Mode 2 printing is automatic when weights are placed
on the scale. Provides traffic light control and trip level
configuration
MODE 4 - Auto Axle Weigh (Long Scales)
Same as Mode 3 but previous axles are auto tared
MODE 5 - Peak Hold Mode
Display or print the gross or net peak weight detected
MODE 6 - Over/Under Checkweigh
Provides 3 TTL outputs and 2 setpoints to indicate over, under
and between weight conditions. Outputs can activate lights or
alarms
MODE 7 – Fill to Setpoint/Bulkweigh
Provides setpoint entry and relay output to control fill process.
Remote start/stop operation with configurable scale empty and
draft weights. Auto prints each draft weight.

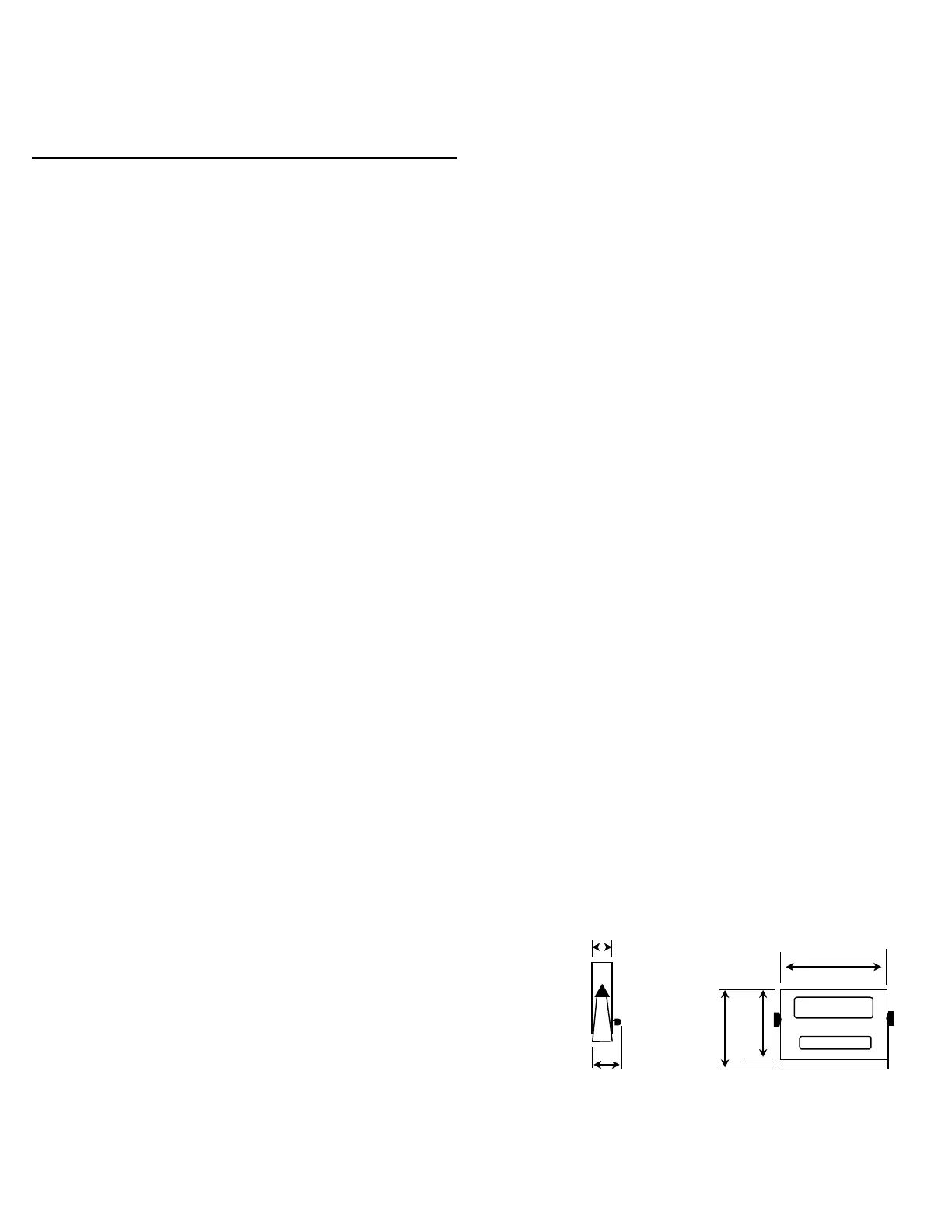

DIMENSIONS
A = 7.63” (19.38 cm)
C = 8.56” (21.74 cm)
D = 2.00” (5.08 cm) E = 3.00” (7.62 cm)
D
E
A
B
