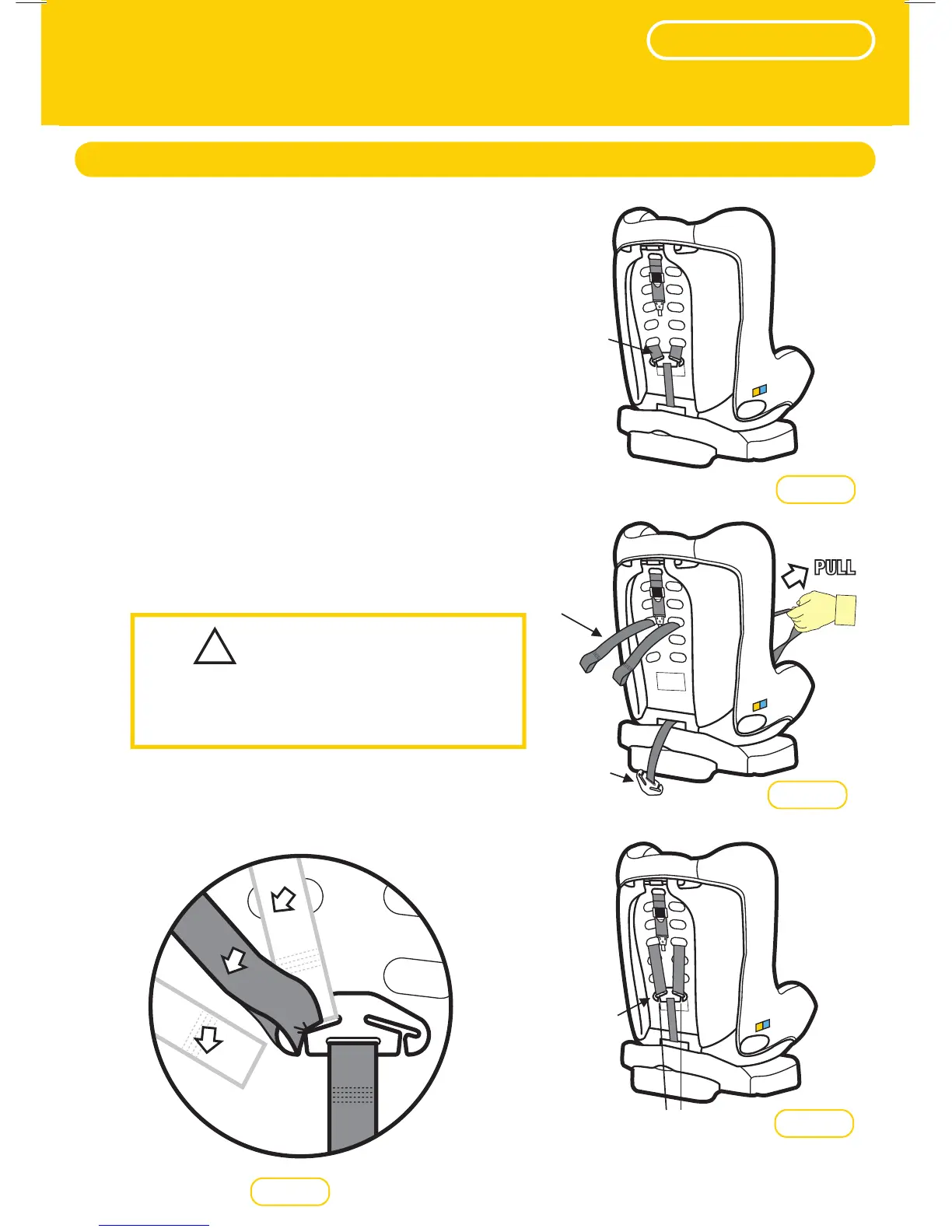

Infasecure CS4513 - Shoulder Slot Height Adjustment

34
30
With the child correctly sitting in the restraint, check
which set of slots (in the plastic shell of the restraint)
are level with but not more than 25mm below the
child’s shoulders.
IMPORTANT
!
The shoulder straps must be in the slots which
are nearest to the child’s shoulders, but not more
than 25mm below the child’s shoulders.
Figure 2
Figure 3
GATES
METAL
SPREADER
PLATE
HARNESS
STRAPS
METAL
SPREADER
PLATE
PULL
Figure 4
Shoulder slot height
Setup
Child Car Seat
Loosen harness to allow spreader plate to rise from
under the restraint. Turn the restraint so that the back
of the seat is facing you.
Remove each shoulder harness through the gates in
the spreader plate (see Figure 1 & 4).
Pull the shoulder harness straps through the shoulder
slot holes in the seat body and cover. They are now
loose in the front of the seat.
Push the ends of the shoulder harness straps through
the appropriate shoulder slot holes in the cover and
seat body for the child’s shoulder height.
NOTE: Ensure the harness straps are not twisted.
The shoulder harness straps go directly from the
shoulder slot holes to the spreader plate. Thread each
shoulder harness strap back onto the metal spreader
plate through the gate (see Figure 4).
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
Figure 1
HARNESS
STRAPS
