Infasecure CS4513 - Accessing ISOFIX Connectors

36
ISOFIX Compatible Restraint
Child Car Seat
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
Step 6:
Step 7:
Remove the insert/s to access
the seat cover (refer Figure 1).
Fold the cover and padding
forward (refer Figure 2).
Open the ISOFIX storage and
remove the LAC strap (refer
Figure 3).
Pass the LAC strap out through
the seat belt path opening.
Ensure the exible LAC straps
are laying at on the plastic
shell (refer Figure 4).
Close Storage Lid.
Repeat steps 3 to 5 for other
side. Ensure that there are no
twist in the exible LAC straps
(refer Figure 6).
Fold the padding and cover
back in place (refer Figure 5).
Figure 1 Figure 2
Figure 4
Figure 5 Figure 6

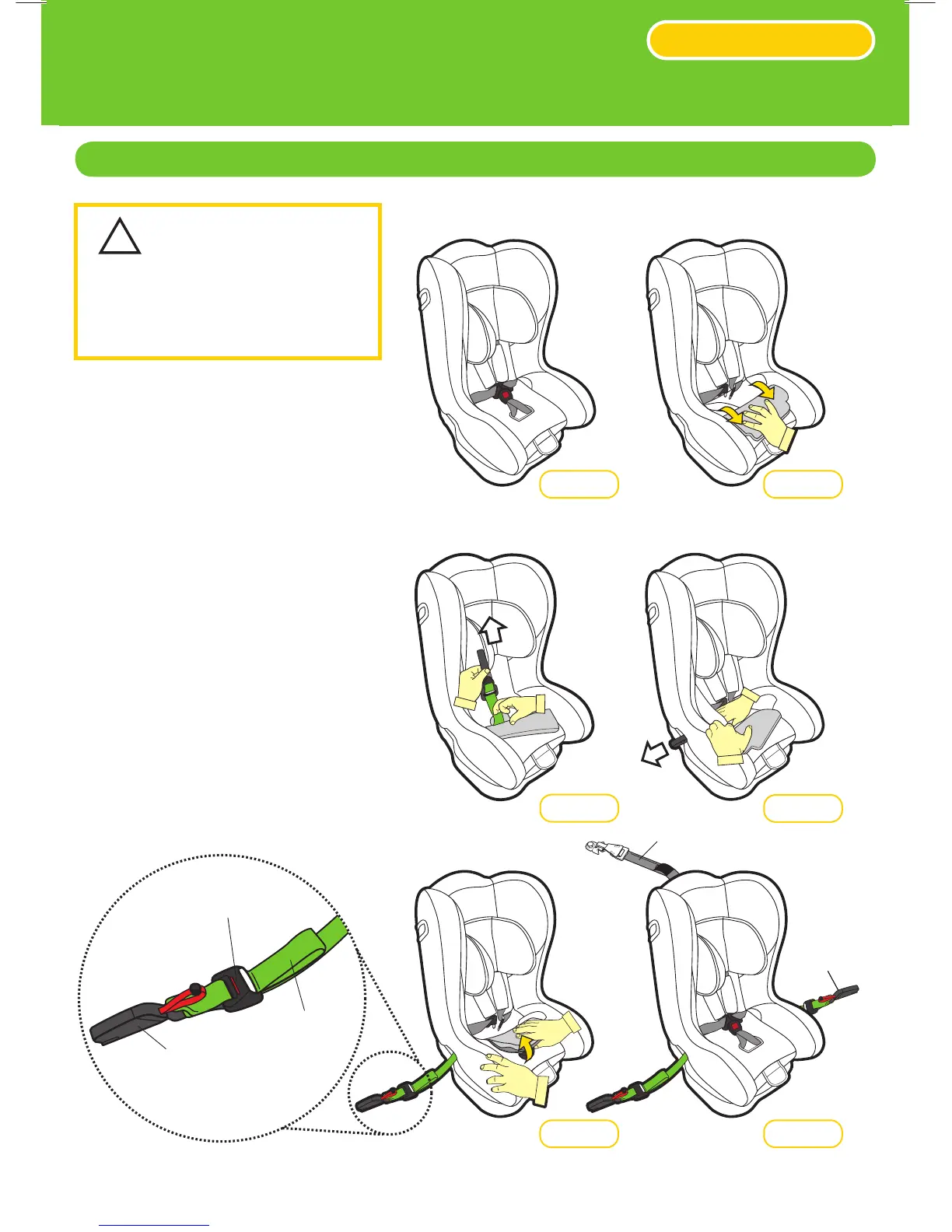

Accessing the flexible ISOFIX Lower Anchorage Connectors (LAC)
IMPORTANT
!
The straps for the exible ISOFIX
Lower Anchorage Connectors
(LAC) are stored in an compartment
beneath the seat cover.
Lower Anchorage
Connector (LAC)
Load Indicating
Adjuster
Adjuster
Strap
Top Tether Strap
LAC Strap
Flexible Lower Anchorage Connector Straps
Figure 3
