Infasecure CS4513 - Installing using ISOFIX Connectors

37
ISOFIX Compatible Restraint
Child Car Seat

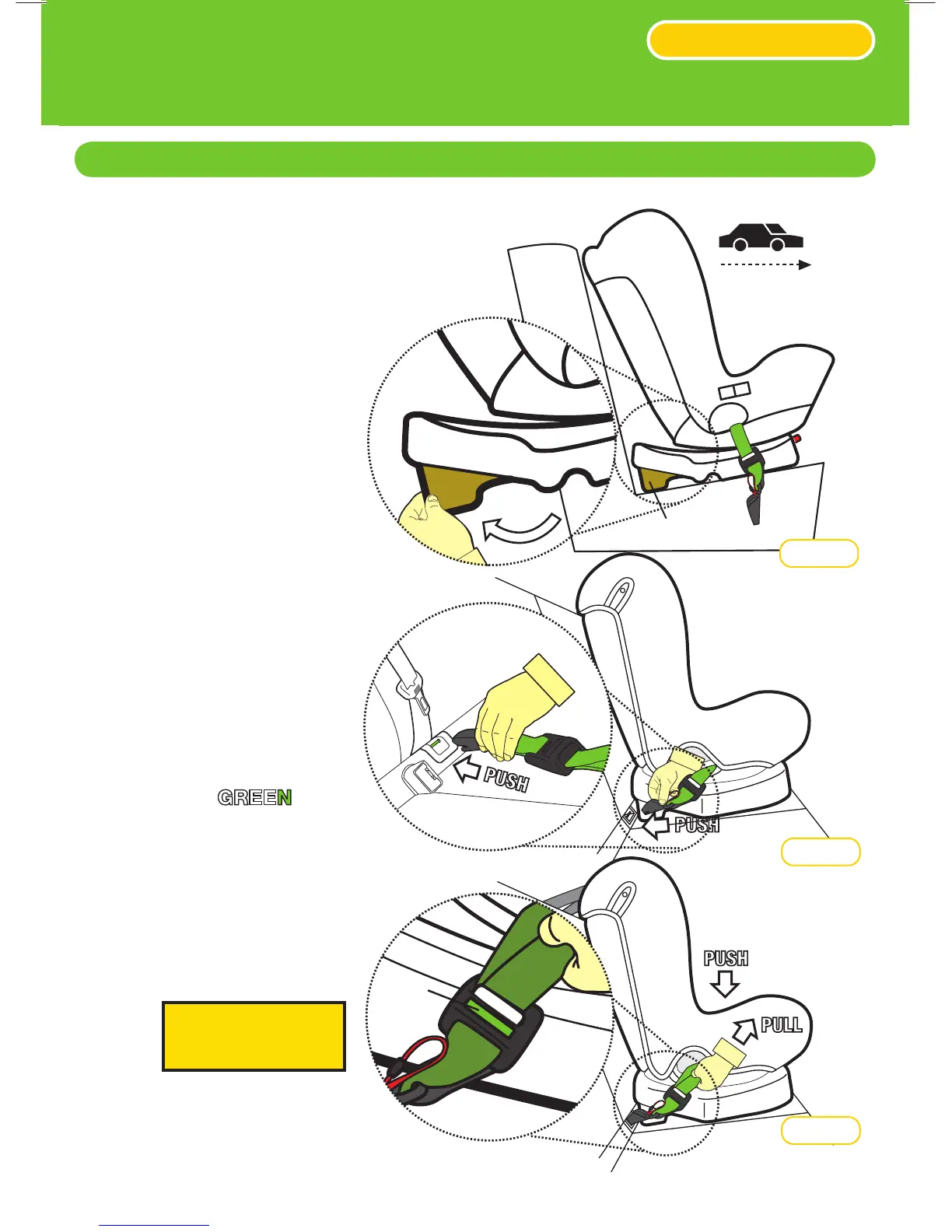

Installing using flexible ISOFIX Lower Anchorage Connectors (LAC)
Step 1:
Step 2:
Step 3:
Step 4:
Install the restraint
on the vehicle seat
Locate the ISOFIX lower
anchorage points (refer to
Page 35).
Insert the exible LAC into
the ISOFIX lower anchorage
point.
You may need to ‘PUSH’ into
the seat bite where the
ISOFIX symbols indicate.
Give a ‘PULL’ to check for
positive engagement (refer
Figure 2).
Push down on the restraint
(with knee or hand) whilst
pulling the adjuster strap
rmly. Remove all slack
from the LAC straps by
pulling the adjuster strap
rmly. The
GREEN
indication is activated (refer
Figure 3).
Repeat for both sides of the
restraint.
Installing using flexible ISOFIX Lower Anchorage Connectors (LAC)
Step 1:
Step 2:
Forward facing mode
Fully recline the restraint
Swing the Recline
Section rearward
(refer Figure 1).
PUSH
PUSH
PULL
Figure 3
Figure 2
RECLINE
SECTION
Figure 1
Front
of Car
PUSH
Green
Indicator
REMOVE ALL SLACK
FROM LAC STRAP
