Infasecure CS4513 - Installing Using ISOFIX Lower Anchorage Connectors

17
Step 1:
Step 2:
Step 3:
Step 4:
Install the restraint
on the vehicle seat
Locate the ISOFIX lower
anchorage points (refer to
Page 15).
Insert the exible LAC into
the ISOFIX lower anchorage
point.
You may need to ‘PUSH’ into
the seat bite where the
ISOFIX symbols indicate.
Give a ‘PULL’ to check for
positive engagement (refer
Figure 2).
Push down on the restraint
(with knee or hand) whilst
pulling the adjuster strap
rmly. Remove all slack
from the LAC straps by
pulling the adjuster strap
rmly. The
GREEN
indication is activated (refer
Figure 3).
Repeat for both sides of the
restraint.
Installing using flexible ISOFIX Lower Anchorage Connectors (LAC)
ISOFIX Compatible Restraint
PUSH
PULL
Infant Seat
Recline Section (Swing Forward)
& child restraint fully reclined.
Recline Section
LAC Strap

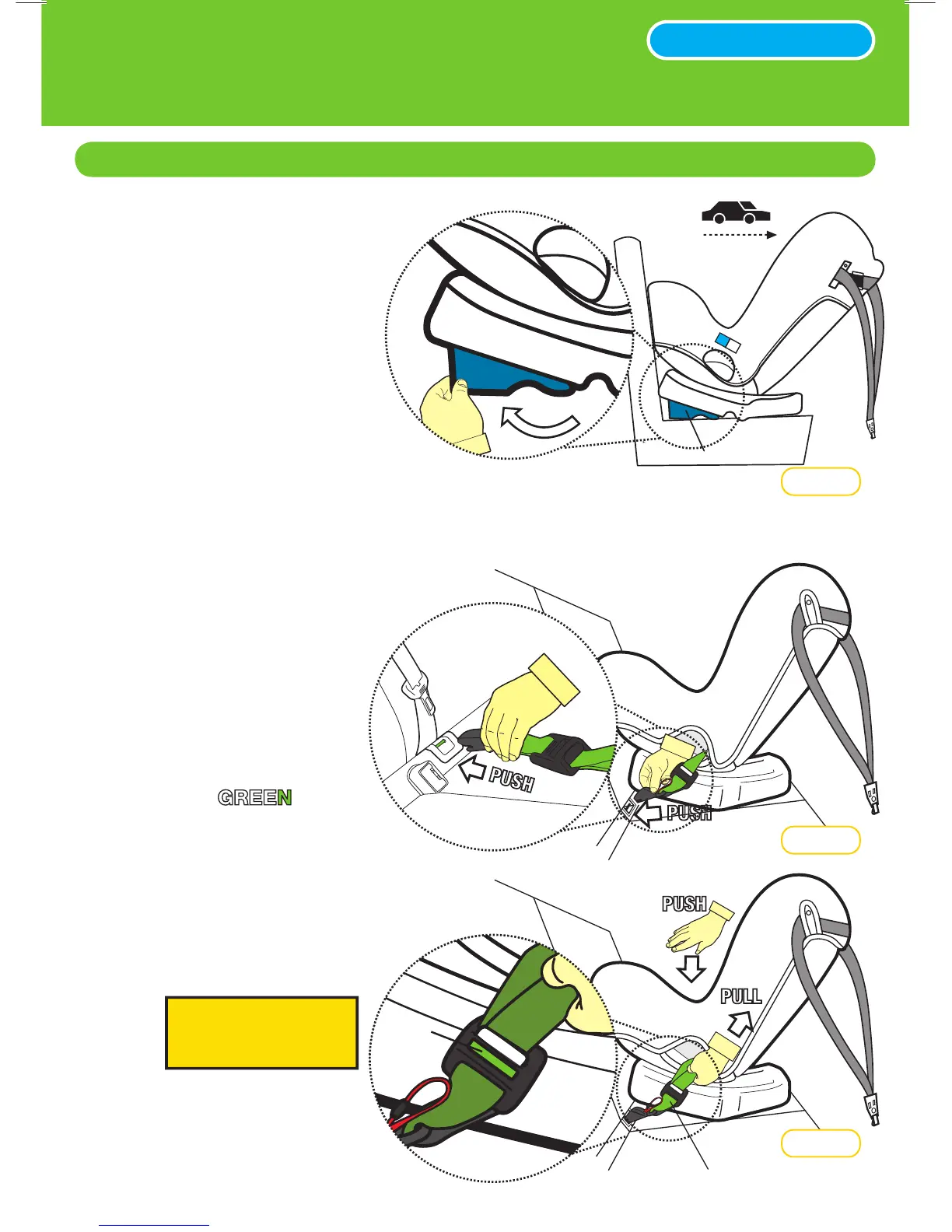

Figure 1
Figure 2
Figure 3
Step 1:
Step 2:
Rearward facing mode
Fully recline the restraint
Swing the Recline
Section forward
(refer Figure 1)
Front of Car
PUSH
Green
Indicator
REMOVE ALL SLACK
FROM LAC STRAP
PUSH
