Infinity S601 Profile - Channels (Basic)

47
Ordercode: 41507
Infinity S601 Profile
37 Channels (Basic)
Channel 1 – Horizontal movement (Pan)
Push the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Pan fine 16 bit
Channel 3 – Vertical movement (Tilt)
Push the slider up, in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 4 – Tilt fine 16 bit
Channel 5 – Master dimmer
0-255
Dimmer intensity, from OFF to full ON
Channel 6 – Shutter/Strobe CH5 must be open
0-3
Closed
4-7
Shutter open
8-76
Strobe flash, from low to high frequency
77-145
Pulse strobe, from low to high frequency
146-215
Random strobe, from low to high frequency
216-255
Shutter open

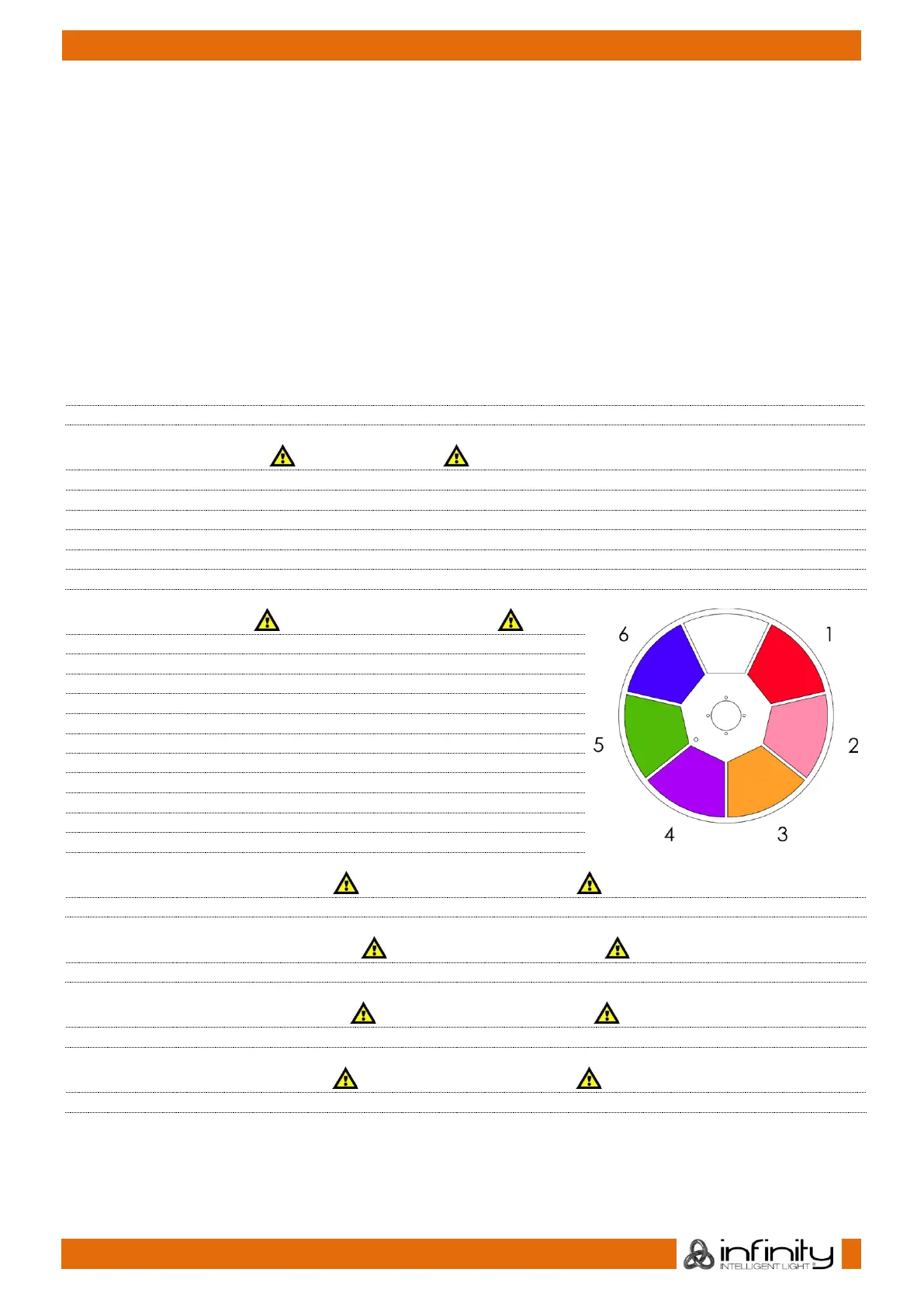

Channel 7 – Color wheel CH5 and CH6 must be open
0-6
White
7-13
Color 1 (Red)
14-20
Color 2 (Light Pink)
21-27
Color 3 (Amber)
28-34
Color 4 (Dark Lavender)
35-41
Color 5 (Primary Green)
42-59
Color 6 (Congo Blue)
60-187
Gradual color adjustment
188-219
Counterclockwise color flow, from fast to slow
220-223
Stop
224-255
Clockwise color flow, from slow to fast
Channel 8 – Cyan Dimmer intensity CH5 and CH6 must be open
0-255
Gradual adjustment Cyan from 0-100%
Channel 9 – Magenta Dimmer intensity CH5 and CH6 must be open
0-255
Gradual adjustment Magenta from 0-100%
Channel 10 – Yellow Dimmer intensity CH5 and CH6 must be open
0-255
Gradual adjustment Yellow from 0-100%
Channel 11 – CTO Dimmer intensity CH5 and CH6 must be open
0-255
Gradual adjustment CTO from 0-100%
