InFocus IN1503 User Manual

10
Adjusting the image
If necessary, adjust the height of the projector by pressing the elevator foot release
button to extend the foot.
If necessary, rotate the leveling foot located at the rear of the projector.
Avoid placing your hands near the hot exhaust vent
at the side of the projector.
Position the projector the desired distance from the
screen at a 90 degree angle to
the screen.
See page 6 for a table listing screen
sizes and distances.
Adjust the zoom or focus.
If the image is not square, first make sure tha
t
the projector is perpendicular to the
screen. If the image is larger or smaller on the top or bottom edge of the screen,
press the top Keystone button to reduce the upper part of the image, and press the
bottom Keystone button to reduce the lower part.
If the left or right side of the screen is lar
ger or smaller
the other, you can turn the
projector to the left or to the right a few degrees to square the image.
Adjust the Contrast or Brightness in the
Basic Picture menu. See page 27 for help
with these menu adjustments.
For Aspect Ratio, keep in mind that DVD players mu
st be configured for 16:9 in
order to view the highest quality image. For more information regarding Aspect
Ratio, see page 11.

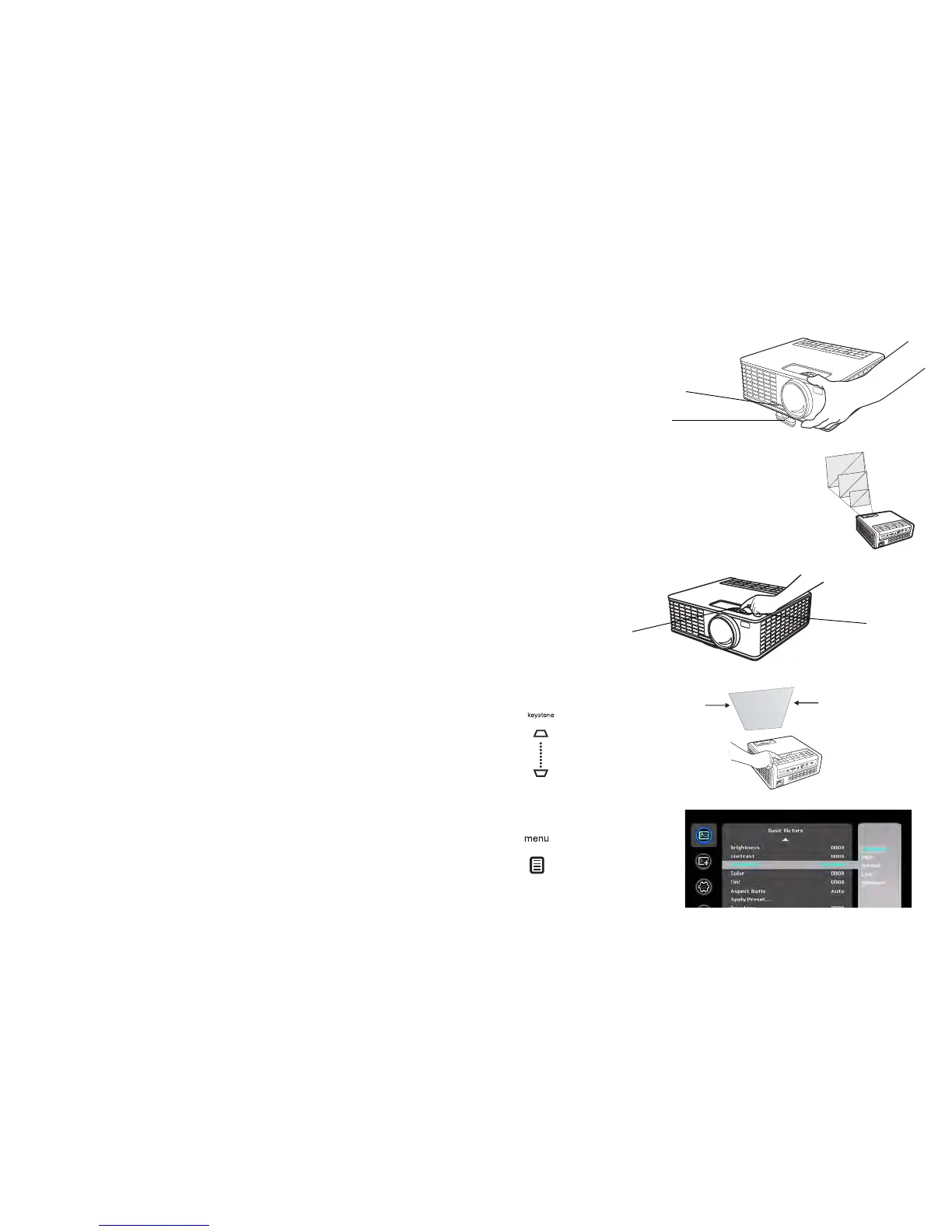

adjust height
release button
elevator
foot
adjust distance
adjust zoom or focus
zoom (rear ring)
focus (front ring)
adjust keystone
adjust Basic Picture menu

InFocus IN1503 Specifications

General

Matrix size	0.65 \
Native aspect ratio	16:10
Projection distance	0.76/3.51 m
Projection technology	DLP
Supported aspect ratios	4:3, 5:4, 16:9, 16:10
Contrast ratio (typical)	1800:1
Screen size compatibility	- \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-30/30 °
RS-232 ports	0
Focus	Manual
Offset	105 %
Throw ratio	0.72 - 0.86:1
Focal length range	- mm
Lamp power	165 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
RMS rated power	1 W
Number of built-in speakers	1
Audio (L/R) in	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	29 dB
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	170 W
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Product color	Black

Weight and Dimensions

Depth	222 mm
Width	235 mm
Height	83.8 mm
Weight	2000 g
Package weight	4300 g
