InFocus IN1503 User Manual

6
Positioning the projector
To determine where to position the projector, consider the size and shape of your
screen, the location of your power outlets, and the distance between the projector
and the rest of your equipment. Here are some general guidelines:
• Position the projector on a flat surface at a right angle to the screen. The
projector must be at least 4.9 feet (1.5m) from the projection screen.
• Position the projector within 10 feet (3m)
of y
our power source and within 6
feet (1.8m) of your video device (unless you purchase extension cables). To
ensure adequate cable access, do not place the projector within 6 inches (.15m)
of a wall or other object.
• If you are installing the projector on the ceiling, we strongly recommend using
InFocus approved ceiling mounts for proper fitting, ventilation and
installation. Refer to the installation guide that comes with the InFocus Ceiling
Mount Kit (p/n SP-CEIL-UNIV) for more information. The warranty does not
cover any damage caused by use of non-approved ceiling mount kits or by
installing in an improper locationTo turn the image upside down, see “Ceiling
mount” on page 31. We recommend using an InFocus authorized ceiling
mount.
• Position the projector the desired distance from the screen. The distance from
the lens of the projector to the screen, the zoom setting, and the video format
determine the size of the projected image.

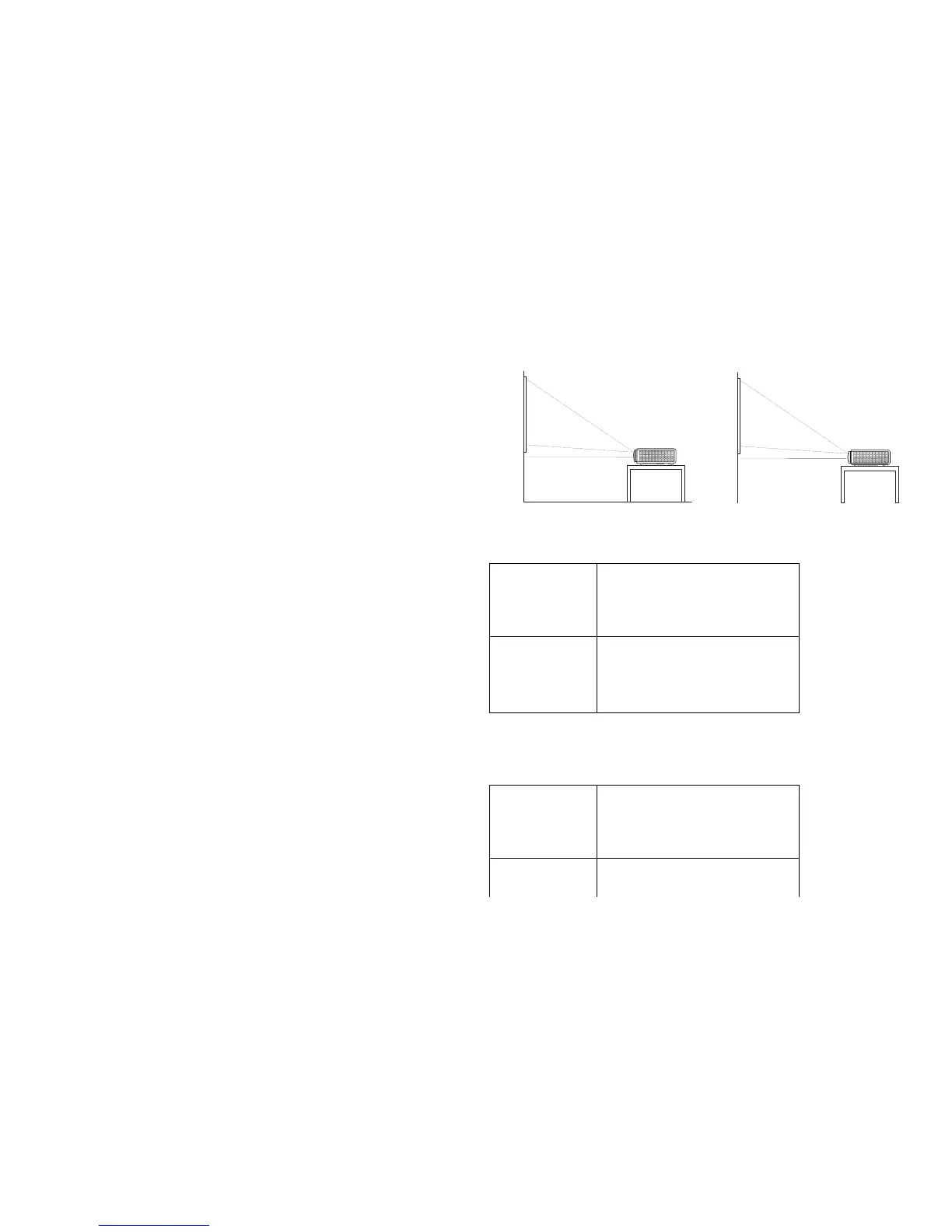

• The image exits the projector at a given angle. IN150
1 image offset is 120% +/
-5% ; IN1503 image offset is 105% +/-5%. This means that if you have an
image 10’ high, the bottom of the image will be 1.2' (IN1501) and 1.05'
(IN1503) above the center of the lens.
(IN1503)
(IN1501)
10 ft high
10 ft high
bottom of image 1.2
ft above center of
lens
Projection angle
lens center
bottom of image
1.05 ft above center
of lens
Projection angle
lens center
Table 1: (IN1501)
Range of distance to the screen for a given screen size
Diagonal Screen
Size (inches/m)
Distance to screen
Minimum
distance (in
ches/
m)
Maximum
Distance
(inches/m)
60/1.5 43/1.1 52/1.3
80/2.0 57/1.5 69/1.7
90/2.3 64/1.6 77/2.0
150/3.8 107/2.7 129/3.3
Table 2: (IN1503)
Range
of dist
ance to the screen for a given screen size
Diagonal Screen
Size (inches/m)
Distance to screen
Minimum
distance (in
ches/
m)
Maximum
Distance
(inches/m)
60/1.5 37/0.9 44/1.1
80/2.0 49/1.2 59/1.5

InFocus IN1503 Specifications

General

Matrix size	0.65 \
Native aspect ratio	16:10
Projection distance	0.76/3.51 m
Projection technology	DLP
Supported aspect ratios	4:3, 5:4, 16:9, 16:10
Contrast ratio (typical)	1800:1
Screen size compatibility	- \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-30/30 °
RS-232 ports	0
Focus	Manual
Offset	105 %
Throw ratio	0.72 - 0.86:1
Focal length range	- mm
Lamp power	165 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
RMS rated power	1 W
Number of built-in speakers	1
Audio (L/R) in	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	29 dB
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	170 W
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Product color	Black

Weight and Dimensions

Depth	222 mm
Width	235 mm
Height	83.8 mm
Weight	2000 g
Package weight	4300 g
