Setting up the LitePro 580
8 LitePro 580 User’s Guide
Positioning the projector
The distance from the LitePro 580 to the screen determines the size of
the projected image. Use of the LitePro’s X1.4 zoom lens also affects
screen size. The table below indicates the size of the screen image
when using the maximum or minimum zoom at various distances.
Connections to the projector
The connection ports of the LitePro 580 are located on the right side of
the projector, just below the handle. Push lightly on the panel labeled
“Push” to reveal them. Cables from your computer or video source as
well as cables to speakers, control devices, and low voltage powered
equipment connect to the projector here.
Approximate size of image determined by distance of the projector to the screen
Distance to screen
in ft. (m) 4(1.2) 8 (2.5)
12 (4)
19 (6) 27 (8) 40 (12)
Diagonal image size
in ft. (m) with
maximum zoom
2.5 (1) 5 (1.5) 8 (2.5) 12 (3.5) 17 (5) 25 (7)
Diagonal image size
in ft. (m) with
minimum zoom
2 (.5) 3 (1) 6 (2) 8 (2.5) 12(3.5) 18 (5.5)

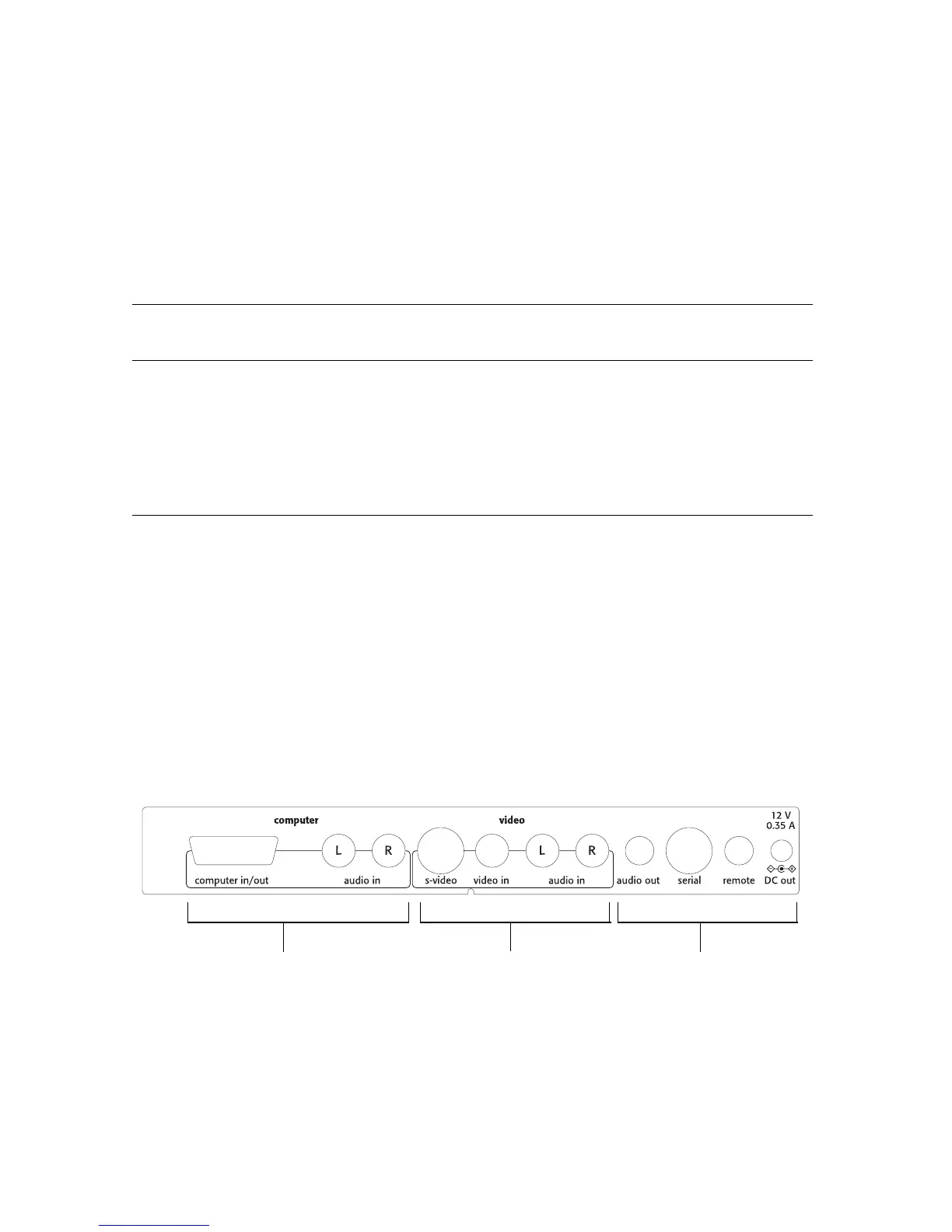

Computer Video equipment
Speaker, control device,
power output portsinput ports input ports
