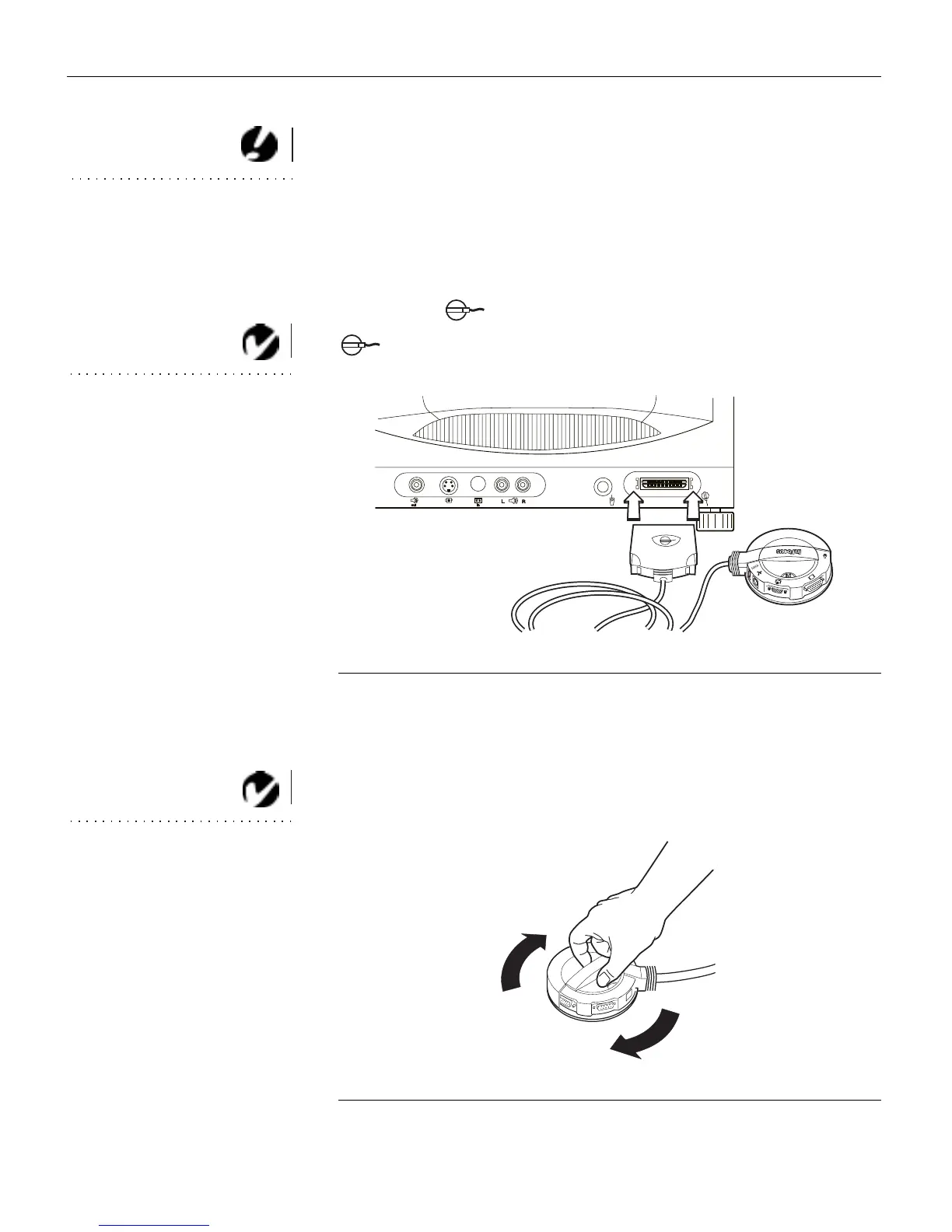

Setting up the Projector

Connecting the CableWizard™II to the Projector

CAUTION: Turn off the

computer, monitor and projector

whenever you connect or

disconnect cables.

The CableWizard II (referred to as “CableWizard” in this manual

for brevity) simplifies the connection process by providing a cen-

tral hub for all the connections between the projector and your

computer. The connectors on the CableWizard are labeled with

icons.

Connect the end of the CableWizard cable to the

connector on the projector’s connector panel (Figure 5).

NOTE: The projectors are

optimized for use with

CableWizard II. If you have

CableWizards from other models

of In Focus projectors, we do not

recommend using them. Image

quality is reduced by using a

CableWizard other than

CableWizard II. The label on the

bottom reads CableWizard or

CableWizard II.

IGURE 5

Connecting the CableWizard to the projector

Selecting Connectors on the CableWizard

Turn the selector on the top of the CableWizard to reveal the

correct connectors for your computer.

NOTE: You must disconnect all

cables before turning the selector

on the CableWizard.

IGURE 6

Selecting connectors on the CableWizard
