Adjusting the Projector
To focus the image, rotate the focus ring (Figure 22) until the
image is clear. To zoom the image, rotate the zoom ring. This
adjusts the image size without affecting focus.

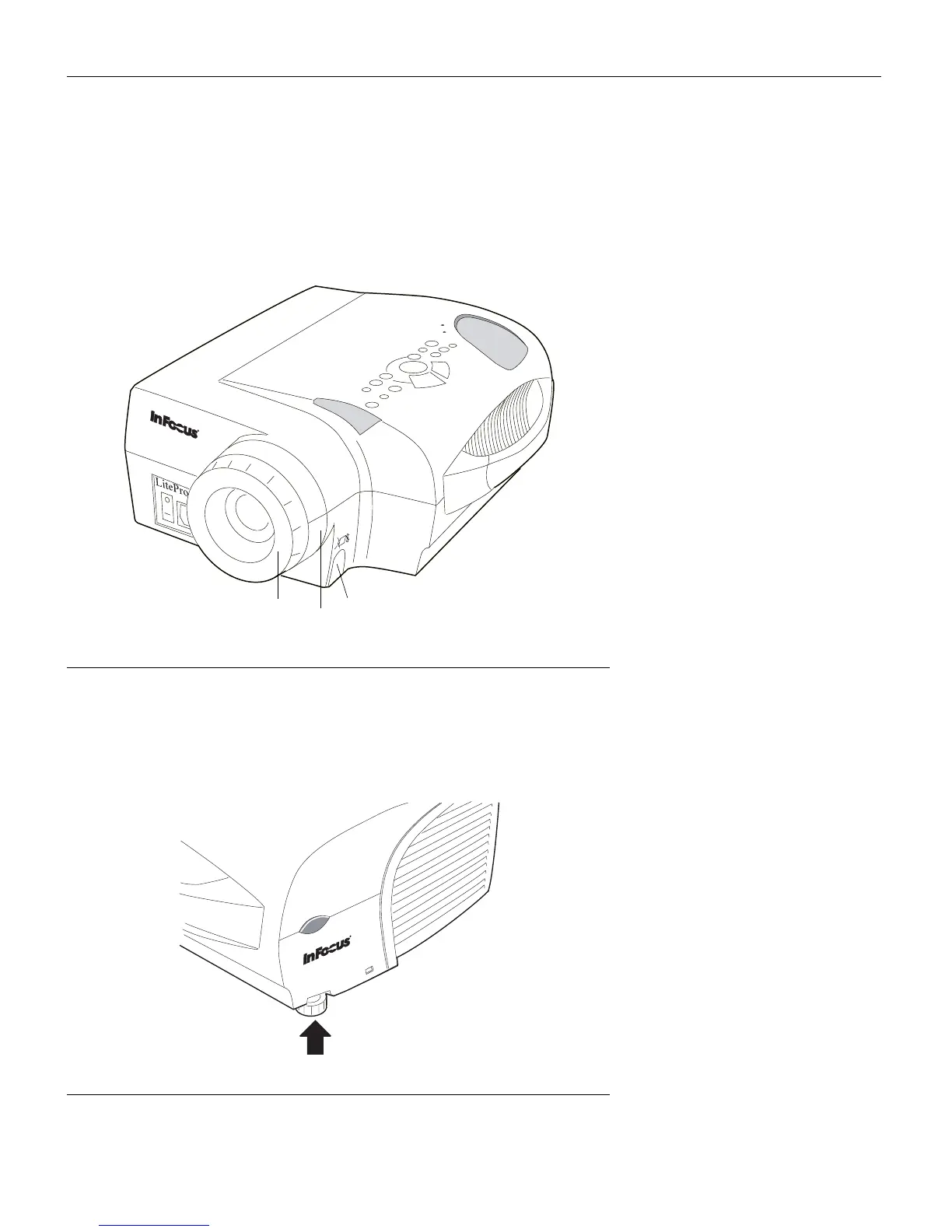

FIGURE 22
Focus ring, zoom ring, and elevator button
The projector is equipped with a self-locking, quick-release eleva-
tor foot and button (Figure 24) and a leveling knob (Figure 23).
FIGURE 23
Leveling knob
focus ring
zoom ring
elevator button
