8

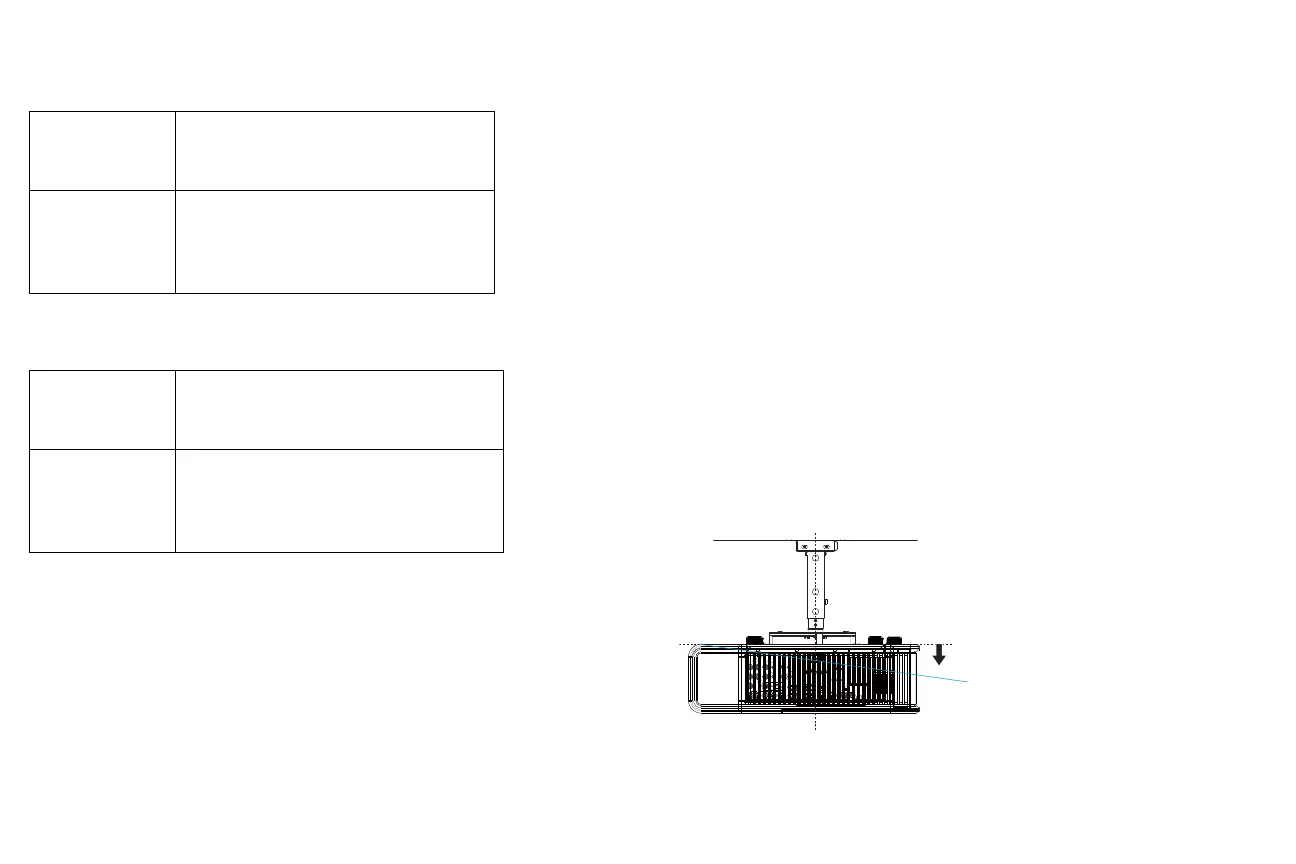

Ceiling Mount
If you wish to install the projector on the ceiling:
• The projector must be installed by a qualified professional in order to
ensure proper operation and reduce the risk of hazards or injury. It is
not recommended you install the projector yourself.
• We strongly recommend using InFocus approved ceiling mounts for
proper fitting, ventilation and installation. Refer to the installation
guide that comes with the InFocus Ceiling Mount Kit (p/n SP-CEIL-
INSTALL) for more information. The warranty does not cover any
damage caused by use of non-approved ceiling mount kits or by
installing in an improper location.
• The ceiling must be strong enough to support the projector and the
i
nstallation must be in accordance with any local building codes. Con-
sult your dealer for more information.
• Maximum supported physical pitch is +/-8º.
• Maximum supported physical horizontal roll
is +/-8º.
• Keep all adjacent surfaces 3” (76mm)
from sides, front and rear and
.87” (22mm) from the bottom of projector to preserve required airflow
around the projector.
Table 1: IN5302 (XGA)
Range of distance to the screen for a given screen size
Diagonal Screen
Size (inches/m)
Distance to screen
Minimum distance
(feet/m)
Maximum Distance
(feet/m)
60/1.524 6.43/1.96 10.63/3.24
80/2.032 8.63/2.63 14.21/4.33
90/2.286 9.71/2.96 16.01/4.88
150/3.810 16.34/4.98 26.77/8.16
Table 2: IN5304 (WXGA)
Range of distance to the screen for a given screen size
Diagonal Screen
Size (inches/m)
Distance to screen
Minimum distance
(feet/m)
Maximum Distance
(feet/m)
60/1.524 6.66/2.03 10.20/3.11
80/2.032 8.92/2.72 13.71/4.18
90/2.286 10.07/3.07 15.45/4.71
150/3.810 16.93/5.16 25.85/7.88
screen trigger
12V DC
250 mA
wireless
ready
audio 5
video 5 video 4
video 3
remote
computer 4
computer 2
computer 3
L
R
VH
B G
R
YPbPr
R
R
L
L
audio 4 audio 3
audio 2
audio 1
LitePort
computer 1
DisplayLink
audio out
IR
serial
monitor out
LAN
+5V DC; 2A
DisplayLink
TM
certified
8º
