InFocus X1a User Manual

37

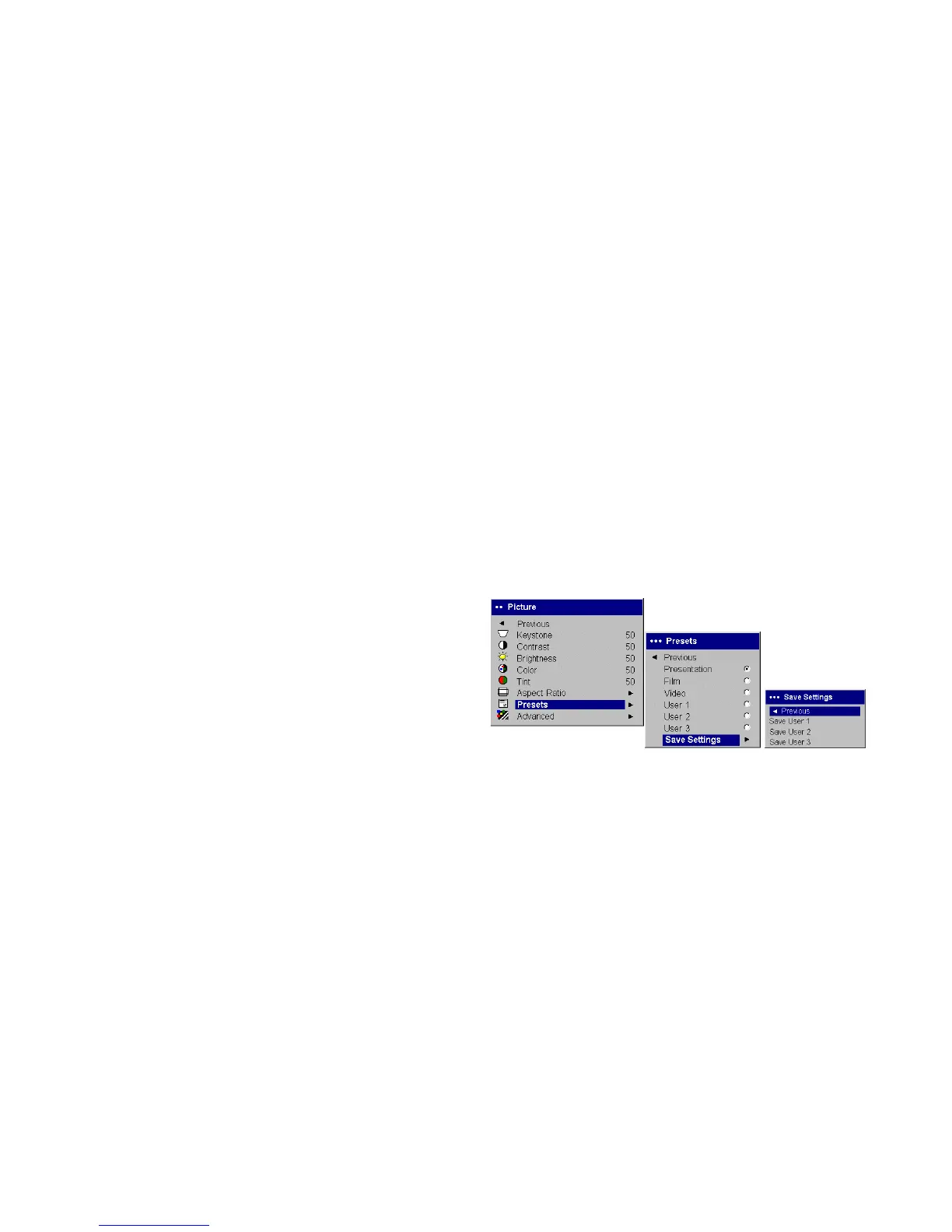

Presets: Presets are provided that optimize the projector for displaying
computer presentations, photographs, film images, and video images. Film
input is material originally captured on a film camera, like a movie; video
input is material originally captured on a video camera, like a TV show or
sporting event. You can use the preset as a starting point, then further cus-
tomize the settings for each source. The settings you customize are saved in
the preset for each source. To restore the factory default settings, choose Fac-
tory Reset in the Settings>Service menu (page 41).
There is also a user-definable preset. To set a preset for the current source,
adjust the image, select Save User in the Presets menu, then select Yes. You
can recall these settings in the future by selecting the User 1 preset.
Presets
Save
User
Settings

InFocus X1a Specifications

General

Number of colors	16.78 million colors
Vertical scan range	50 - 85 Hz
Horizontal scan range	31.5 - 80 kHz
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	2.7' - 21.6' \
Projector native resolution	SVGA (800x600)
Lamp type	SHP
Lamp power	150 W
Light source type	Lamp
Service life of light source	4000 h
I/O ports	VGA 15-pin HDDSUB S-Video 4-pin mini DIN & RCA
Aspect ratio	4:3
Power supply type	100~240V @ 50-60Hz
Dimensions (WxDxH)	249 x 327 x 106 mm
Full HD	Yes
Noise level	37 dB
Certification	UL, c-UL, TUV GS, CE, GOST, C-Tick, NOM, IRAM, FCC B, CISPR22 /EN55022, EN 55024
Power consumption (typical)	200 W
Operating temperature (T-T)	5 - 40 °C

Weight and Dimensions

Weight	3100 g
