Positioning the projector
To determine where to position the projector, consider the size and shape of
your screen, the location of your power outlets, and the distance between
the projector and the rest of your equipment. Here are some general guide-
lines:
• Position the projector on a flat surface at a right angle to the screen. The
projector must be at least 4.9 feet (1.49m) from the projection screen.
• Position the projector within 10 feet (3m) of your power source and
within 6 feet (1.8m) of your video device (unless you purchase exten-
sion cables). To ensure adequate cable access, do not place the projector
within 6 inches (.15m) of a wall or other object.
• If you are installing the projector on the ceiling, refer to the installation
guide that comes with the Ceiling Mount Kit for more information. To
turn the image upside down, see “Ceiling” on page 39. We recommend
using an authorized ceiling mount.
• Position the projector the desired distance from the screen. The distance
from the lens of the projector to the screen, the zoom setting, and the

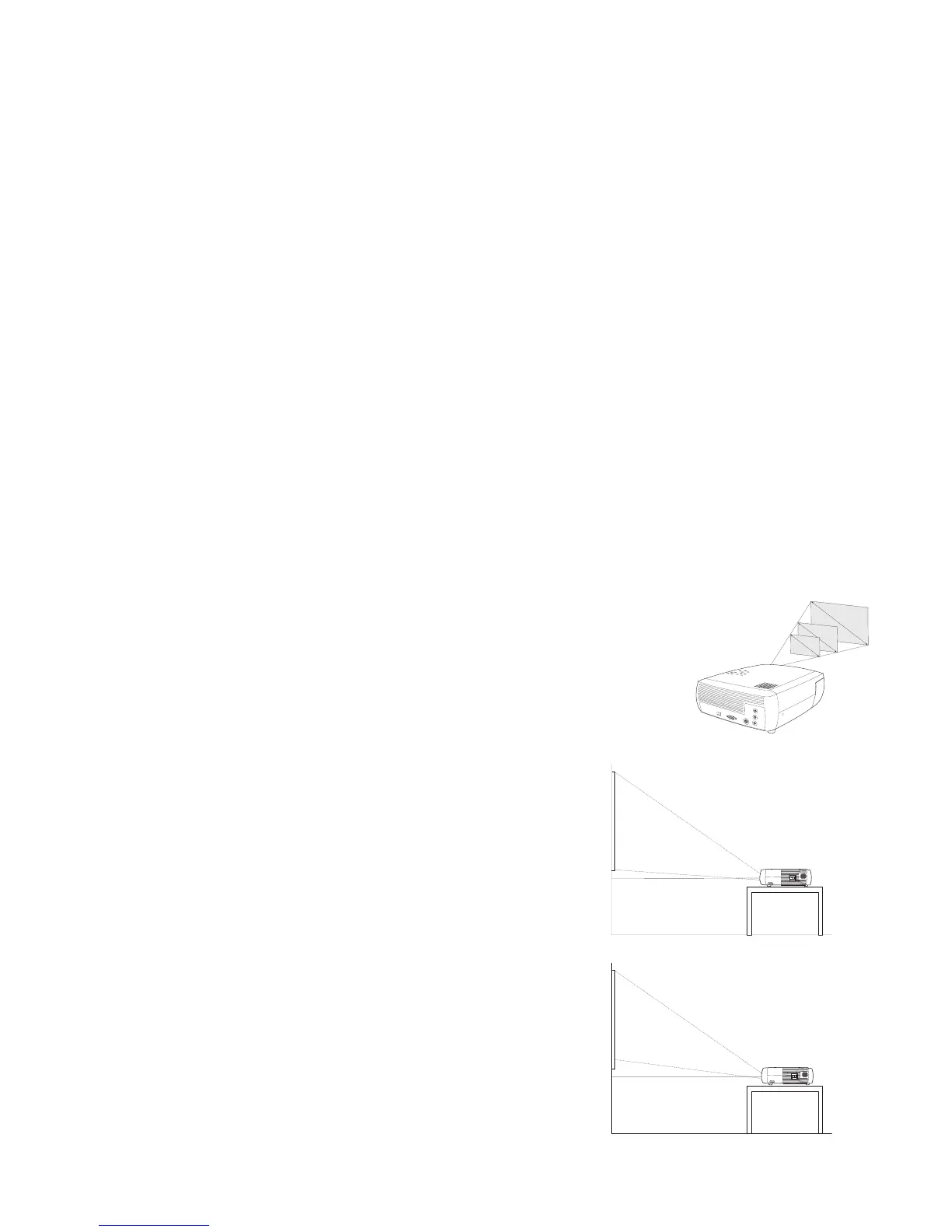

video format determine the size of the projected image. The top illus-
tration to the right shows three projected image sizes. For more infor-
mation about image sizes at different distances, see “Projected Image
Size” on page 45.
• The image exits the projector at a given angle. This image offset is
112.2% when the projector is in 4:3 mode (default mode). This means
that if you have an image 10’ high, the bottom of the image will be 1.22’
above the center of the lens.
• This image offset is 132.9% when the projector is in 16:9 mode. This
means that if you have an image 10’ high, the bottom of the image will
be 3.29’ above the center of the lens.
• See “Connecting a video device” on page 16 for additional information
on 16:9 and 4:3 modes.
3
.
3
f
t
.
1
2
.
5
f
t
.
5
f
t
.
4.8 ft.
7.5 ft.
19 ft.
bottom of image
1.22 ft above center
10 ft high
Projection angle in 4:3 mode (default)
lens center
of lens
bottom of image
3.29 ft above center
10 ft high
Projection angle in 16:9 mode
lens center
of lens

InFocus X1a Specifications

General

Number of colors	16.78 million colors
Vertical scan range	50 - 85 Hz
Horizontal scan range	31.5 - 80 kHz
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	2.7' - 21.6' \
Projector native resolution	SVGA (800x600)
Lamp type	SHP
Lamp power	150 W
Light source type	Lamp
Service life of light source	4000 h
I/O ports	VGA 15-pin HDDSUB S-Video 4-pin mini DIN & RCA
Aspect ratio	4:3
Power supply type	100~240V @ 50-60Hz
Dimensions (WxDxH)	249 x 327 x 106 mm
Full HD	Yes
Noise level	37 dB
Certification	UL, c-UL, TUV GS, CE, GOST, C-Tick, NOM, IRAM, FCC B, CISPR22 /EN55022, EN 55024
Power consumption (typical)	200 W
Operating temperature (T-T)	5 - 40 °C

Weight and Dimensions

Weight	3100 g
