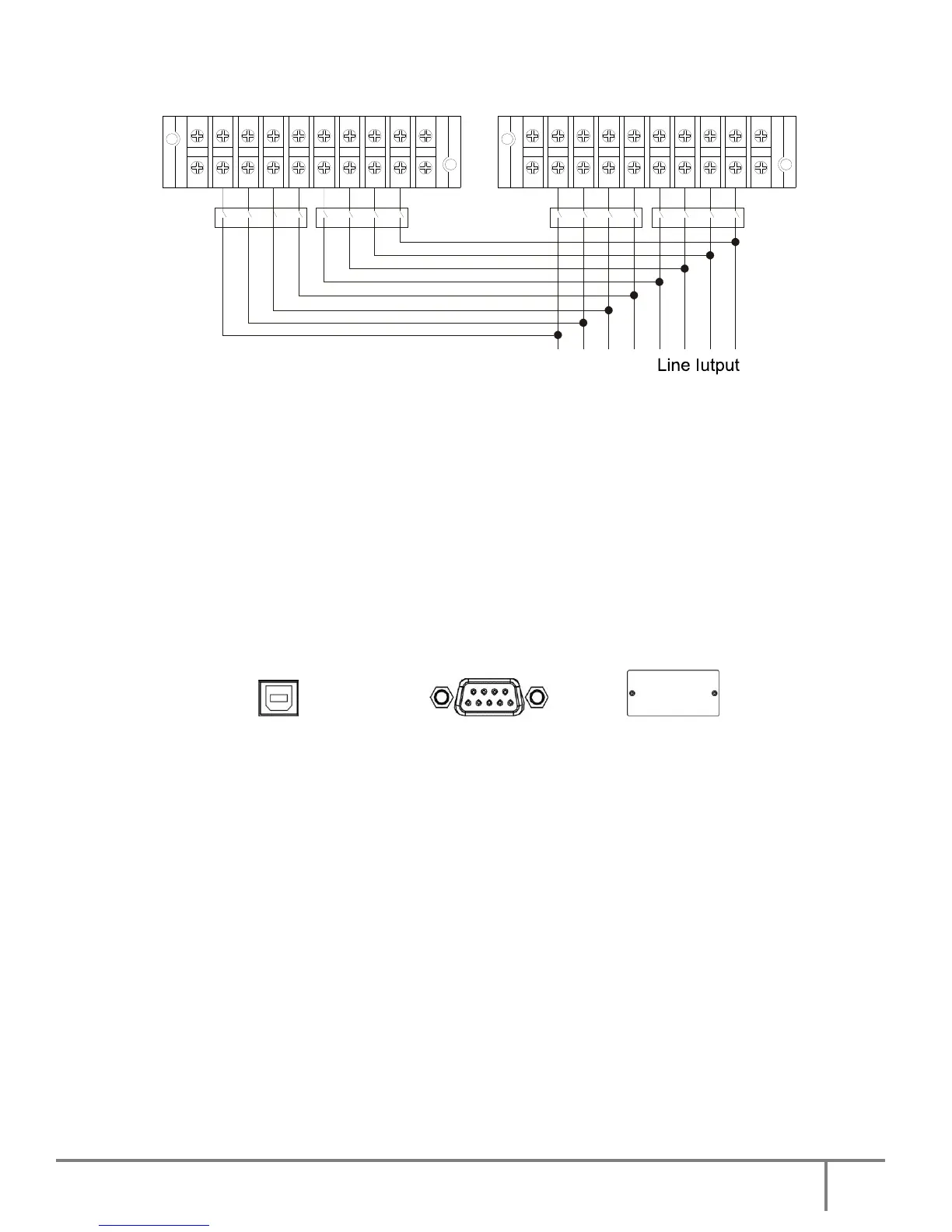

Wiring diagram of parallel system for 30K(S)
2-5. Software Installation
For optimal computer system protection, install UPS monitoring software to fully configure UPS shutdown.
Communication ports:
USB port RS-232 port Intelligent slot
To allow for unattended UPS shutdown/start-up and status monitoring, connect one end of the communication cable
to the USB/RS-232 port and the other to the communication port of your PC. With the monitoring software installed,
you can schedule UPS shutdown/start-up and monitor UPS status on your PC.
The UPS is equipped with an intelligent slot, ideal for either an SNMP or AS400 card. When installing either an SNMP
or AS400 card in the UPS, it will provide advanced communication and monitoring options.
Note: A USB port and RS-232 port cannot work at the same time.
L1 L2
L3
N
L1 L2
L3
N
UPS2
Output
GND GND
L1 L2
L3
N
L1 L2
L3
N
UPS1
GND GND
