2.4.1 Interface connectors

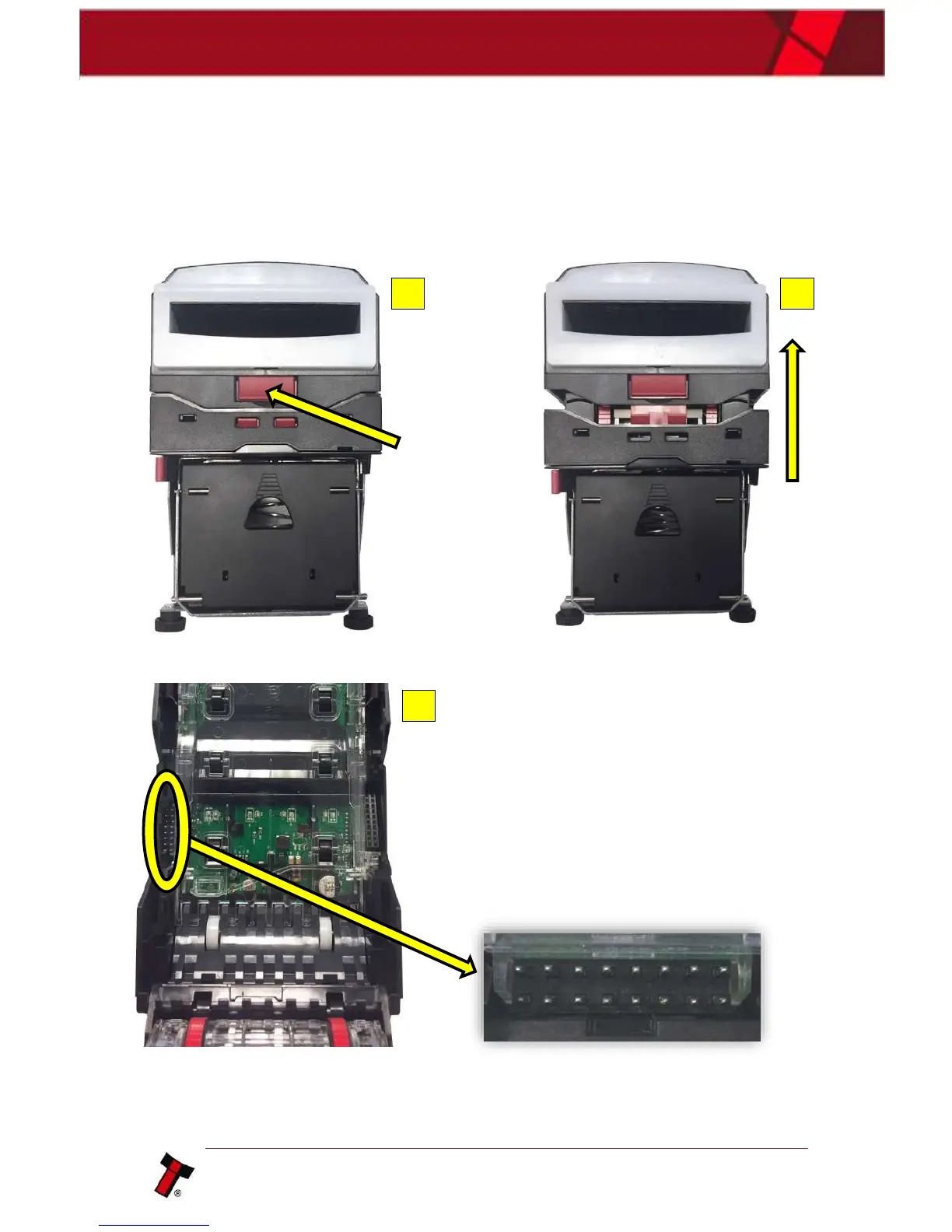

The connector is a 16-pin socket used to interface the NV9 Spectral to the host
machine. The 16-pin socket is hidden within the housing assembly, the housing
assembly will need to be opened before accessing the socket. The initial step will be
to push the release catch and thereafter to lift the top half of the housing assembly
in the upward direction.
Push Release
catch
Once the top half of the housing assembly is
lifted, the 16-pin connector socket can be seen
on the left-hand side when looking at the open
view.
Lift up
1
2
3
15
1
2
16
