NV9 Spectral Quick Start Guide
<< Back to Contents
Copyright © Innovative Technology Ltd 2018 Doc:PA02093
Version: 1
Page 8 of 26
The pin numbering of the socket is shown below:
Power is always required on pins 15
and 16 of the 16-way connector.

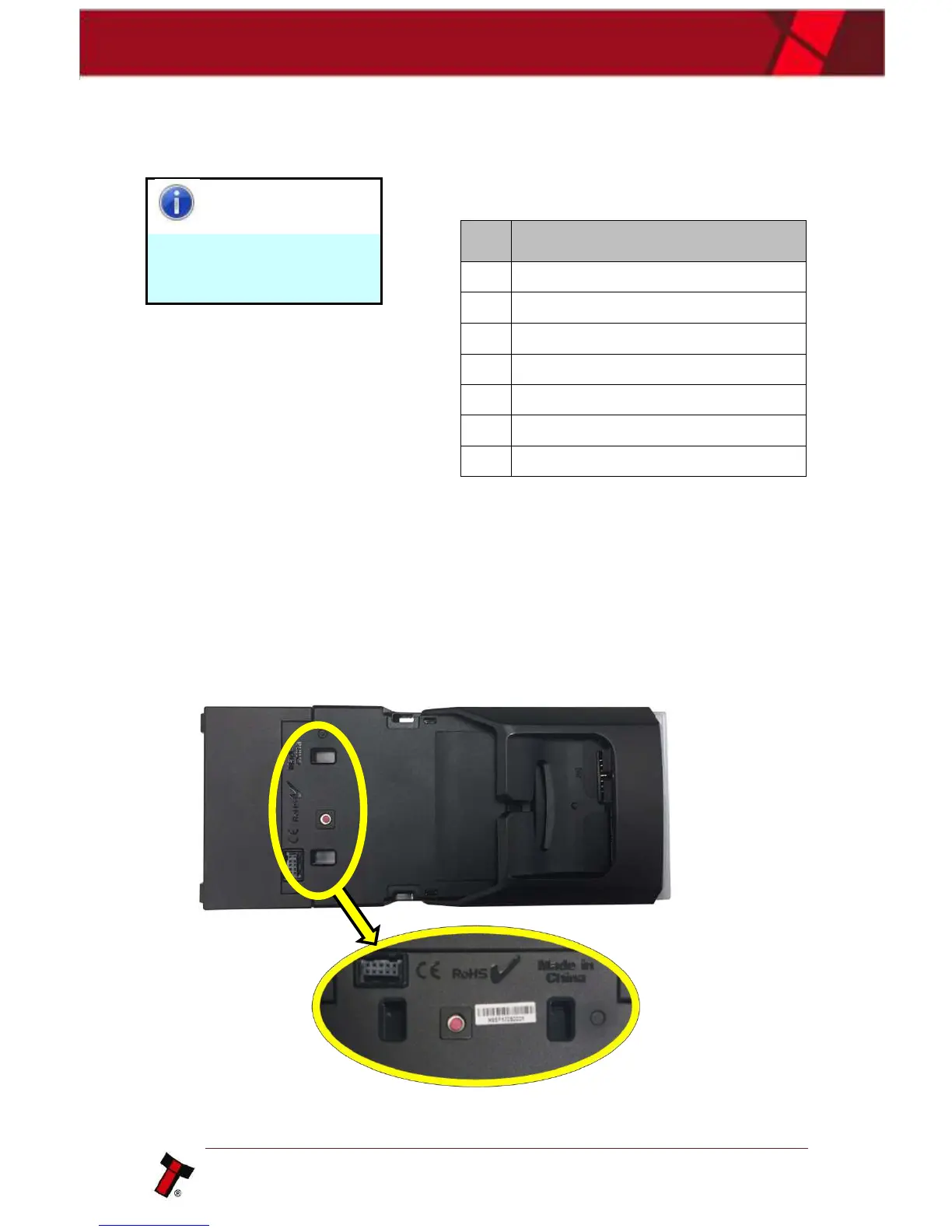

2.5 Configuration and Fault Codes
The configuration button has multiple functions please see section 2.5.1. The
common function of the configuration button is to switch the protocol to SSP or
otherwise known as programming mode.
Information
Power is required
regardless of connection
type.
Pin
Description
1
Serial Data Out (Tx)
5
Serial Data In (Rx)
11
USB Data +
12
USB Data -
13
USB Power (+5V)
15
+ V
16
0V / Ground Connection
