Inovance MD210 Series User Manual

Page 4 of 43

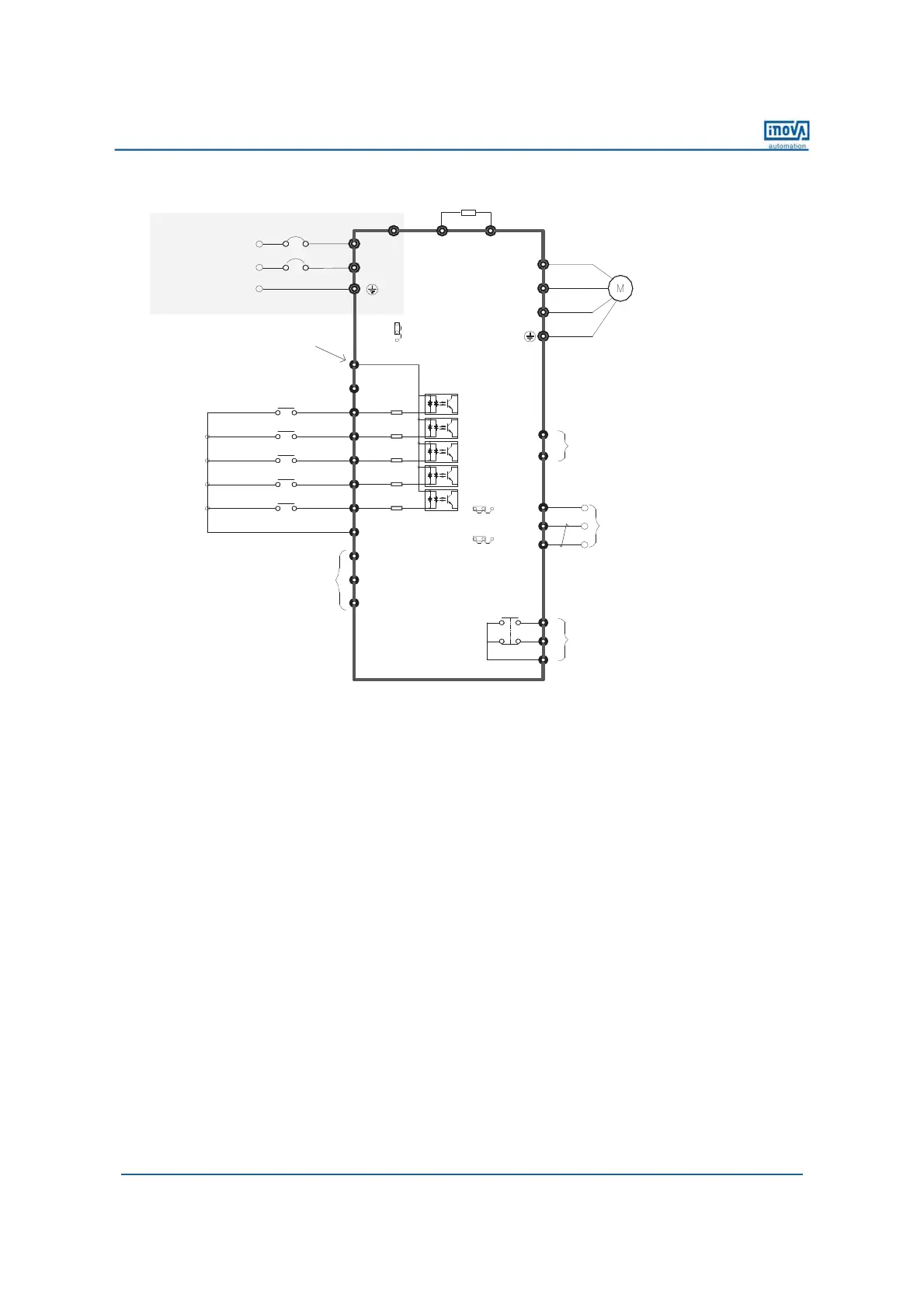

9 Wiring of Single-phase 220 VAC Power Supply
DI1
DI2
DI3
DI4
DI5
COM
L1
L2
W
V
U
( - )
P(+)
BR
Braking resistor (optional)
+24V
OP
MD210
T/C
T/B
T/A
Multi-function relay output
(Fault output)
+10V
AI1
GND
GND
AO1
Analog output
(Running frequency)
MCCB
+24V
COM
J3
J4
NC
GND
485-
485+
R485
Analog input
(Frequency source)
RS485
FWD
Multi-reference terminal 2
FJOG
RESET
Multi-reference terminal 1
Power supply
Single-phase 220V
50/60 Hz
J12
NC
R485
OP is connected to +24V in default,
please pay attention to jumper J3
