6. Description of Parameters
- 168 -
6
6.8.2 Fixed Length Control
7KHGULYHKDVWKH¿[HGOHQJWKFRQWUROIXQFWLRQ7KHOHQJWKSXOVHVFDQRQO\EHVDPSOHGE\',
Set DI5 for function 27 "Length signal pulses count".
Function Code Parameter Name Setting Range Default
Fb-05
Set length 0 to 65535 m 1000 m
Fb-06
Actual length 0 to 65535 m 0 m
Fb-07
Number of pulses per
meter
0.1 to 6553.5 100.0
,QWKHIROORZLQJ¿JXUHDFWXDOOHQJWKLVDPRQLWRUHGYDOXH
Actual length (Fb-06) = Number of pulses sampled by DI is divided by Fb-07 (Number of pulses
each meter).
When actual length reaches the value set in Fb-05, digital output terminal set for function 10
“Length reached” becomes on. Length reset can be implemented via DI terminal set for function
28 "Length reset".

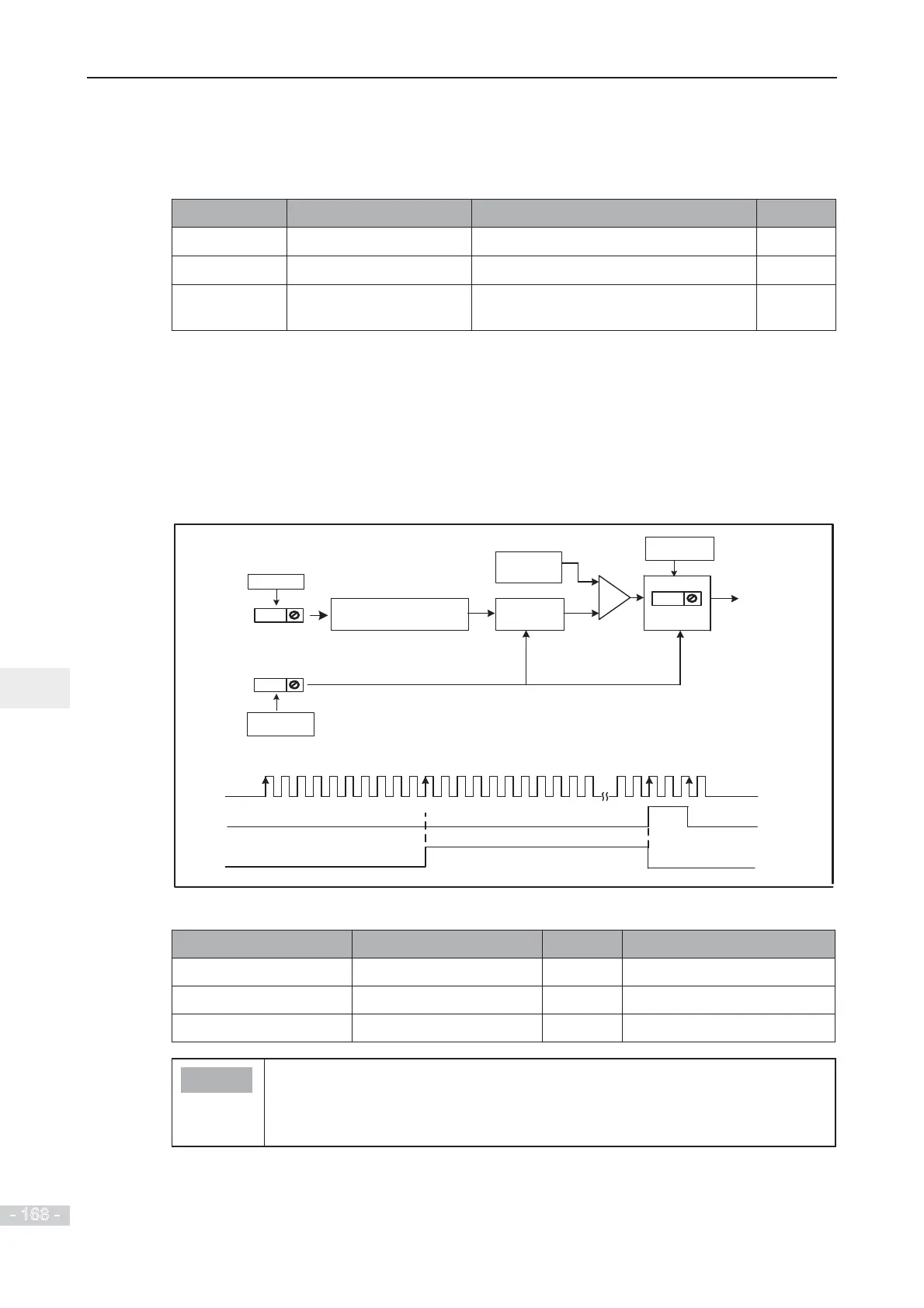

Figure 6-48 Fixed length control
DI5
DIx
Allocate DI5 with the length
signal pulses counting function.
F4-04 = 27
Any of F4-04
to F4-09 =
28
Allocate DIx with the
length reset function.
=
Fb-06
Actual length
Fb-05
Set length
Clear to 0

Compare
DO
Any of F5-00
to F5-05 = 10
Reset
Allocate DO with the
length reached function.
DO outputs the length
reached signal.
Length reset input
Length reached output
Length pulses input
1 2 3 10 11 12
1 2
Fb-06 = 0
Fb-06 = 11
Fb-05 = 11
U0-13 = 0
Number of sampled pulses / Fb-
07 (Number of pulses per meter)
6HWWLQJVRIUHODWHGIXQFWLRQSDUDPHWHUVLQWKHSUHFHGLQJ¿JXUHDUHDVIROORZV
Function Code Parameter Name Setting Description
F4-04 DI5 function selection 27 Length pulses counting input
Any of F4-00 to F4-09 DIx function selection 28 Length reset
Any of F5-00 to F5-05 DOx function selection 10 Length reached
Note
Ɣ
Only length can be calculated according the number of pulses but rotation
GLUHFWLRQZLOOQRWEHREWDLQHGLQ¿[HGOHQJWKFRQWURO
Ɣ
An automatic stop system can be implementing by connecting output length
reached signal of relay to the stop input terminal.
