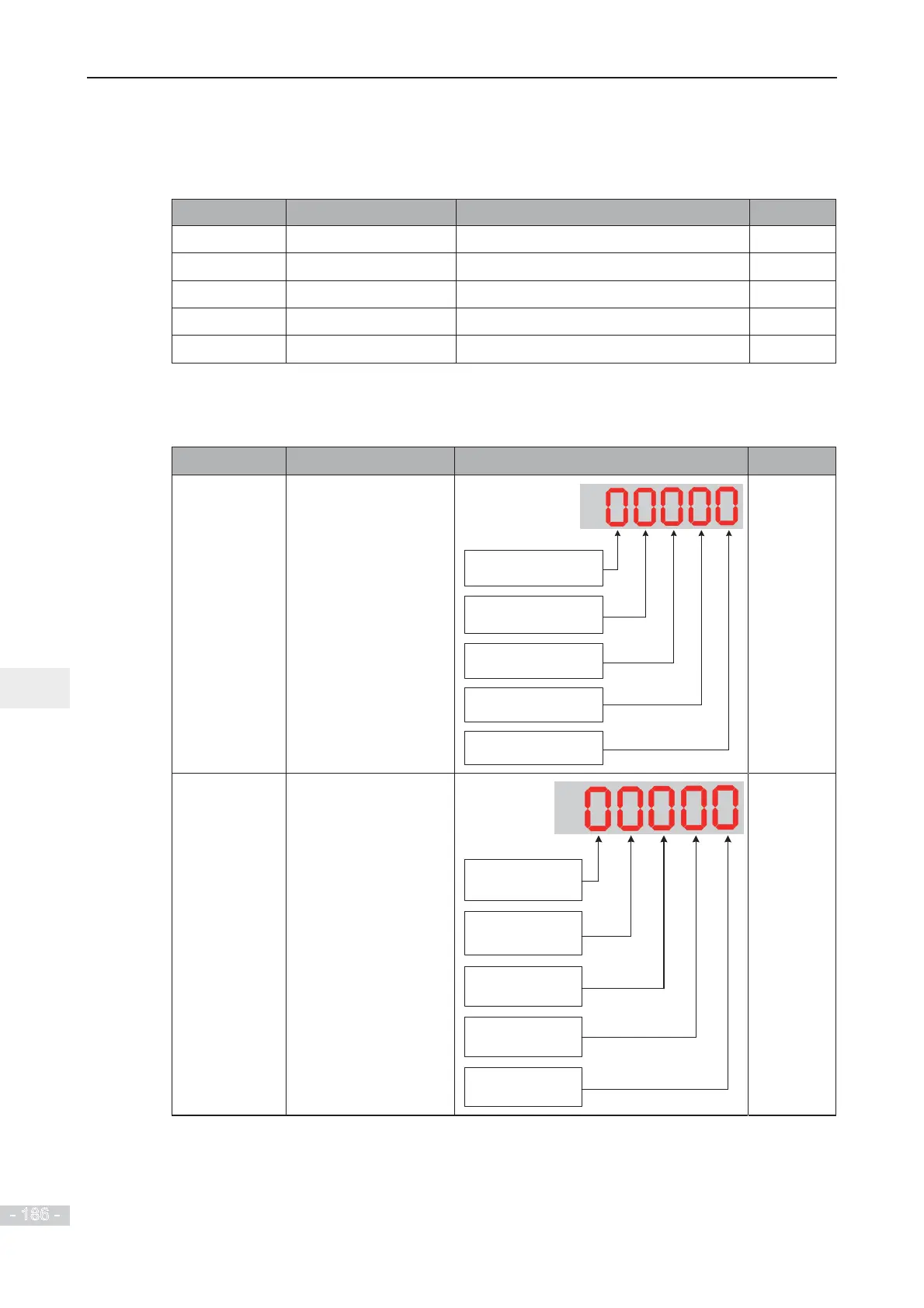

6.9.3 Function of VDI Terminals
VDI terminals have the same functions as DI terminals do. They can be used for multi-functional
digital inputs.
Function Code Parameter Name Setting Range Default
A1-00
VDI1 function selection
0 to 59
0
A1-01
VDI2 function selection
0 to 59
0
A1-02
VDI3 function selection
0 to 59
0
A1-03
VDI4 function selection
0 to 59
0
A1-04
VDI5 function selection
0 to 59
0
7KHVHIXQFWLRQSDUDPHWHUVVHWIXQFWLRQWRWKH¿YHYLUWXDO',WHUPLQDOV9',WR9'ZKLFKKDYH
the same digital input functions (0 to 59) as ten DI terminals do. For more details, see description
of
F
4
-
0
0
to
F
4
-
0
9
.
Function Code Parameter Name Setting Range Default
A1-05
VDI active state setting
mode
VDI2:
0: Decided by state of VDOx
1: Decided by A1-06
VDI1:
0: Decided by state of VDOx
1: Decided by A1-06
VDI3:
0: Decided by state of VDOx
1: Decided by A1-06
VDI5:
0: Decided by state of VDOx
1: Decided by A1-06
VDI4:
0: Decided by state of VDOx
1: Decided by A1-06
00000
A1-06
Selection of VDI active
state
VDI2:
0: Inactive
1: Active
VDI1:
0: Inactive
1: Active
VDI3:
0: Inactive
1: Active
VDI5:
0: Inactive
1: Active
VDI4:
0: Inactive
1: Active
00000
